Ignition Coil Replacement

REMOVAL

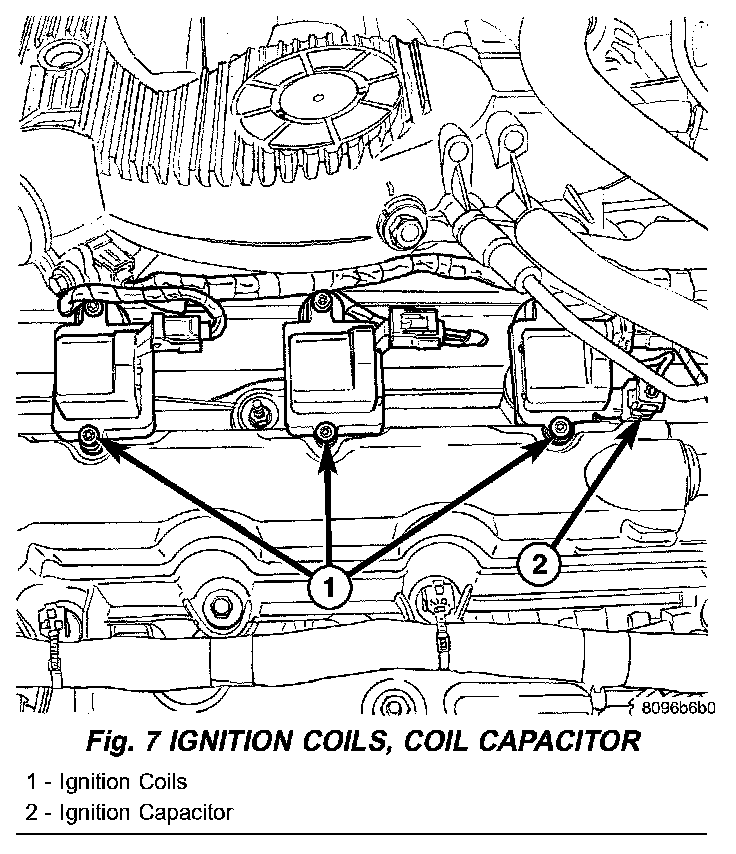

Fig.7 Ignition Coils, Coil Capacitor:

1. Prior to removing the ignition coils, spray compressed air around the coil area and spark plug.
2. Remove electrical connector from ignition coil.
3. Remove 2 fasteners from ignition coil assembly.

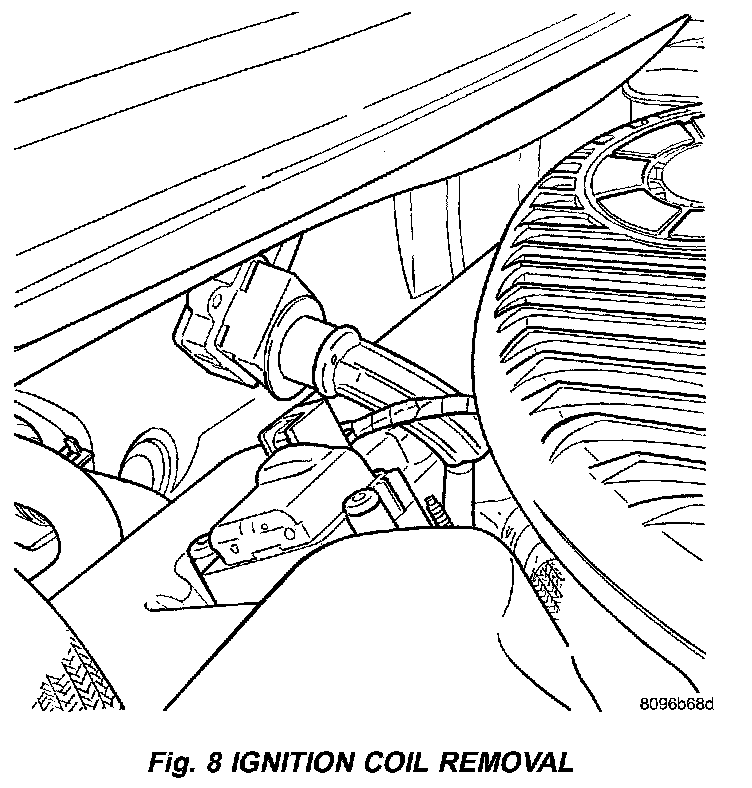

Fig.8 Ignition Coil Removal:

4. Remove ignition coil assembly.

INSTALLATION
1. Install ignition coil assembly for spark plug.
2. Install coil screws and tighten to 6.2 Nm (55 in lbs).
3. Connect the electrical connector.
