Leak Detection Pump: Service and Repair

REMOVAL
1. Disconnect the negative battery cable.

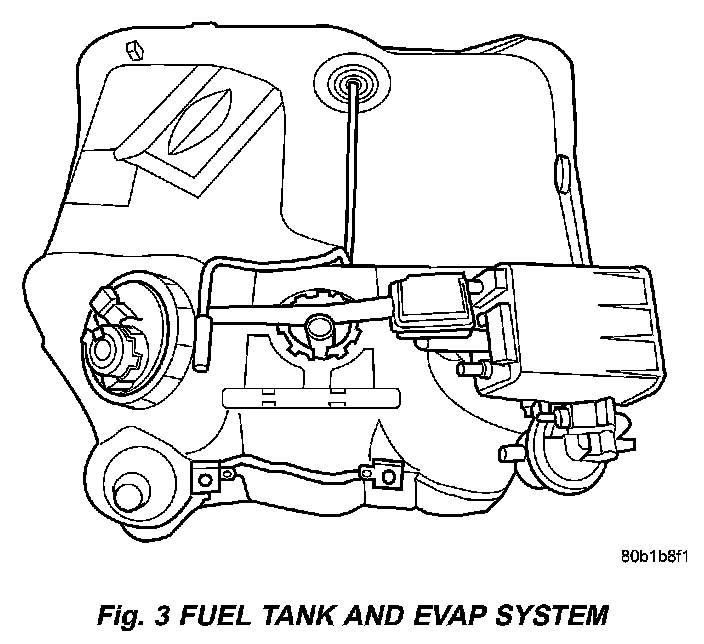

Fig.3 Fuel Tank And EVAP System:

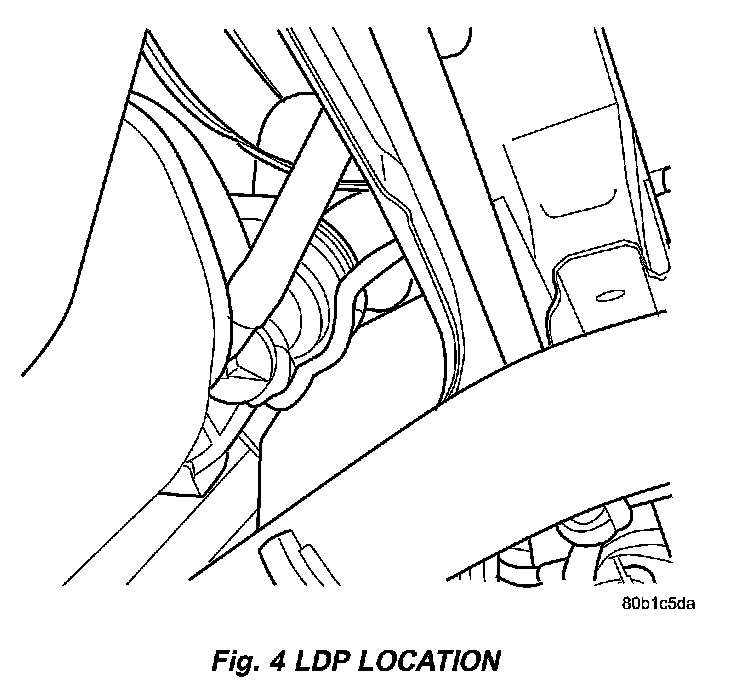

Fig.4 LDP Location:

2. Remove fuel tank.
3. Disconnect the hoses from the EVAP canister.
4. Remove LDP from EVAP canister.

INSTALLATION
1. Install LDP to EVAP Canister.
2. Connect hoses.
3. Install fuel tank.
4. Connect negative battery cable.
