Evaporative Emission Control Canister: Service and Repair

REMOVAL
1. Disconnect the negative battery cable.

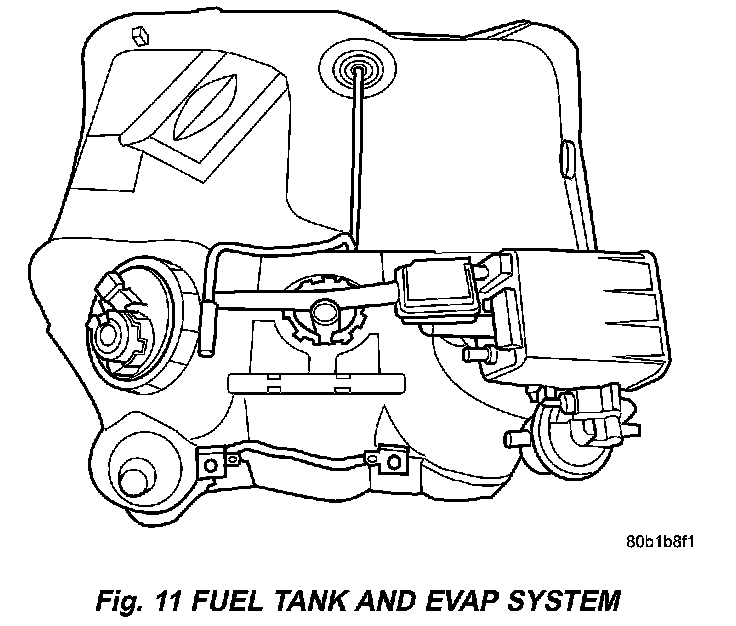

Fig.11 Fuel Tank And EVAP System:

2. Remove fuel tank.
3. Remove the LDP Pump from the EVAP canister.
4. Disconnect the hoses from the EVAP canister.

Fig.13 EVAP Canister Pins:

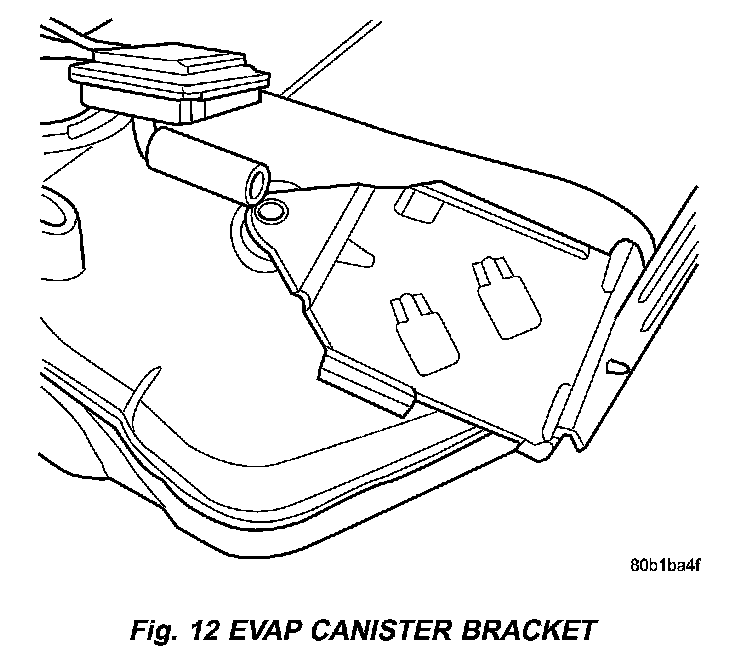

Fig.12 EVAP Canister Bracket:

5. Remove plastic fastener from the bracket of the EVAP canister and.
6. Remove EVAP canister from bracket.

INSTALLATION
1. Install LDP to EVAP Canister.
2. Install EVAP canister to Bracket.
3. Install the plastic fastener to EVAP canister bracket.
4. Connect hoses.
5. Install fuel tank.
6. Connect negative battery cable.
