No Response From PCM With A No Start Condition

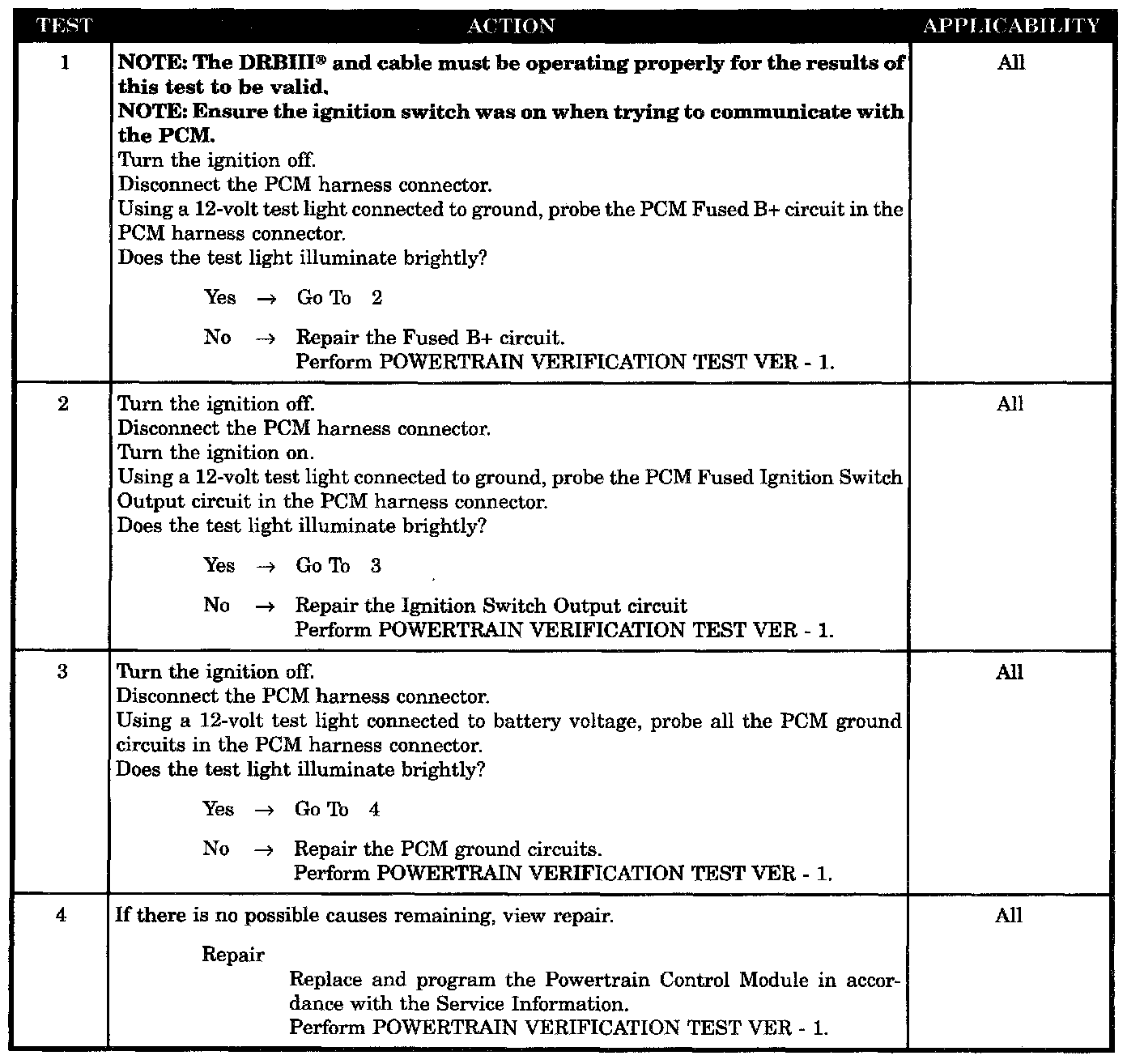

Tests 1 - 4:




SYMPTOM
NO RESPONSE FROM PCM WITH A NO START CONDITION

POSSIBLE CAUSES
- PCM Fused B+ Circuit
- PCM Fused Ignition Switch Output Circuit
- PCM Ground Circuits
- PCM
