No Crank Condition

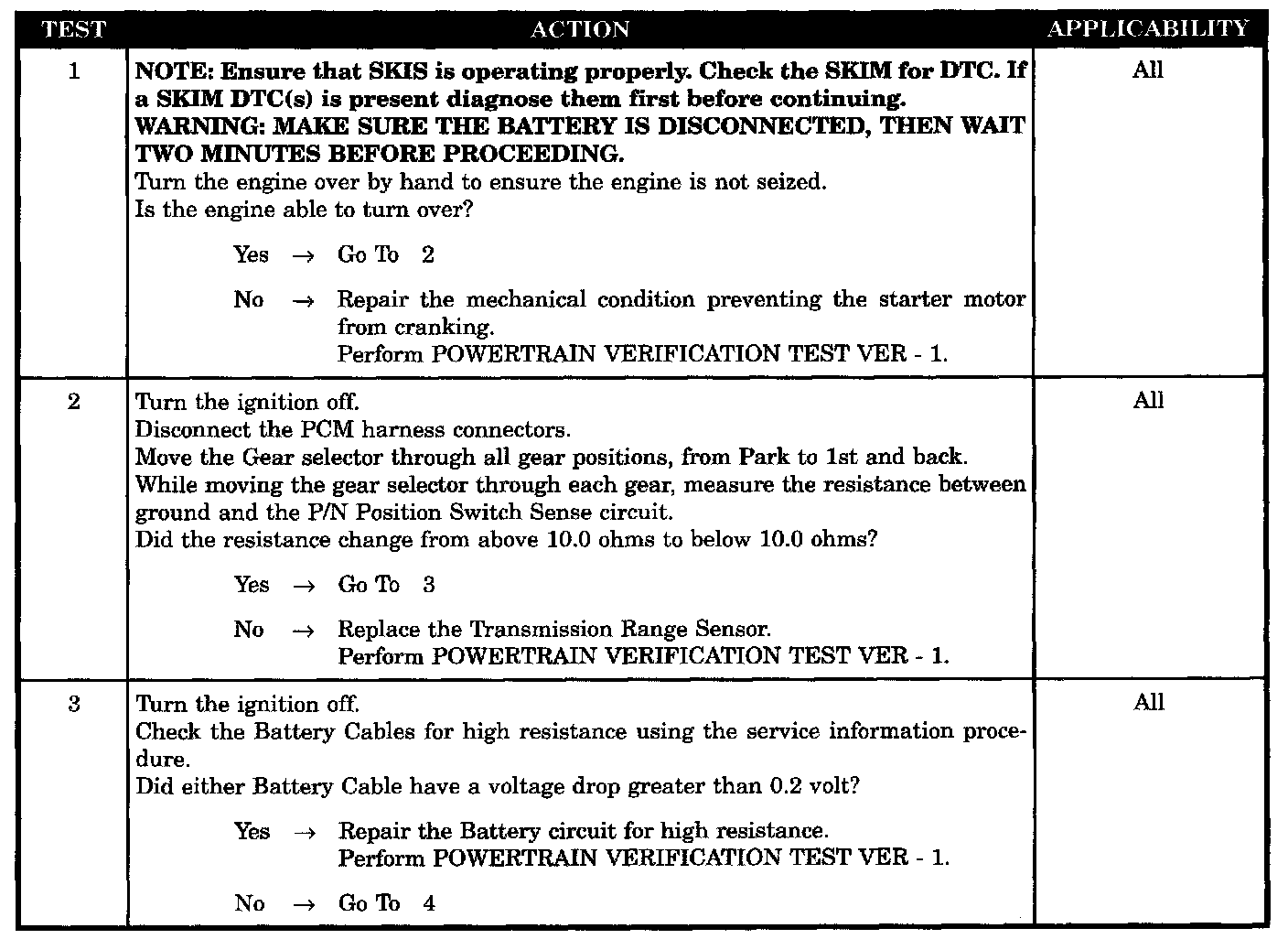

Tests 1 - 3:

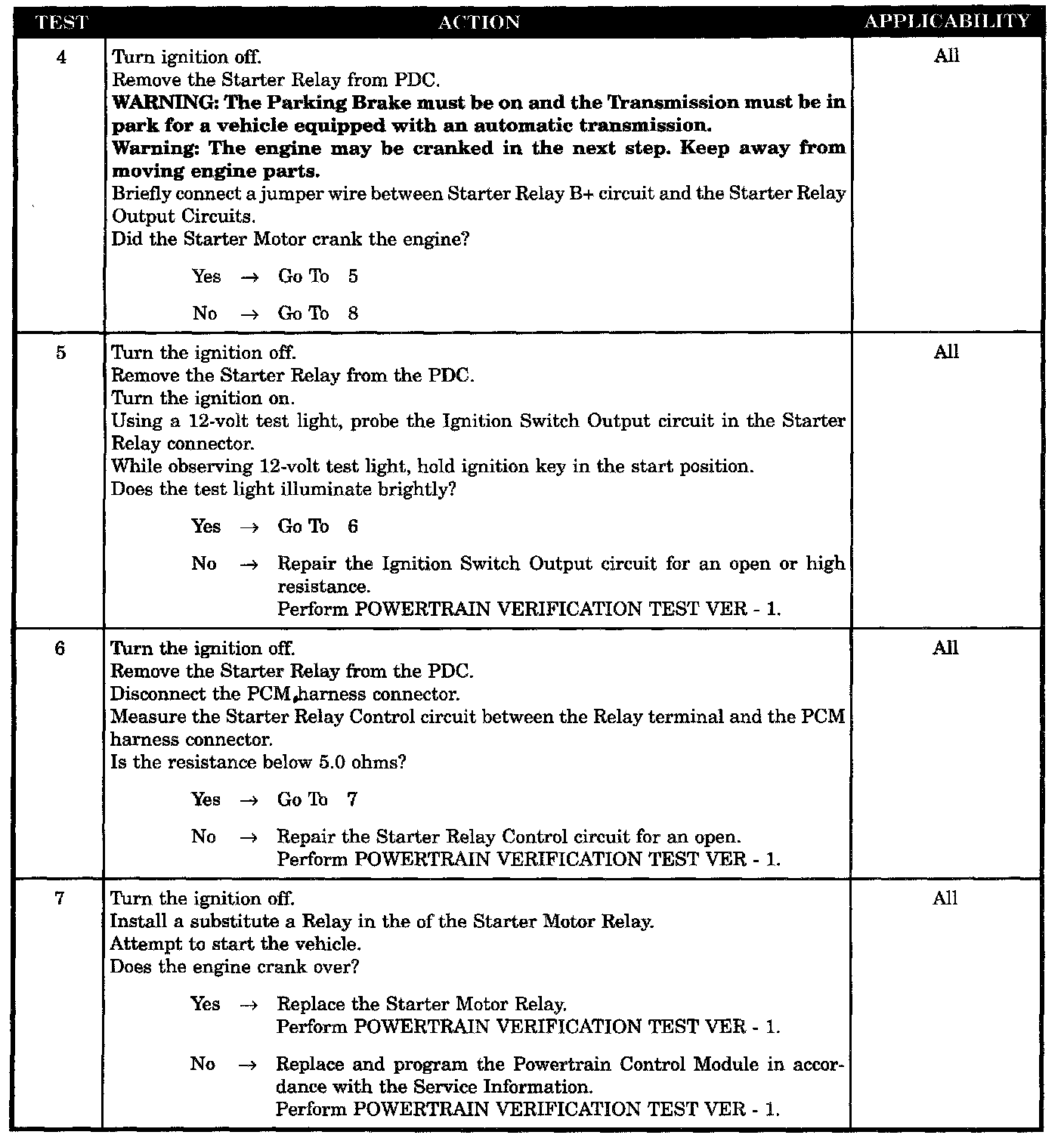

Tests 4 - 7:

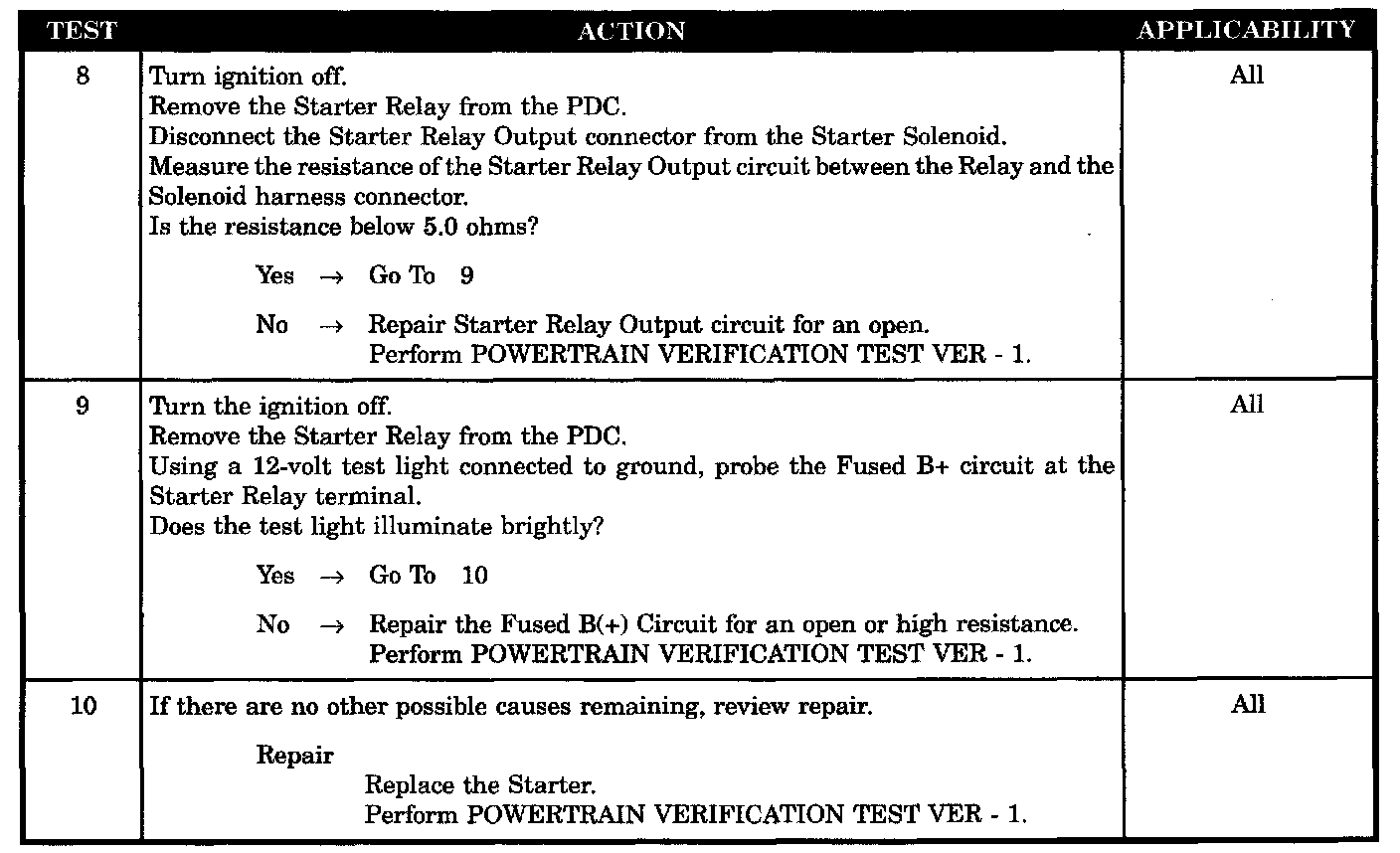

Tests 8 - 10:

SYMPTOM
NO CRANK CONDITION

POSSIBLE CAUSES
- Repair Mechanical Condition
- Transmission Range Sensor
- Battery Circuit Resistance Too High
- Ignition Switch Output Circuit Open
- Starter Relay Control Circuit Open
- Starter Relay Output Circuit Open
- Fused B(+) Circuit Open
- Starter
- Starter Motor Relay
- Starter Relay
