Engine Cranks But Does Not Start

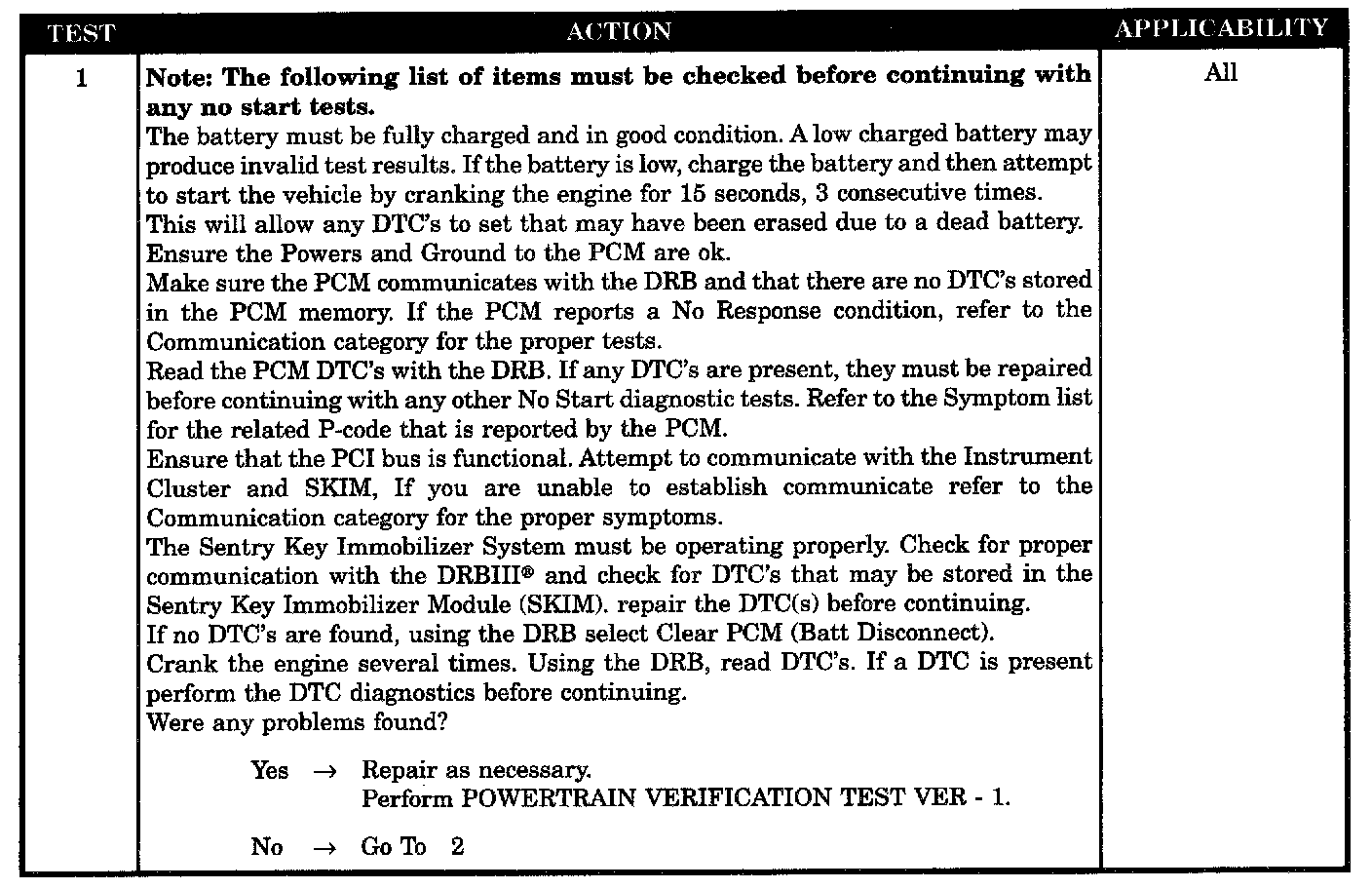

Test 1:

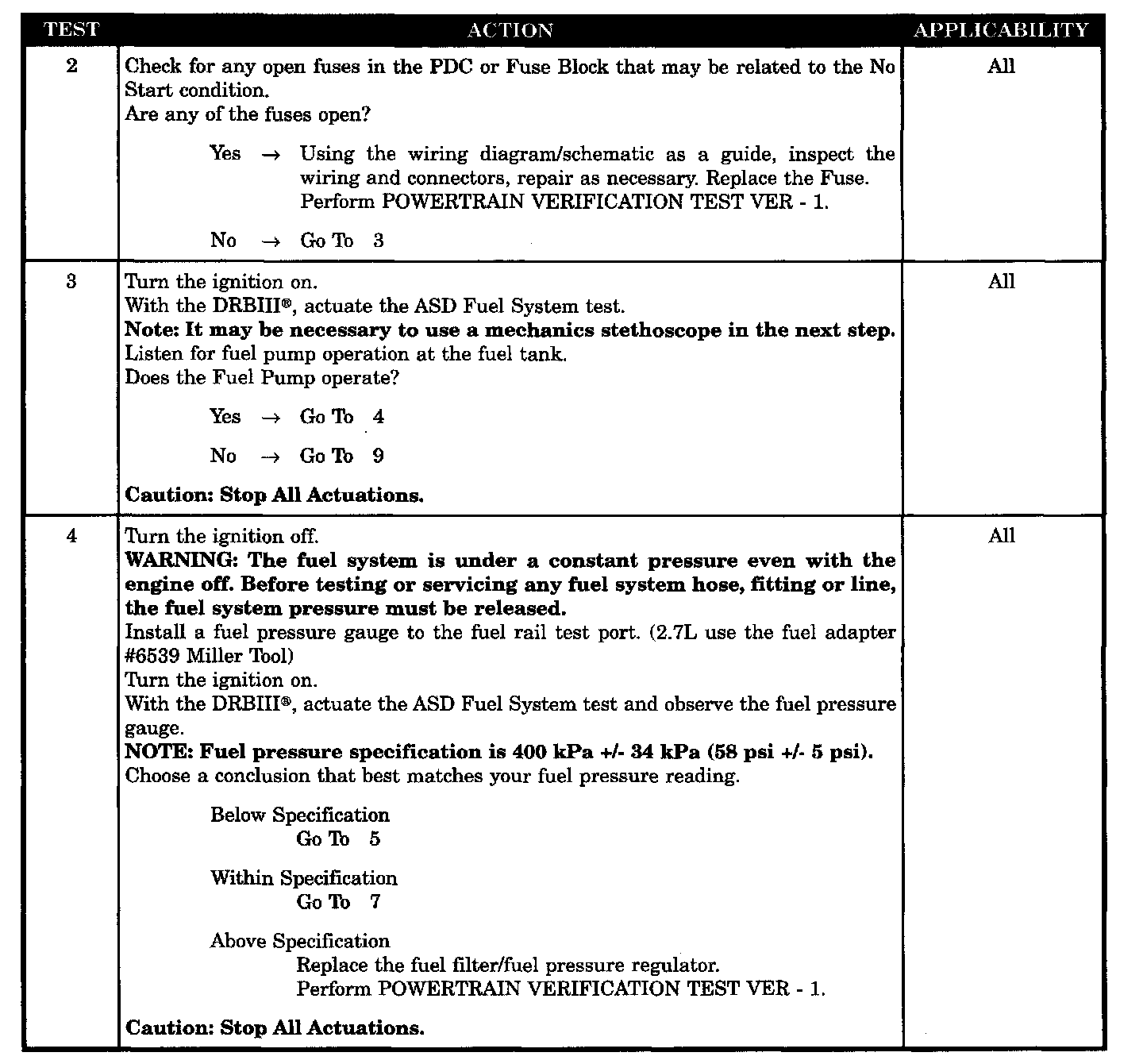

Tests 2 - 4:

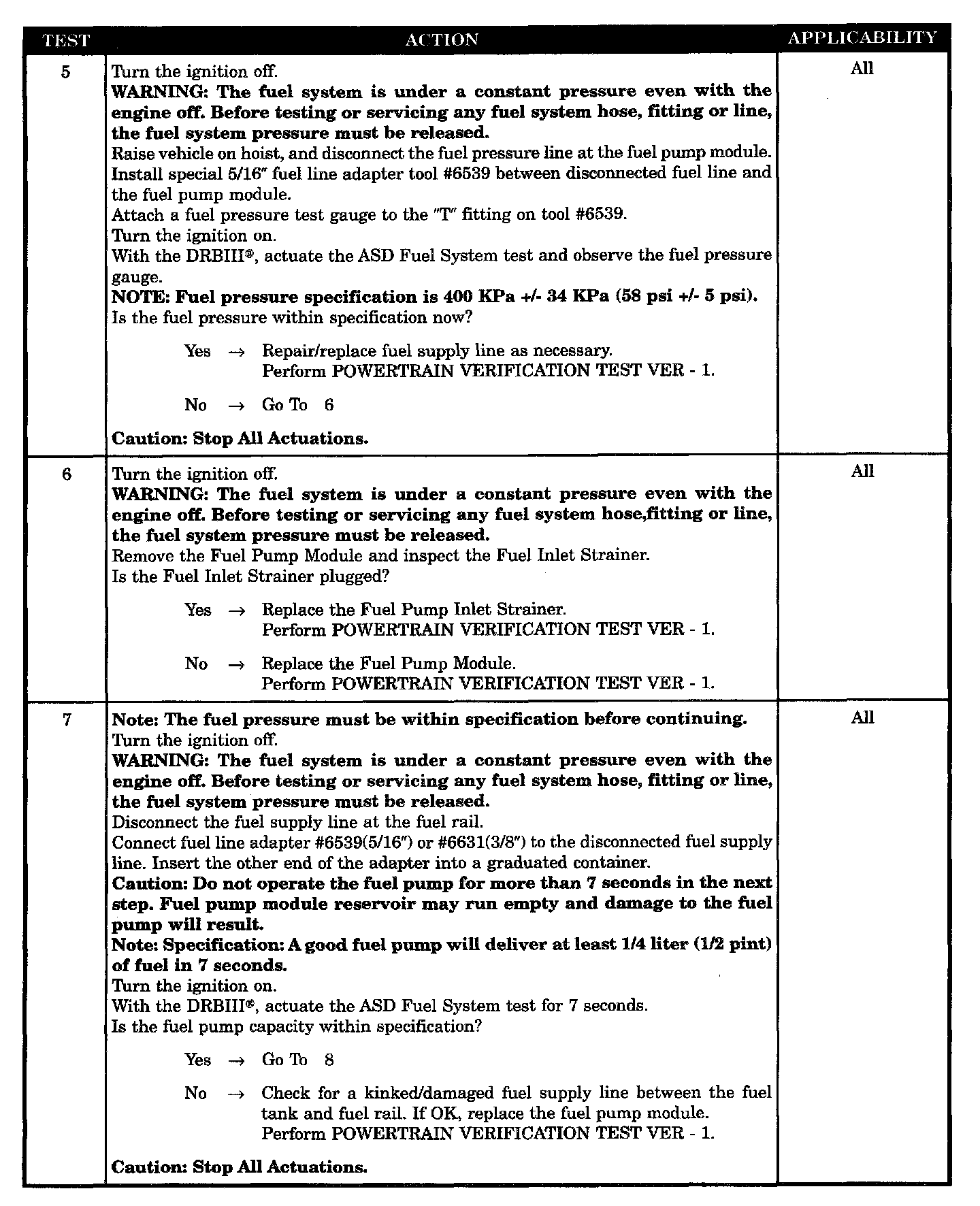

Tests 5 - 7:

Tests 8 - 12:

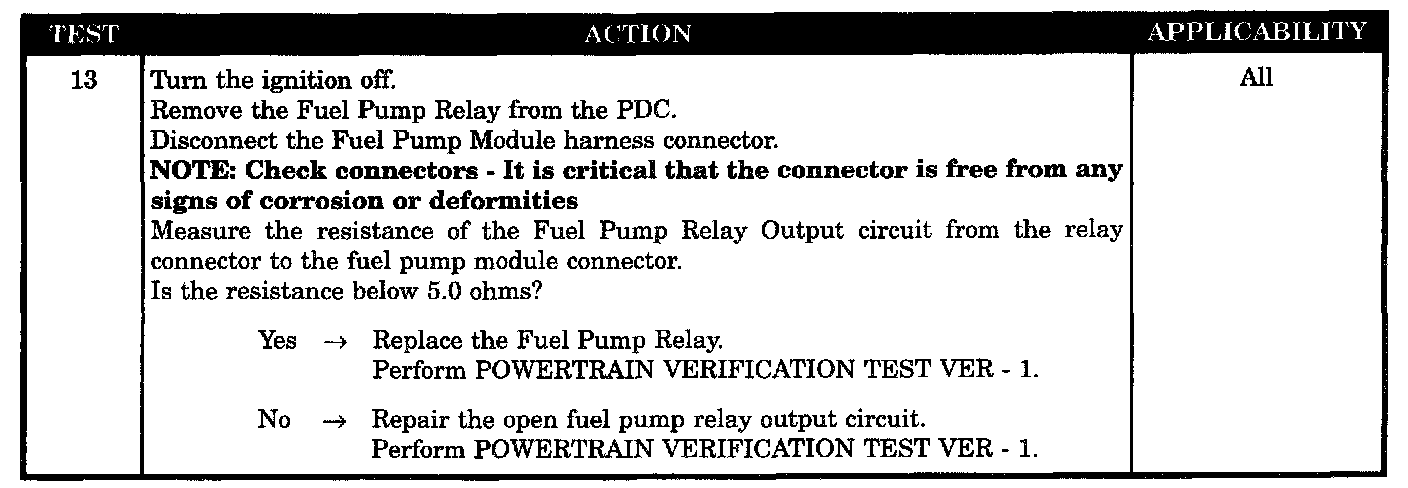

Test 13:

SYMPTOM
ENGINE CRANKS DOES NOT START

POSSIBLE CAUSES
- Fuel Pump Relay
- No Start Pre-Test
- Other Possible Causes For No Start
- Powertrain Fuses Open
- Fuel Pressure Out Of Specs
- Restricted Fuel Supply Line
- Fuel Pump Inlet Strainer Plugged
- Fuel Pump Module
- Fuel Pump Capacity (Volume) Out Of Specs
- Fuel Pump Relay Fused B+ Circuit
- Fuel Pump Relay Output Circuit Open
- Fuel Pump Ground Circuit Open/high Resistance
- Fuel Pump Module
