Checking IAC Motor
Checking IAC Motor

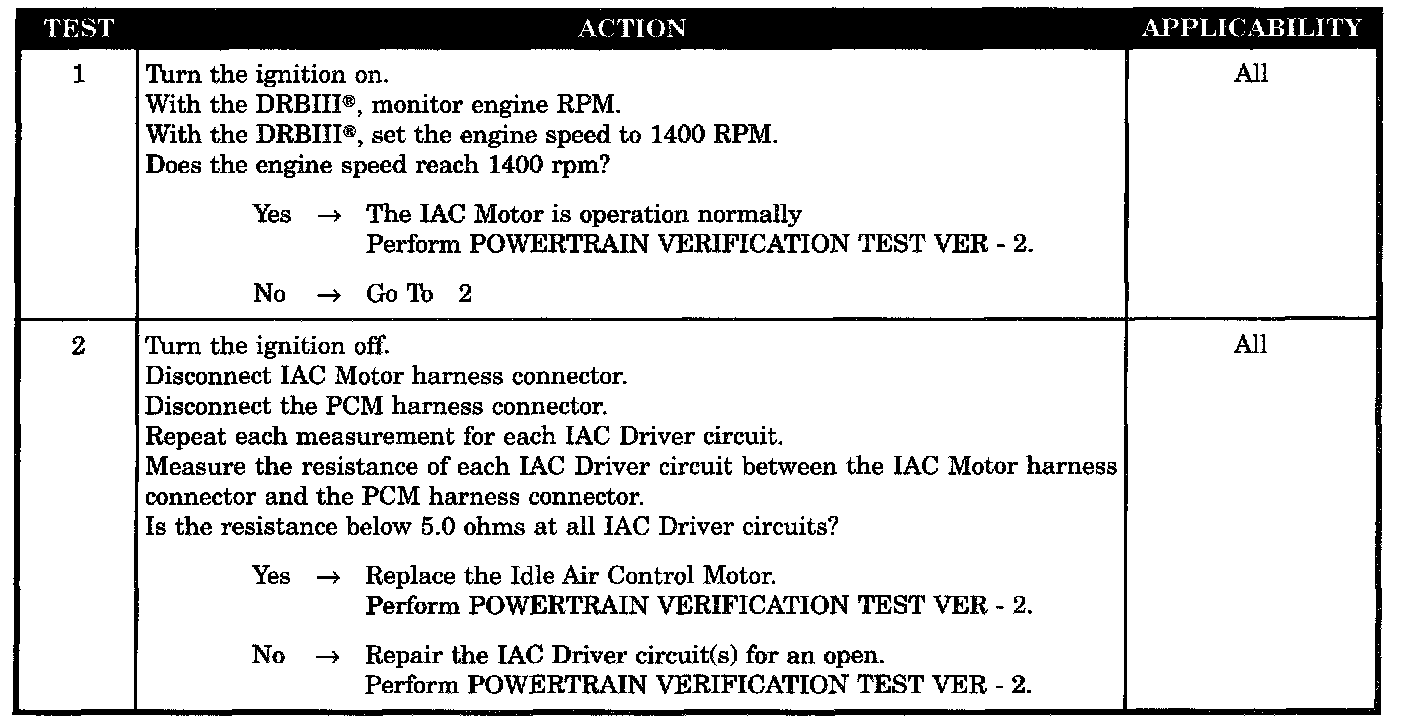

Tests 1 - 2:
SYMPTOM
CHECKING
IAC MOTOR
POSSIBLE CAUSES
-
IAC Motor
Operation
-
IAC
Driver Circuits Open
IAC Motor
