Home >> Chrysler >> 2002 >> Sebring Limited Convertible V6-2.7L VIN R >> Repair and Diagnosis >> Locations >> Connector Locations >> Connector Location Index >> Part 7 of 8

Part 7 of 8

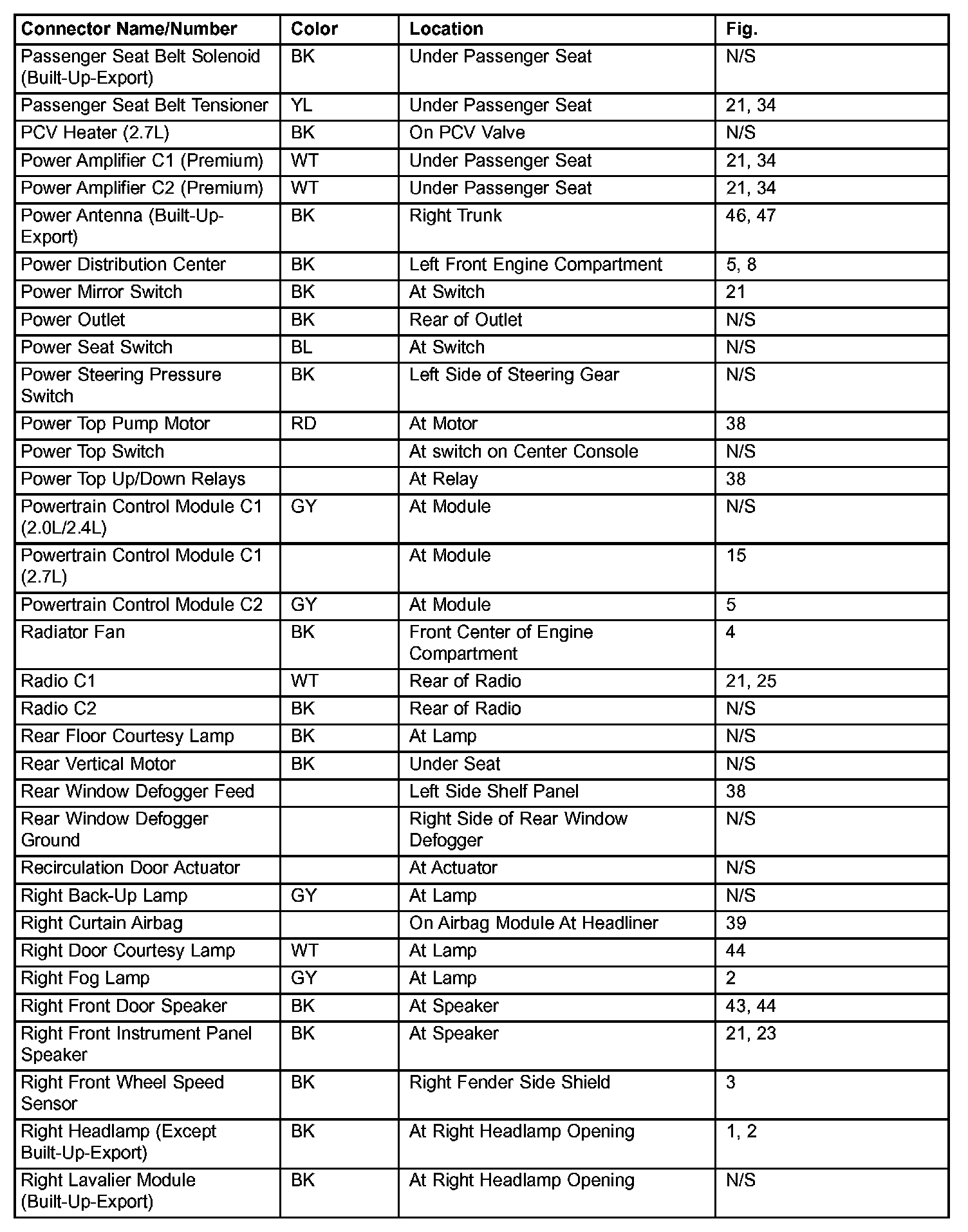

Connector Locations (Part 7 Of 8):
