Headlamp: Adjustments

Headlamp Alignment Screen:

A properly aimed left and right low beam headlamp will project the center of the low beam hot spot on the alignment screen below the horizontal center line and 6 in. (152 mm) right of headlamp center line. The high beam headlamps cannot be aligned. The high beam pattern should be correct when the low beams are aligned properly.

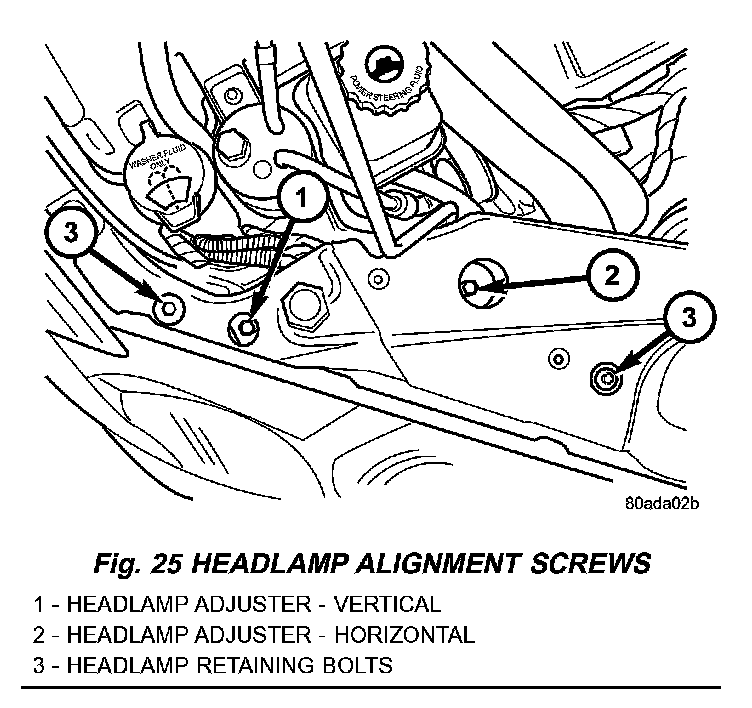

Fig.25 Headlamp Alignment Screws:

To adjust headlamp alignment, rotate alignment screws to achieve the specified low beam hot spot pattern.
