Instrument Panel, Gauges and Warning Indicators: Diagrams

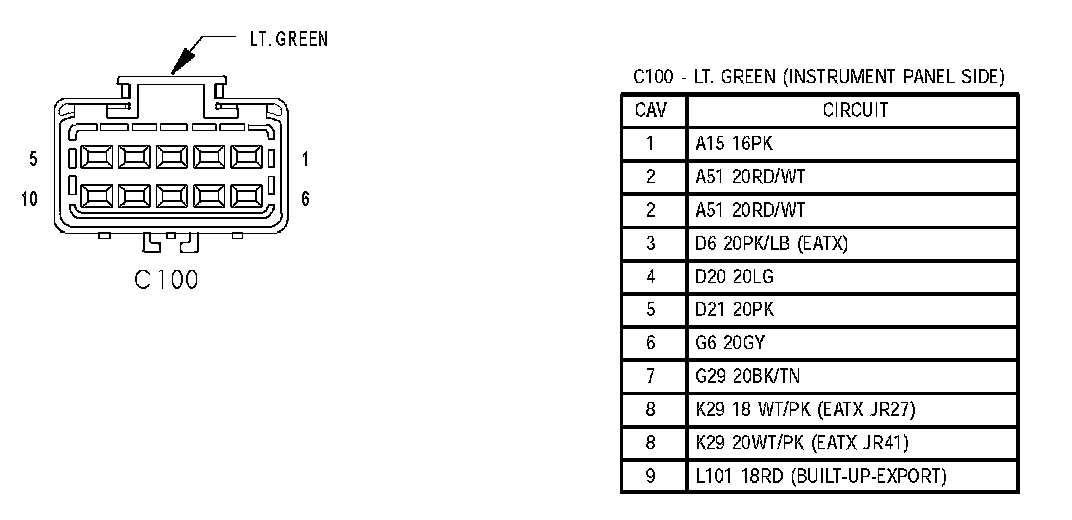

C100:

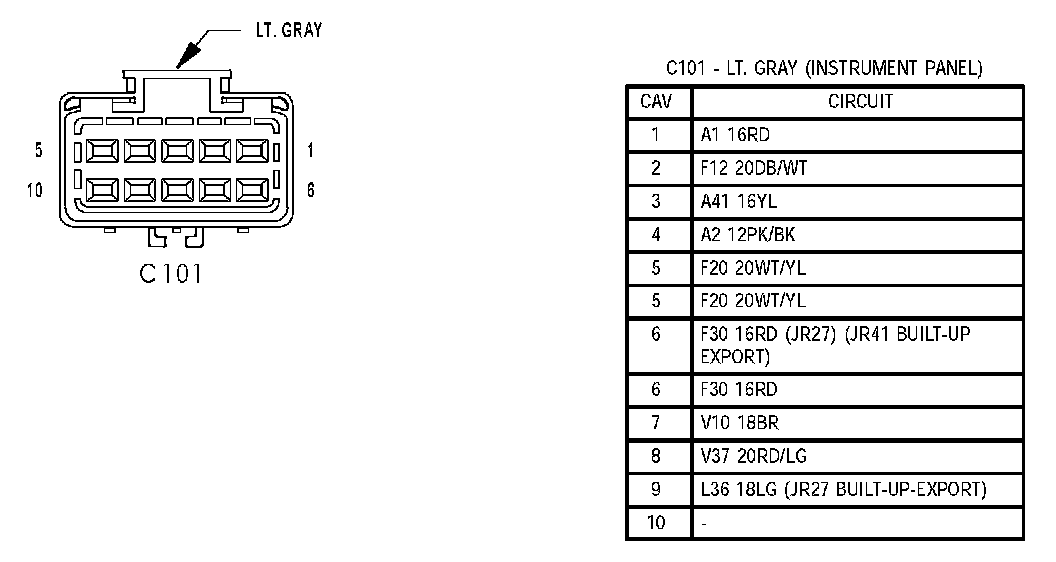

C101:




C200:

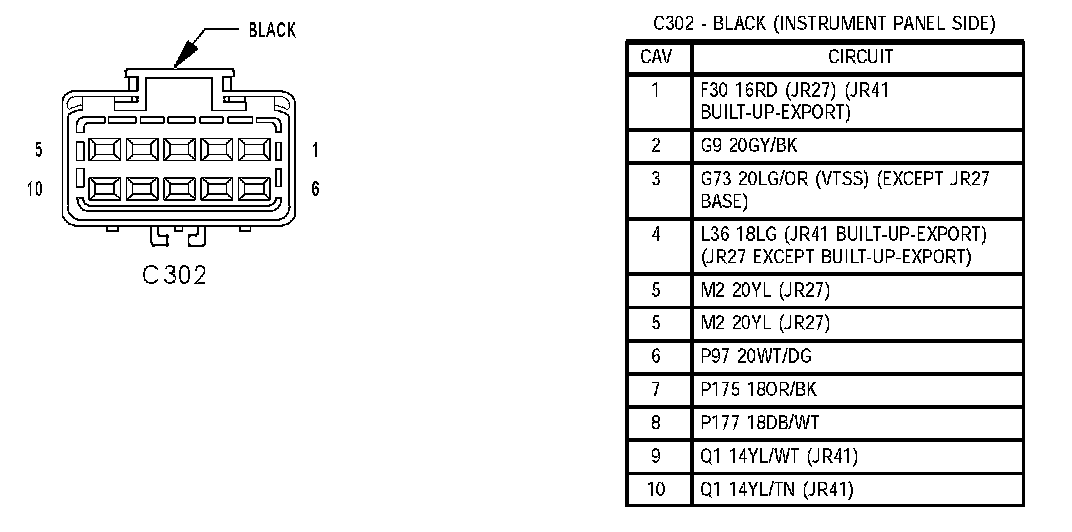

C302:

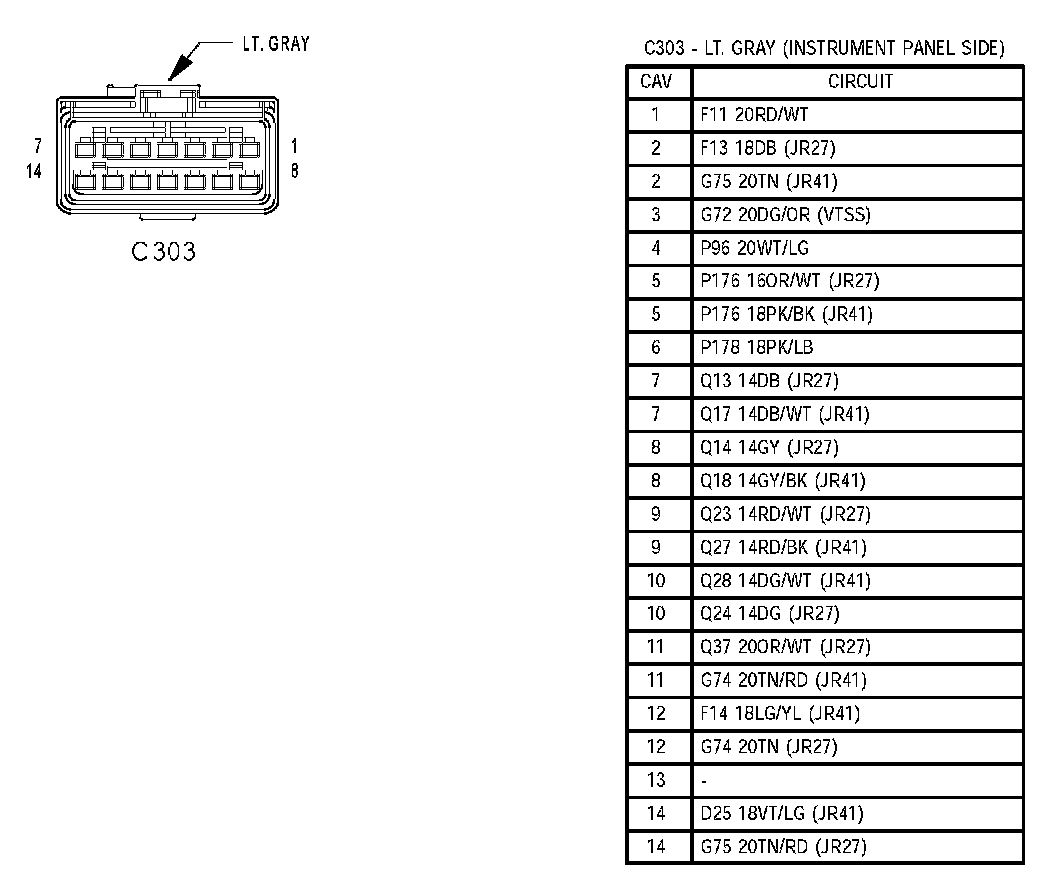

C303:




C304 (JR41):




C306:

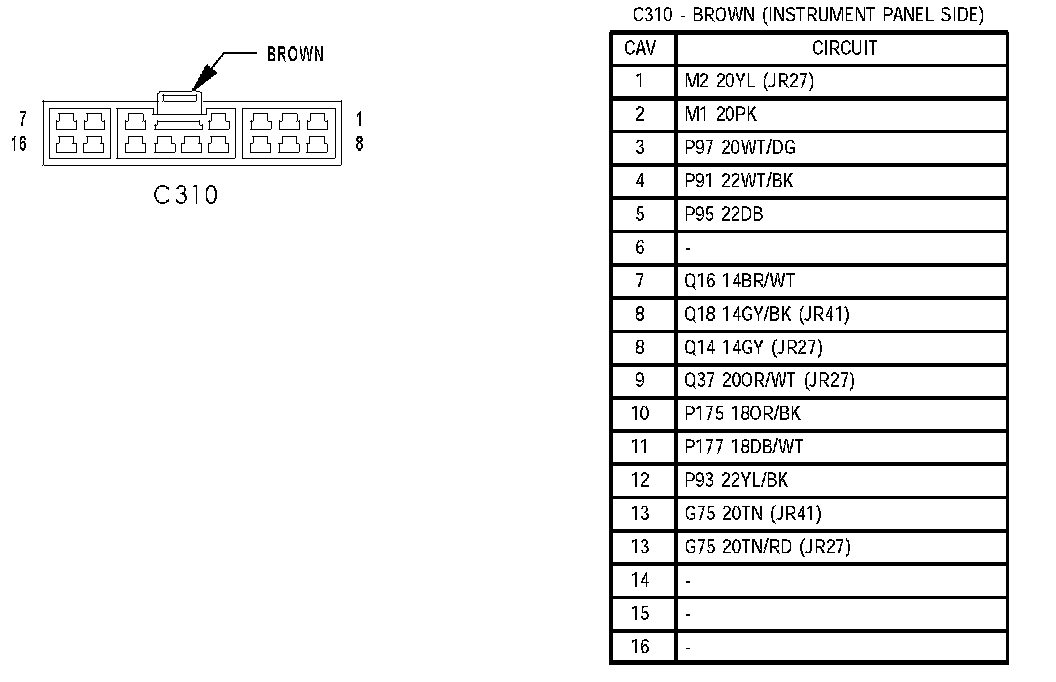

C310:

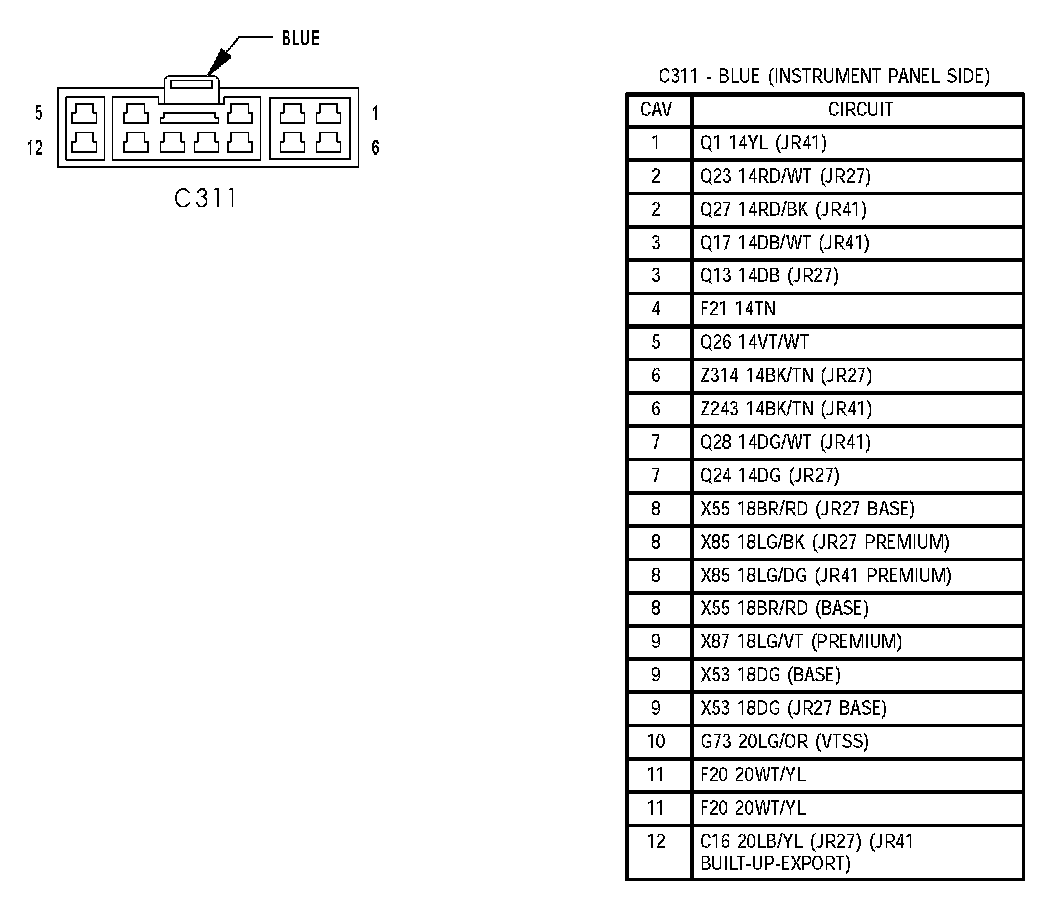

C311:

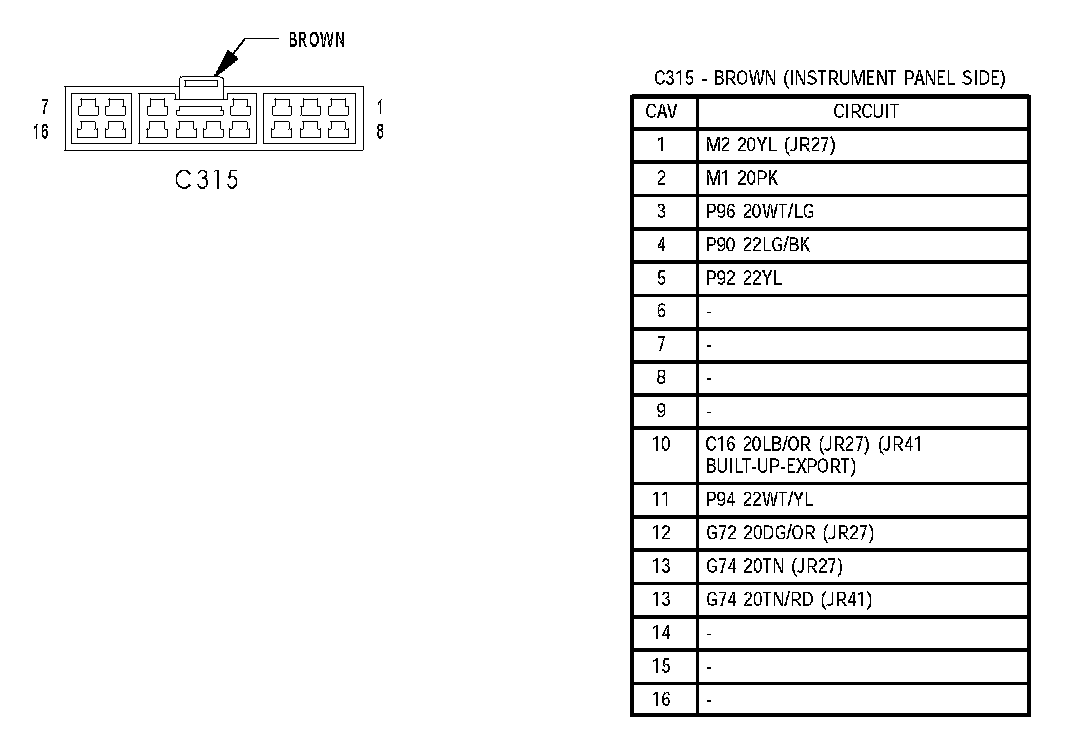

C315:




C316:
