Blower Motor: Service and Repair

REMOVAL
1. Disconnect negative battery cable.
2. Remove lower right silencer panel.
3. Remove blower motor connector.
4. Remove the three blower motor mounting screws.

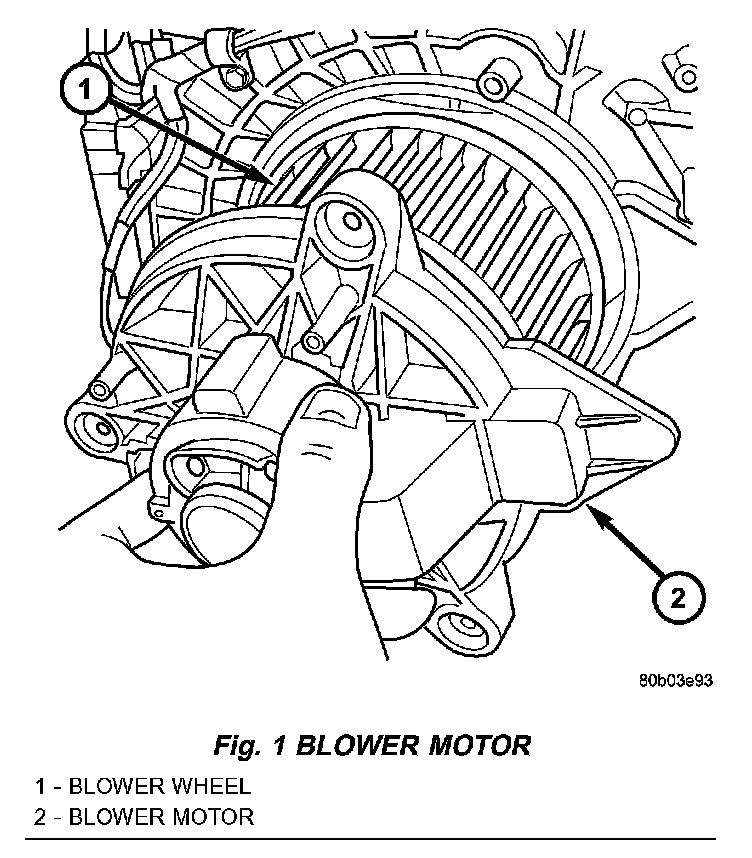

Fig.1 Blower Motor:

5. Remover blower motor from housing.

INSTALLATION
1. Install blower motor into the housing.
2. Install the three blower motor mounting screws.
3. Connect blower motor wiring harness.
4. Install silencer panel.
