Harmonic Balancer - Crankshaft Pulley: Service and Repair

VIBRATION DAMPER

REMOVAL
1. Disconnect negative battery cable.
2. Raise vehicle on hoist.
3. Remove right front wheel and belt splash shield.
4. Remove accessory drive belts.
5. Remove damper bolt.

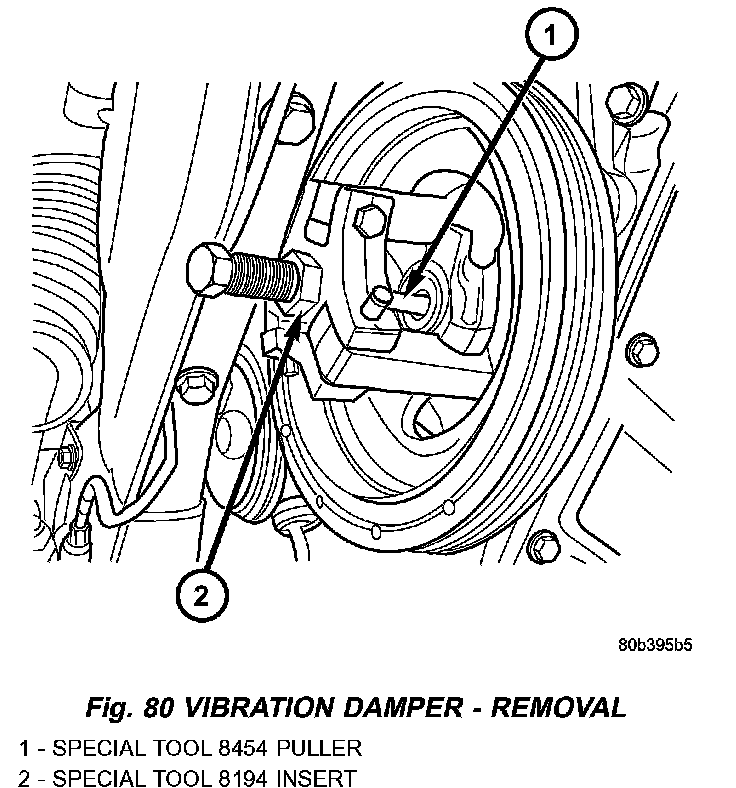

6. Remove damper by using Special Tools 8194 Insert and 8454 Puller (Fig. 80).

INSTALLATION

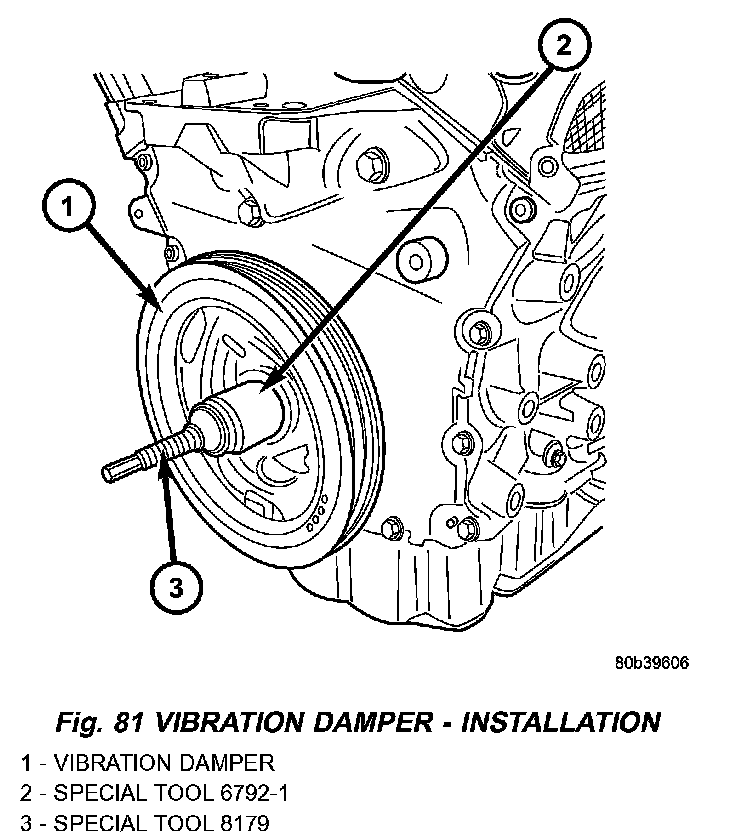

1. Install damper using Special Tools 8179 Screw, with Nut and Thrust Bearing from 6792, and 6792-1 Installer (Fig. 81).
2. Install damper center bolt. Tighten center bolt to 170 Nm (125 ft. lbs.).
3. Install accessory drive belts.
4. Install belt splash shield and right front wheel.
5. Lower vehicle.
6. Connect negative battery cable.
