Engine Block Heater: Description and Operation
ENGINE BLOCK HEATER - 2.7LDESCRIPTION

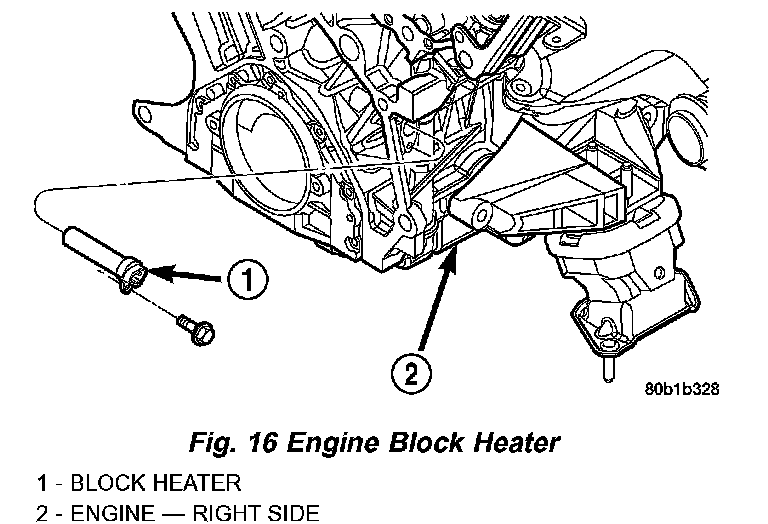

The engine block heater is mounted in the cylinder block, near the right rear corner (Fig. 16). The block heater is a dry cylinder type design and is powered by 110 volt AC. The power cord must be secured in its retainer clips, and not positioned so it could contact linkages or exhaust manifolds and become damaged.
OPERATION
When power is applied (110 volt A.C.) to the block heater, the heating element transfers heat through the aluminum engine block and into the coolant without directly penetrating the cooling system.
