Home >> Chrysler >> 2002 >> Sebring Limited Convertible V6-2.7L VIN R >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Group 8W-15 (Ground Distribution) >> Sheet 8W-15-21

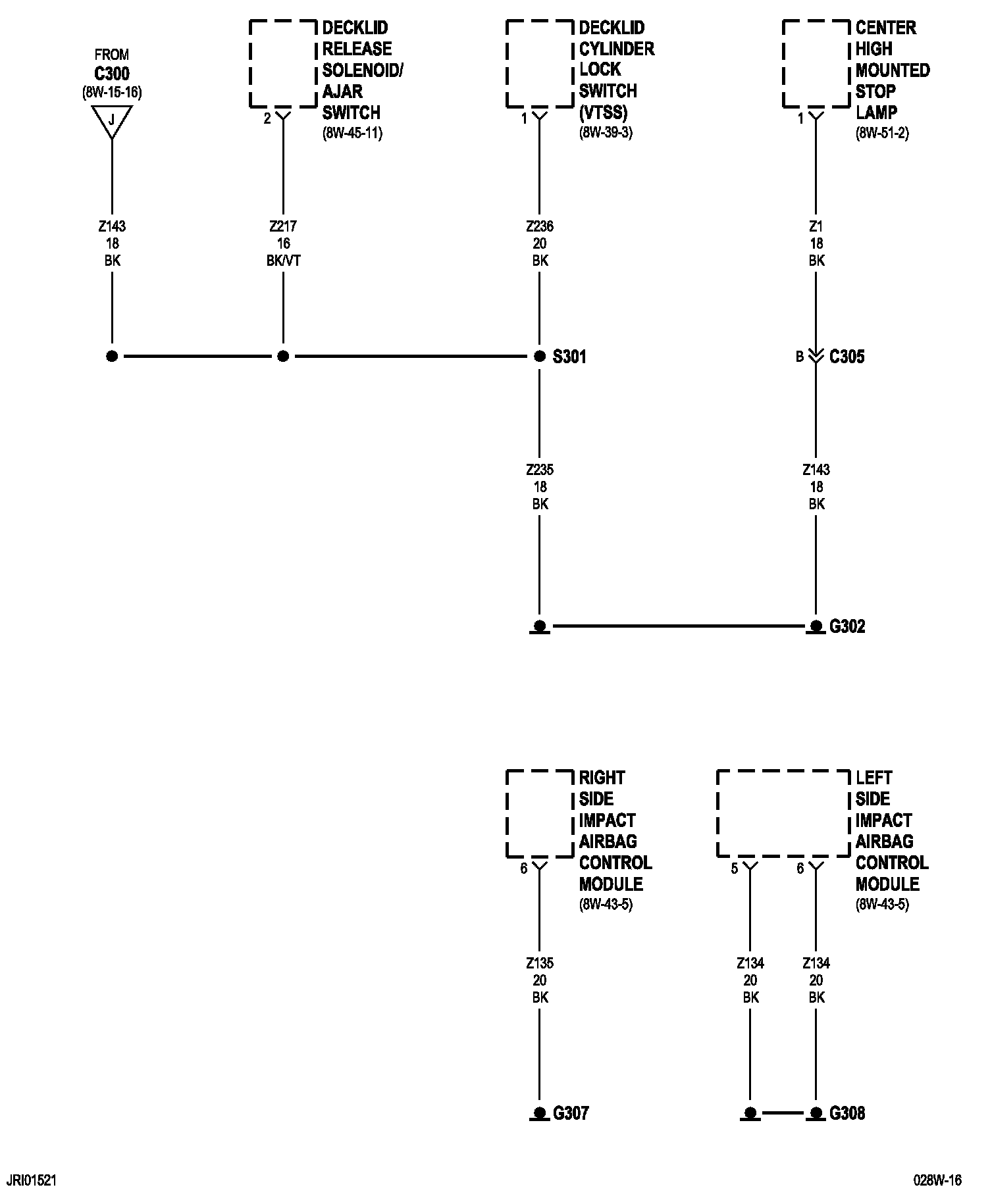

Sheet 8W-15-21

8w-15-21 (JR41):
