Sebring Limited Convertible V6-2.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Parking Lamp
Parking Lamp

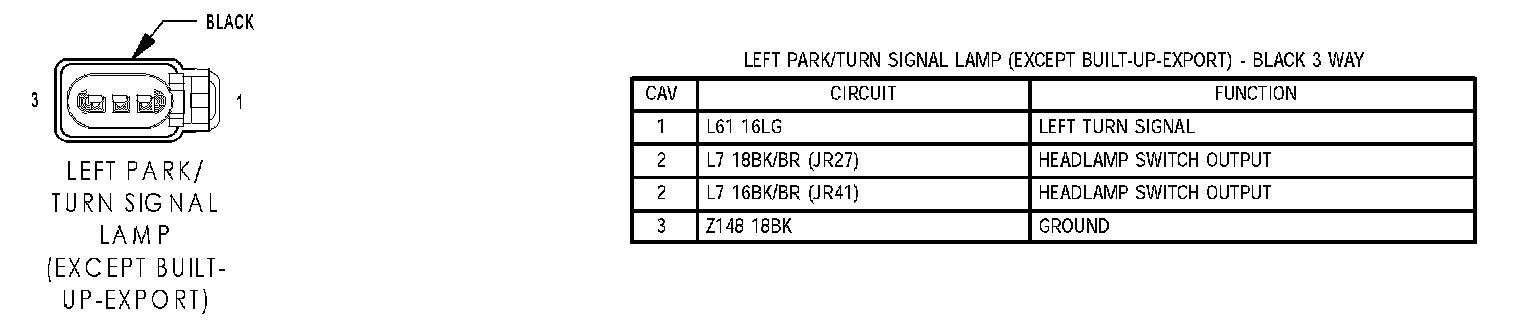

Left Park/Turn Signal Lamp (Except Built-Up-Export):

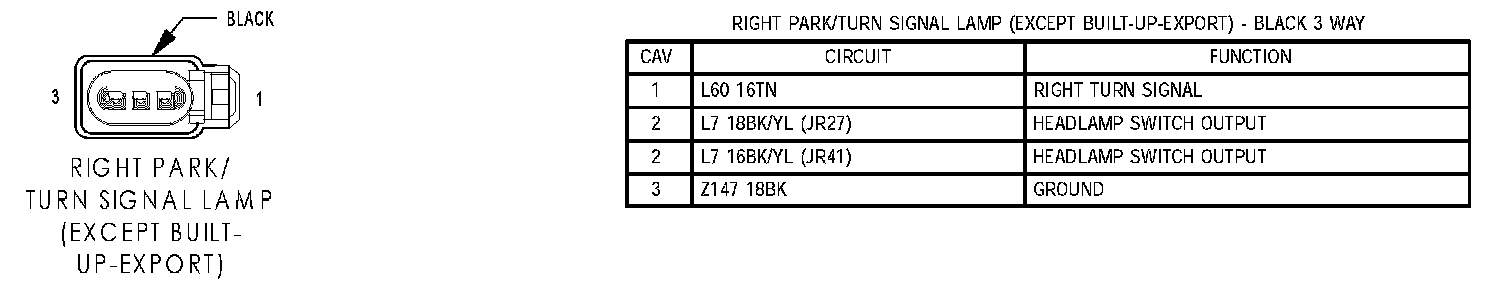

Right Park/Turn Signal Lamp (Except Built-Up-Export):
