Home >> Chrysler >> 2002 >> Sebring Limited Convertible V6-2.7L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Heating and Air Conditioning >> Air Door Actuator / Motor, HVAC

Air Door Actuator / Motor, HVAC

Blend Door Actuator:

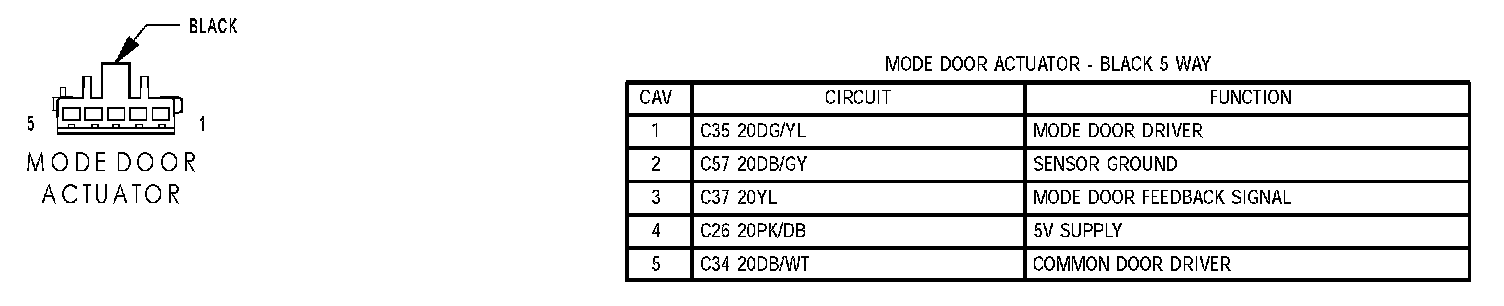

Mode Door Actuator:

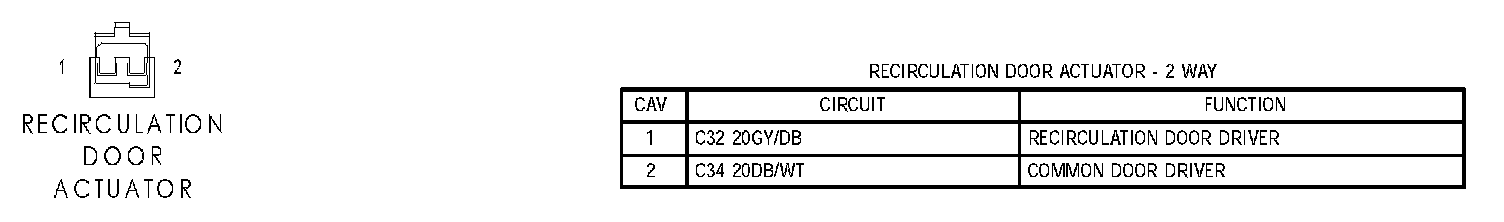

Recirculation Door Actuator:
