Home >> Chrysler >> 2002 >> Sebring Limited Convertible V6-2.7L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Hazard Warning Switch

Hazard Warning Switch

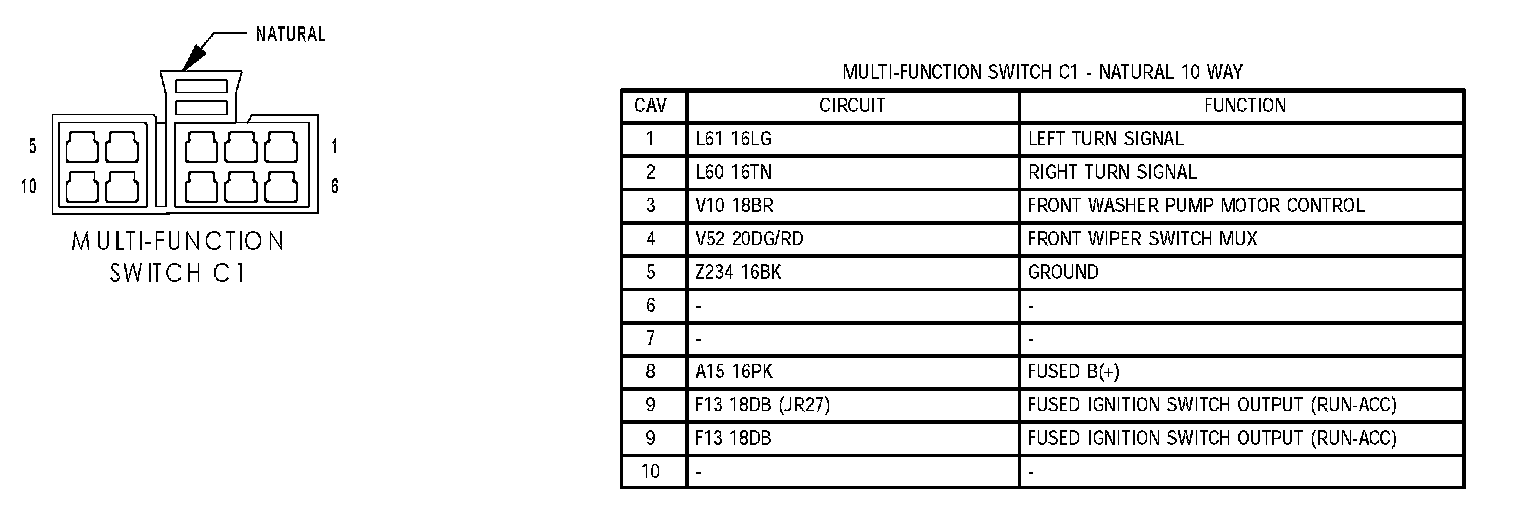

Multi-Function Switch C1:

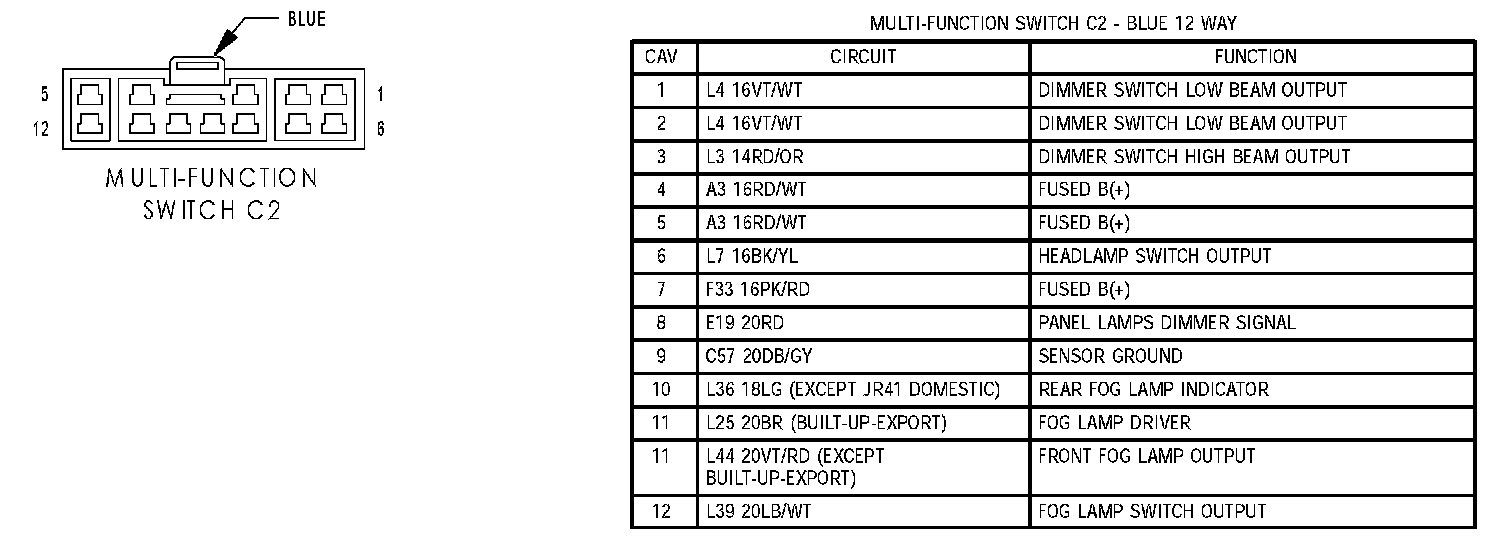

Multi-Function Switch C2:
