Connector Views
>>
Courtesy Lamp
>>
System Diagram
System Diagram

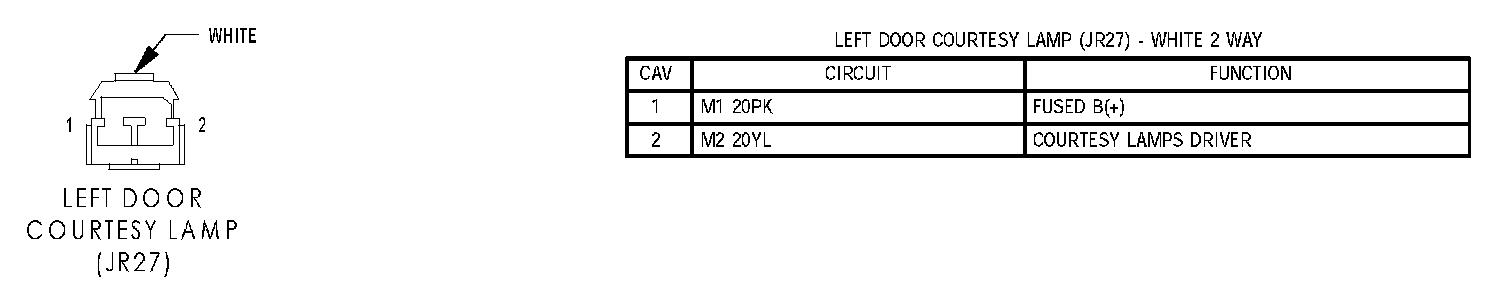

Left Door Courtesy Lamp (JR27):
Overhead Map/Courtesy Lamps (JR41):

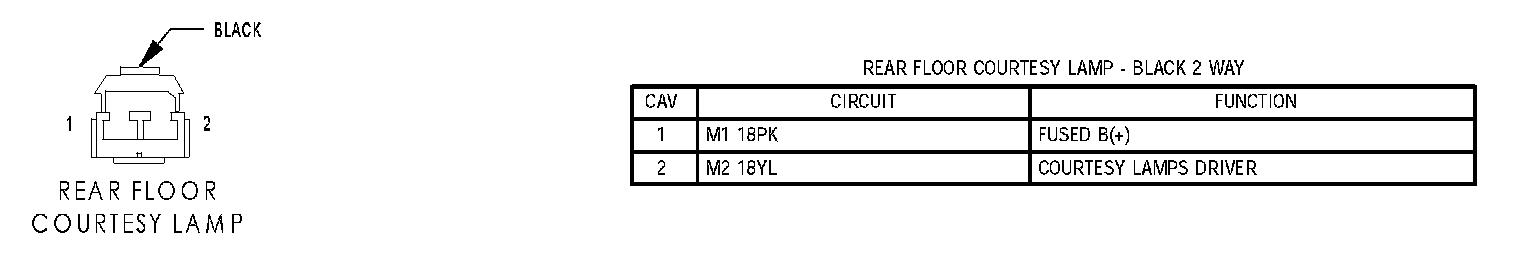

Rear Floor Courtesy Lamp:

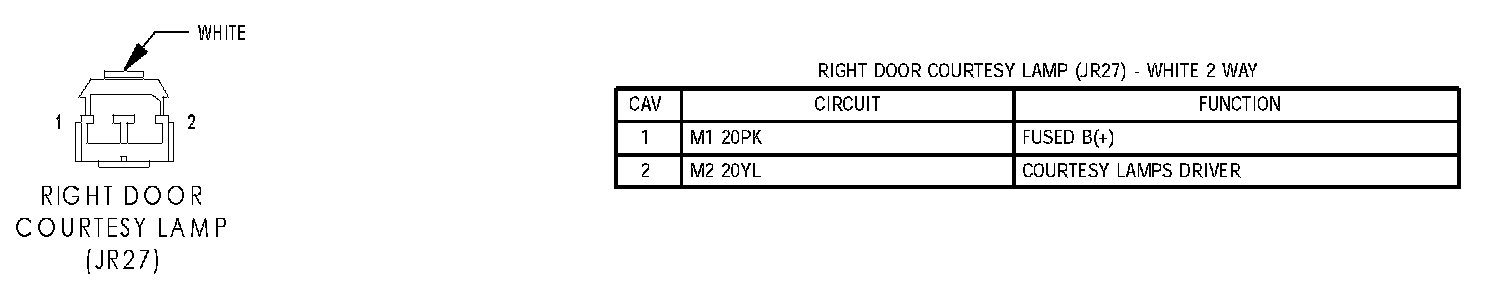

Right Door Courtesy Lamp (JR27):
