Sebring Limited Convertible V6-2.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>
C320
C320

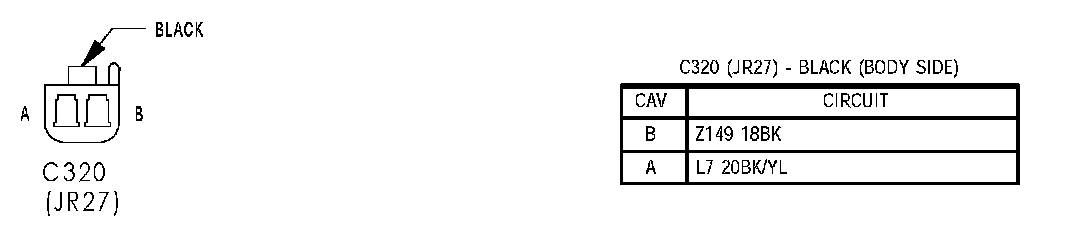

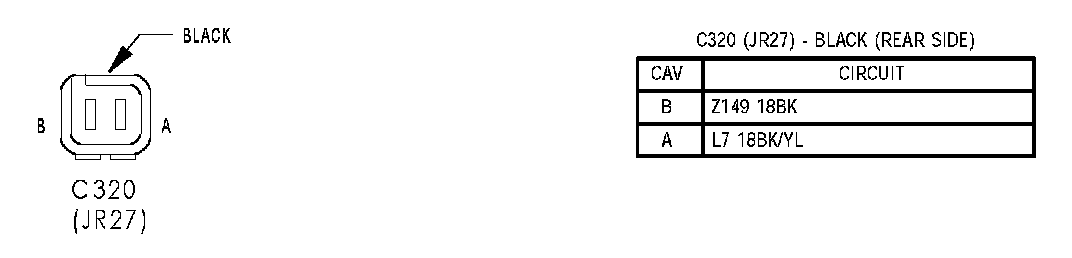

C320 (JR27):
C320 (JR27):

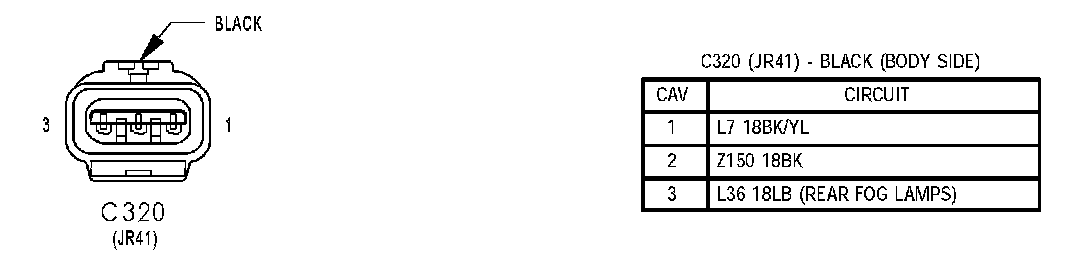

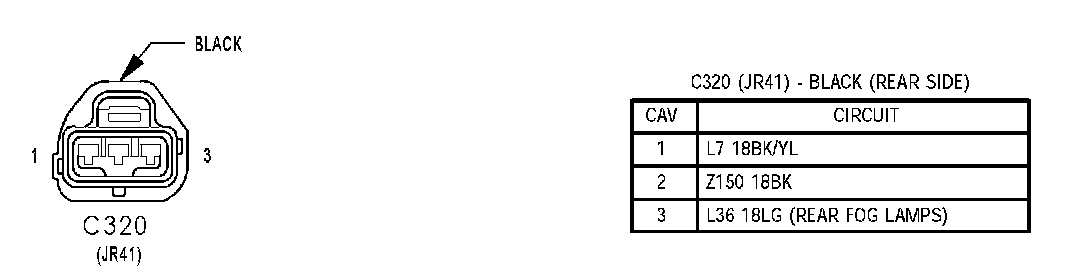

C320 (JR41):
C320 (JR41):
