Sebring Limited Convertible V6-2.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>
C308
C308

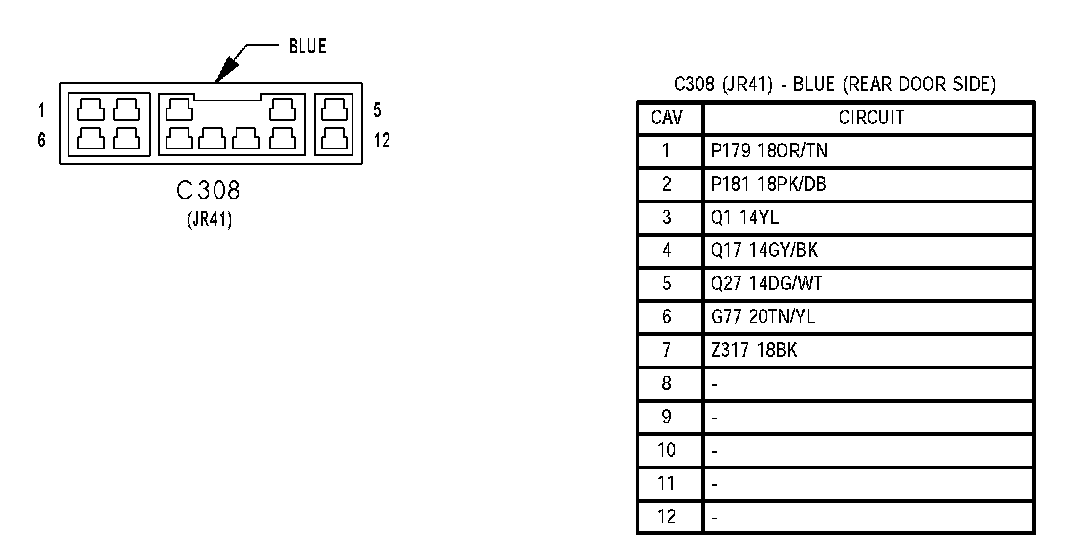

C308 (JR41):

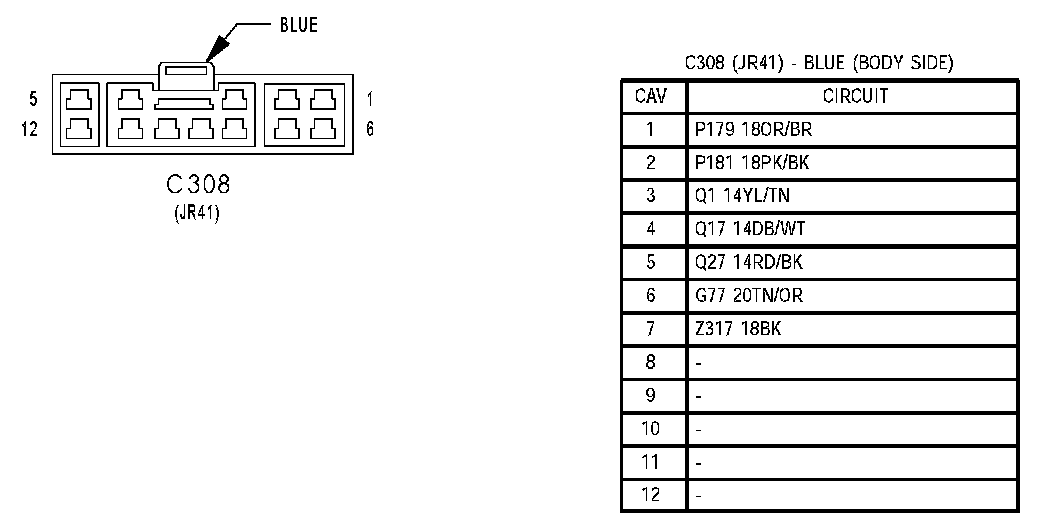

C308 (JR41):
