Sebring Limited Convertible V6-2.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

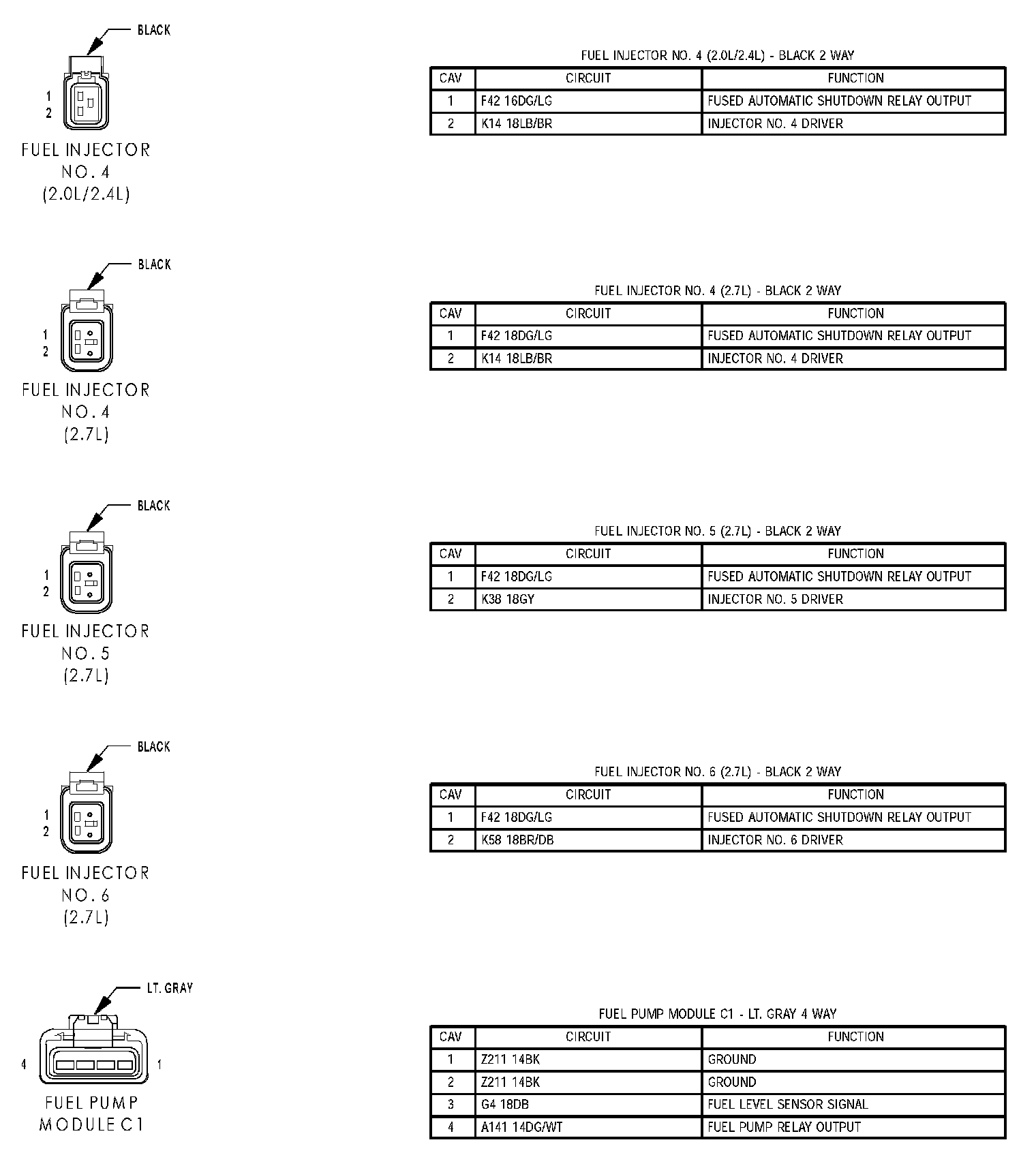

Complete Body and Chassis Connector Views
>>
Sheet 8W-80-39
Sheet 8W-80-39
8w-80-39:
