FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chrysler
>>
2002
>>
Sebring Limited Convertible V6-2.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag
Air Bag

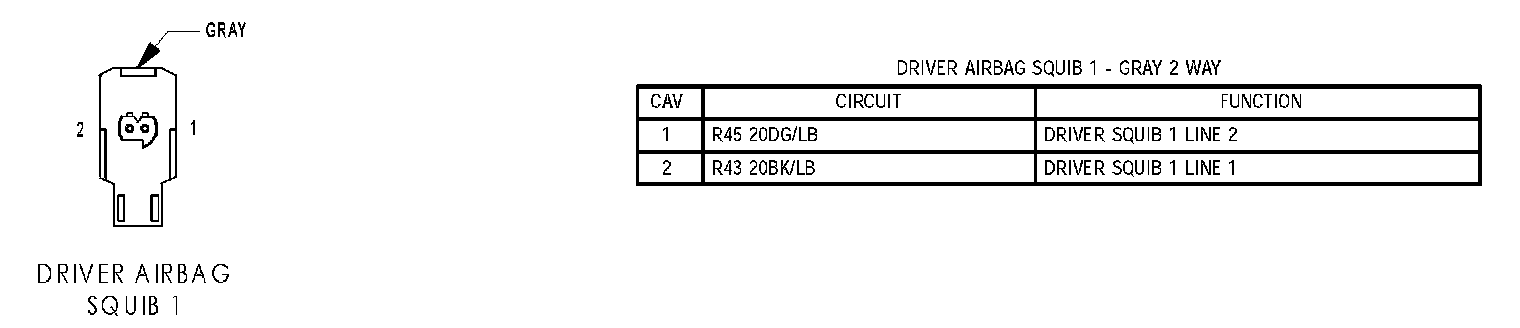

Driver Airbag Squib 1:
Driver Airbag Squib 2:

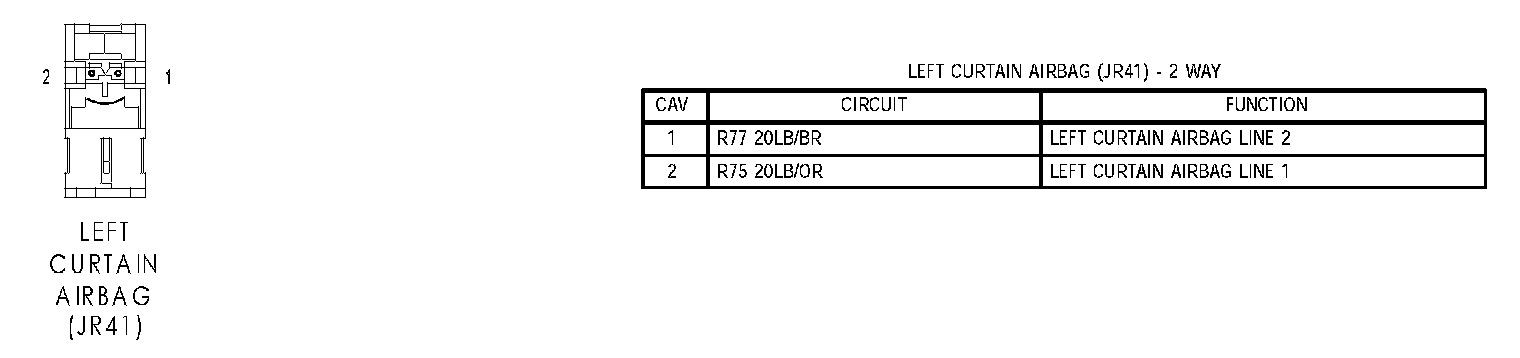

Left Curtain Airbag (JR41):

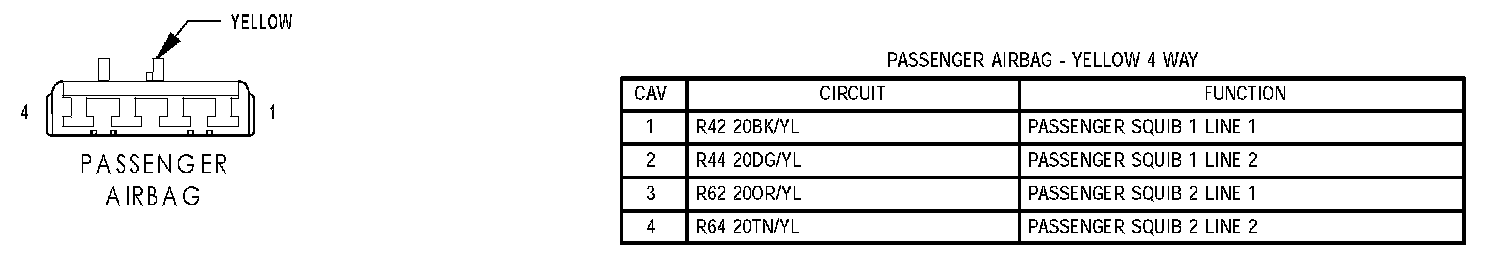

Passenger Airbag:
Right Curtain Airbag (JR41):
