Front And Rear Door Opening Weatherstrip

FRONT & REAR DOOR OPENING WEATHERSTRIP

REMOVAL

1. Open door.
2. Remove door sill plate.

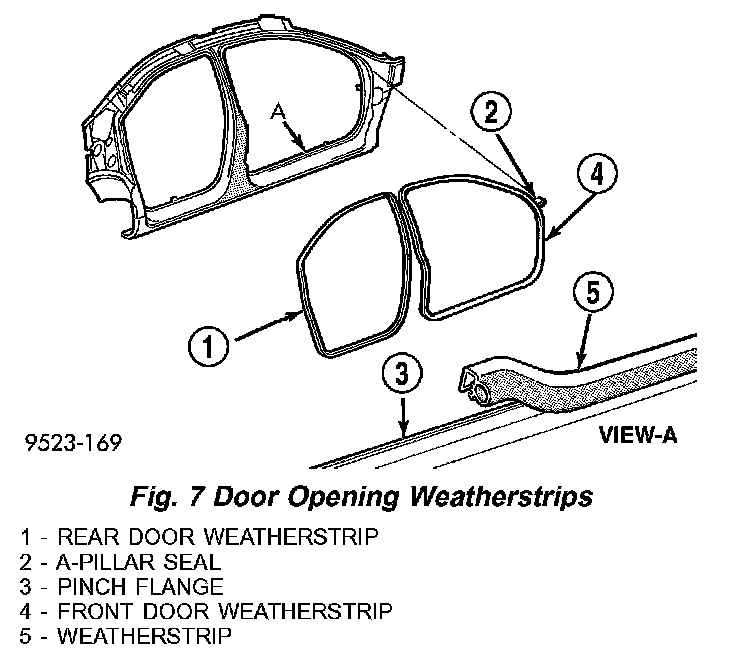

Fig. 7:

3. Pull weatherstrip from pinch flange around door opening (Fig. 7).

INSTALLATION

Position the splice in the door opening weatherstrip in the center of the bottom of the opening and reverse the preceding operation.

1. Push weatherstrip on to pinch flange around door opening.
2. Install door sill plate.
3. Close door.
