Quarter Panel Trim

QUARTER TRIM PANEL

REMOVAL

1. Lower convertible top.
2. Remove rear seat cushion and rear seat back.
3. Remove door sill trim panel.

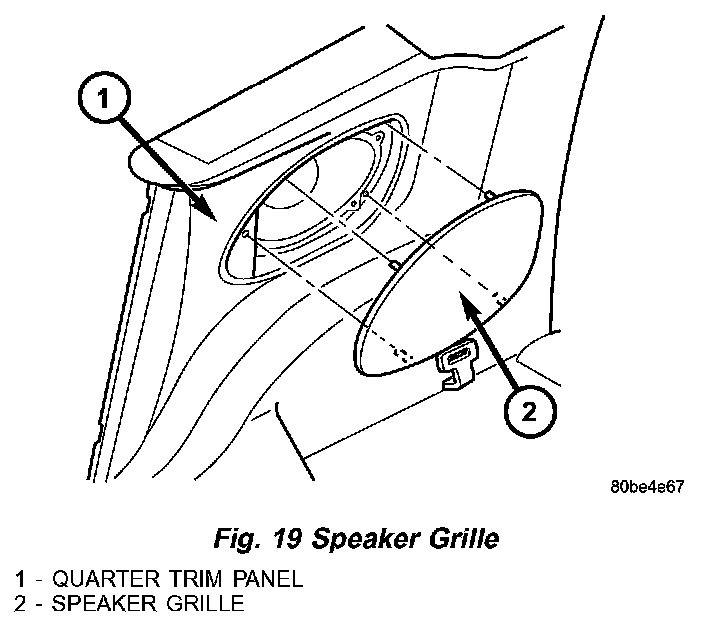

Fig. 19:

4. Remove speaker grille (Fig. 19).

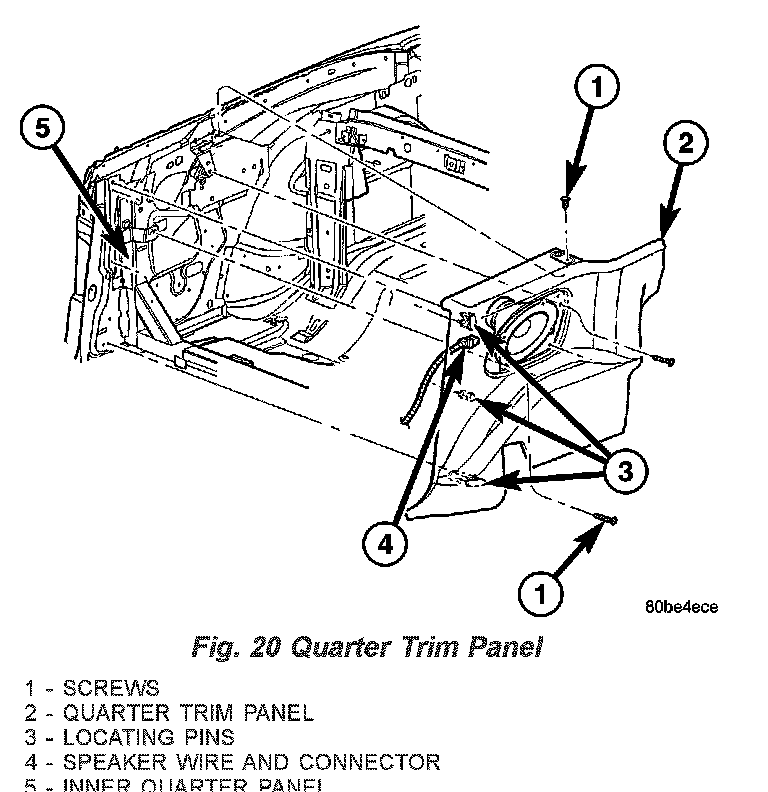

Fig. 20:

5. Remove vertical screws and inboard screw attaching quarter trim panel to inner quarter panel (Fig. 20).
6. Remove screws attaching quarter trim panel to inner quarter panel through the speaker opening.
7. Lift metal retainer blade at the front out of clip.
8. Pull trim panel from inner quarter panel and disconnect speaker wiring connector.
9. Remove quarter trim panel from vehicle.

INSTALLATION

1. Replace push in fasteners.
2. Position quarter trim panel on vehicle.
3. Connect speaker wiring connector.
4. Install screws attaching quarter trim panel to inner quarter panel through the speaker opening.
5. Install vertical screws and inboard screw attaching quarter trim panel to inner quarter panel.
6. Place toe blade into slotted sill clip.
7. Install door sill trim panel.
8. Install speaker grille.
9. Install rear seat cushion and rear seat back.
