B-Pillar Lower Trim

B - PILLAR LOWER TRIM

REMOVAL

1. Remove upper B-pillar trim. Refer to Trim Panel.

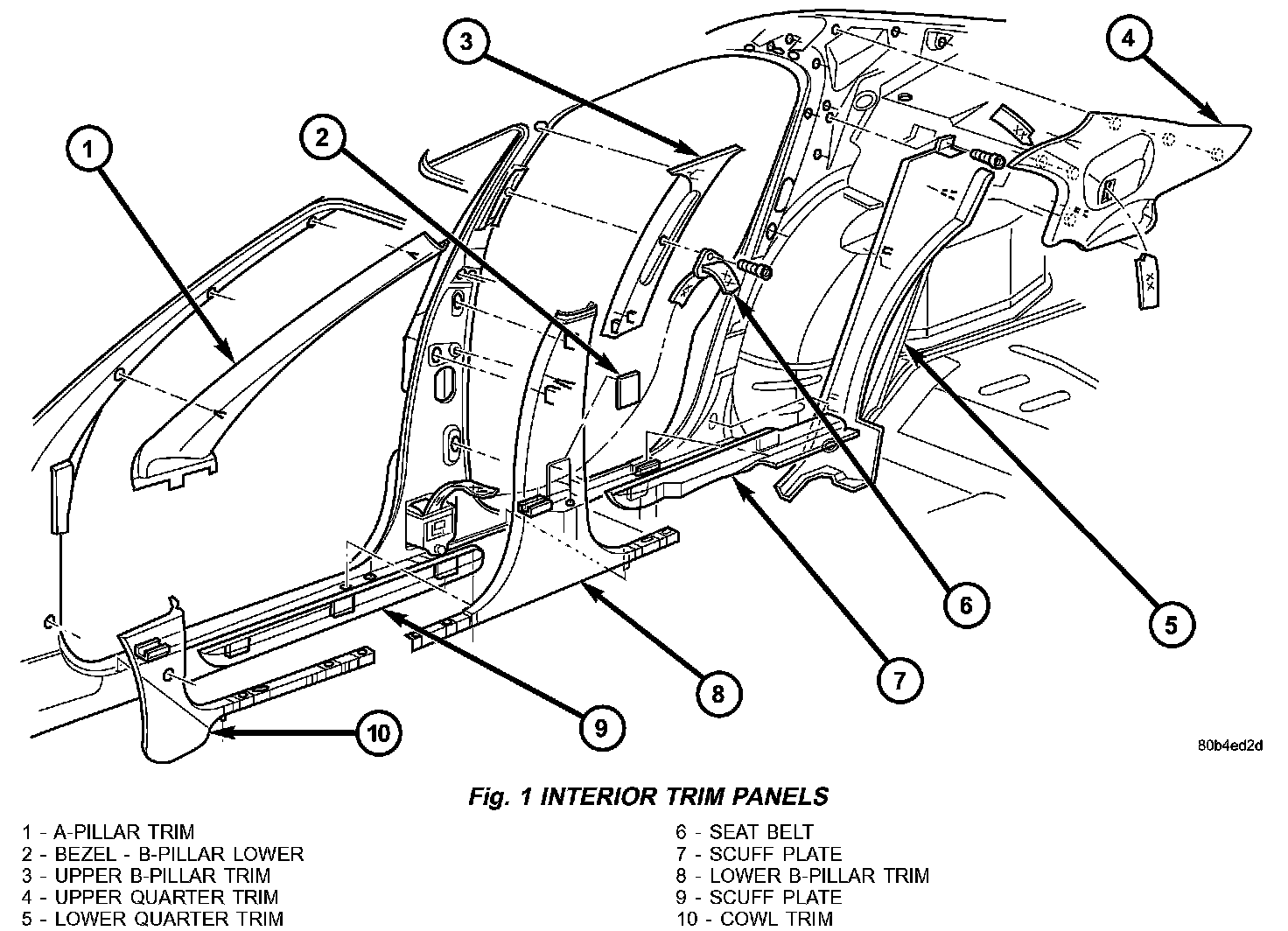

Fig. 1:

2. Disengage clips attaching seat belt access panel to lower B-pillar trim (Fig. 1).
3. Remove scuff plates. Refer to Trim Panel.
4. Remove the screws attaching the trim to the door sills.
5. Disengage clips attaching lower B-pillar trim to B-pillar.
6. Route seat belt webbing through access hole in lower B-pillar trim.
7. Remove lower B-pillar trim from vehicle.

INSTALLATION

1. Place lower B-pillar trim into position.
2. Route seat belt webbing through access hole in lower B-pillar trim.
3. Engage clips attaching lower B-pillar trim to B-pillar.
4. Install the screws attaching the trim to the door sills.
5. Install scuff plates.
6. Engage clips attaching seat belt access panel to lower B-pillar trim.
7. Install upper B-pillar trim.
