Right Lower Instrument Panel Trim Replacement

REMOVAL
1. Remove instrument panel center bezel.

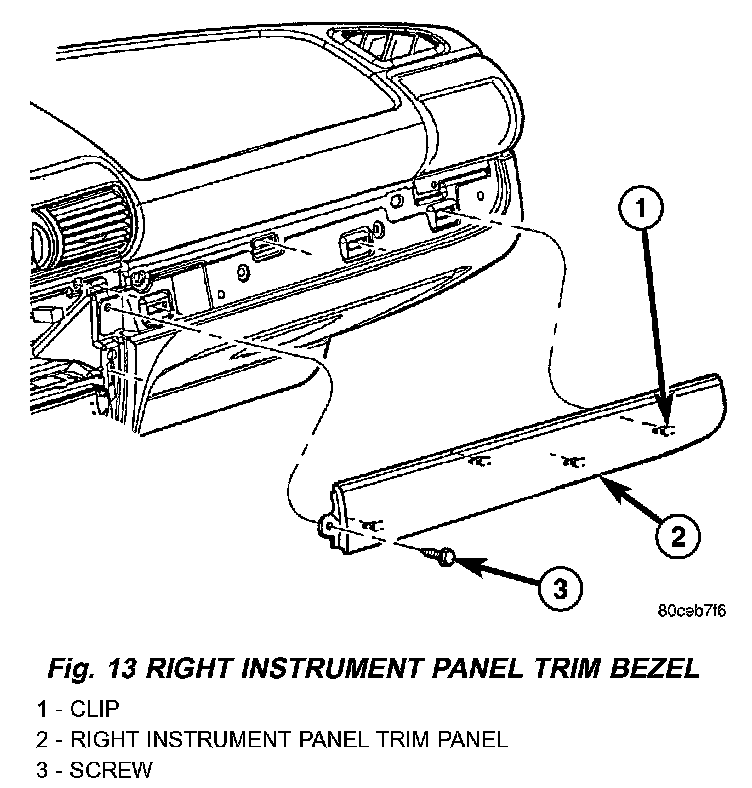

Fig.13 Right Instrument Panel Trim Bezel:

2. Remove the one retaining screw located on the right side of the center stack, behind the center bezel(Fig. 13).
3. Using a trim stick (special tool #C-4755) or equivalent, gently pry out on the right instrument panel trim bezel and remove.

INSTALLATION
1. Position the right instrument panel trim bezel over retaining slots and firmly snap into place.
2. Install the one retaining screw located on the right side of the center stack, behind the center bezel.
3. Install the instrument panel center bezel.
