P1790





Symptoms:
P1790-FAULT IMMEDIATELY AFTER SHIFT

When Monitored and Set Condition: P1790-FAULT IMMEDIATELY AFTER SHIFT
When monitored: After a speed ratio error is stored.
Set condition: This code is set if the associated speed ratio code is stored within 1.3 seconds after a shift.

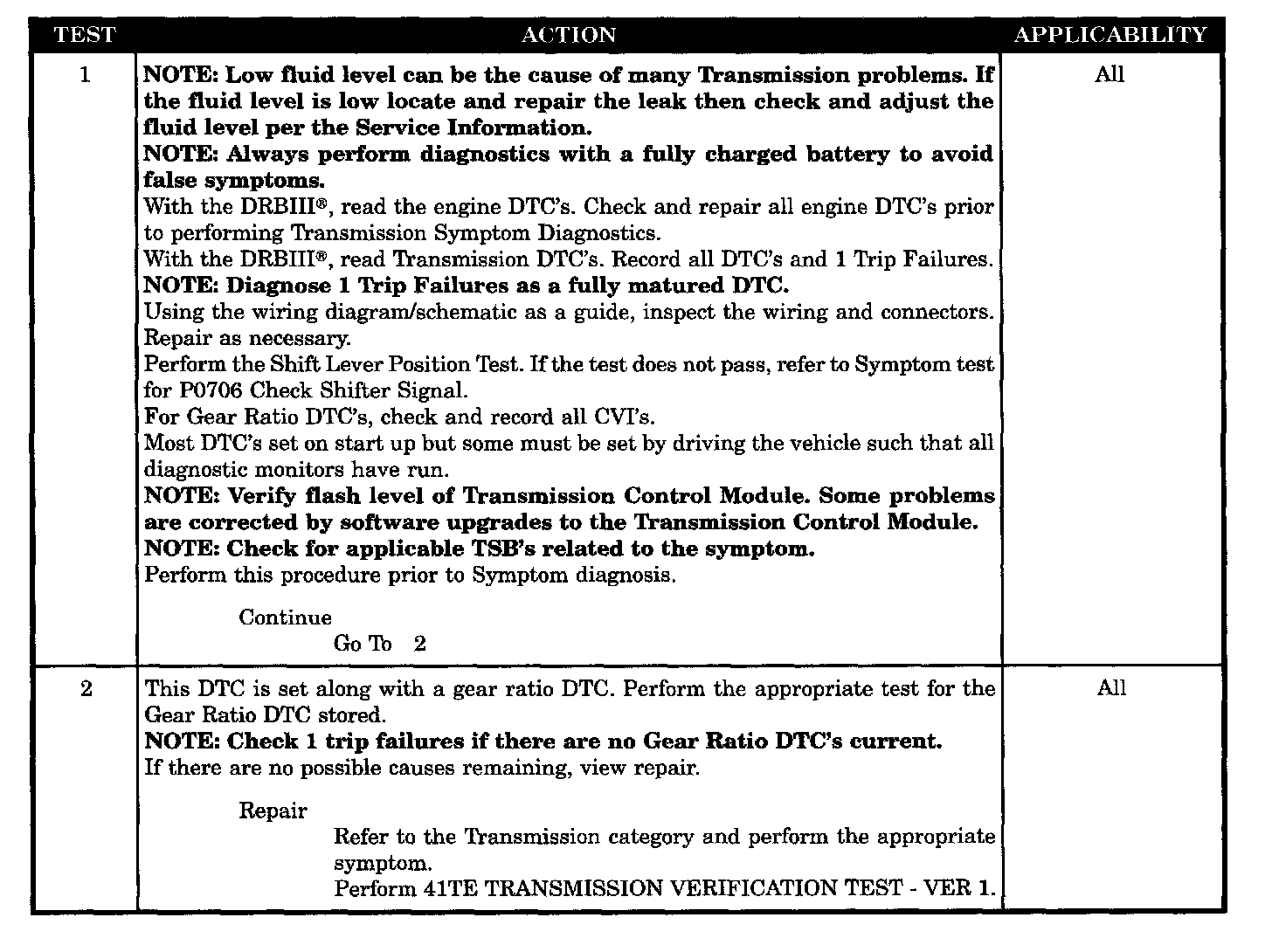

POSSIBLE CAUSES:
CONDITION P1790 PRESENT
