P1695

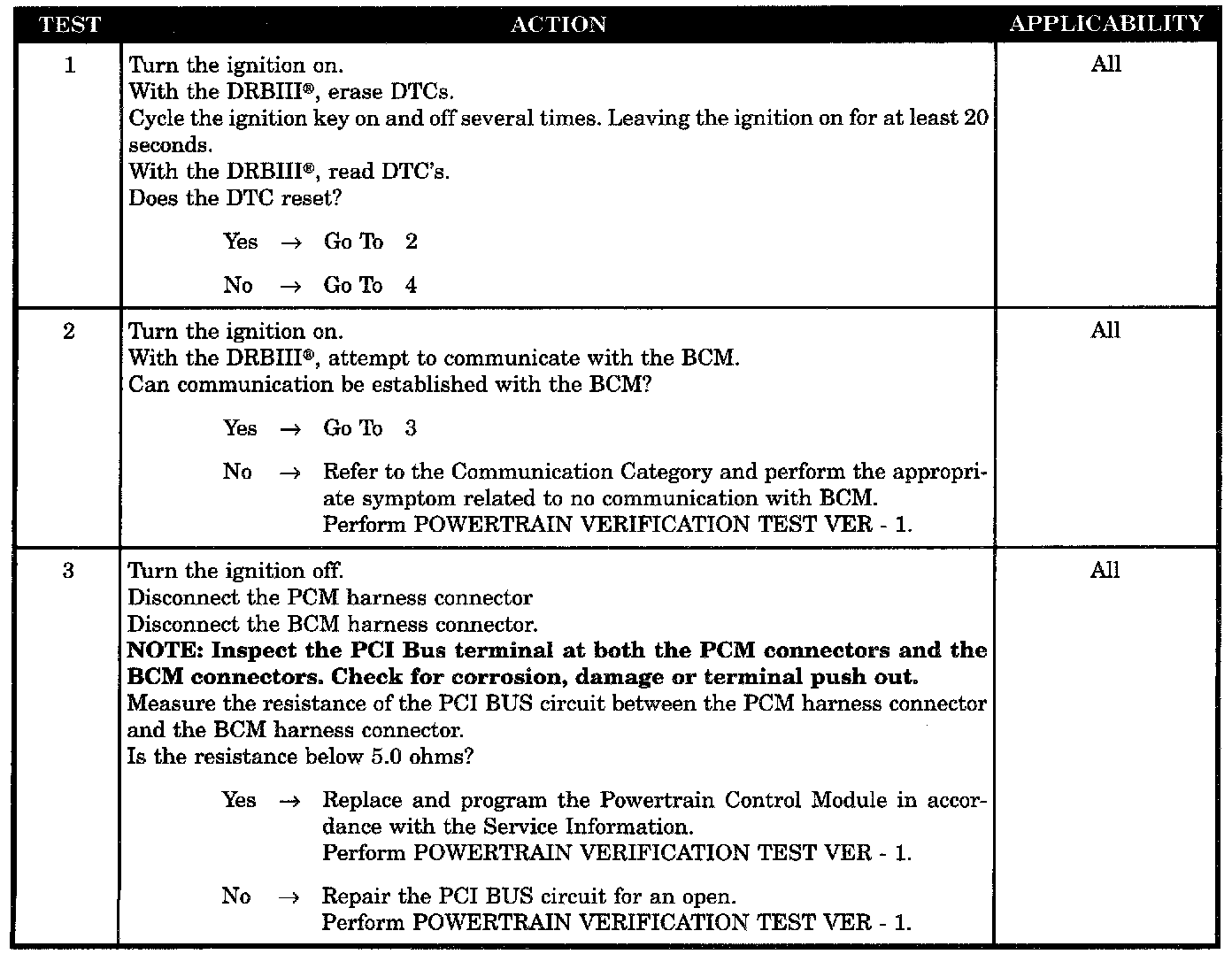

Tests 1 - 3:

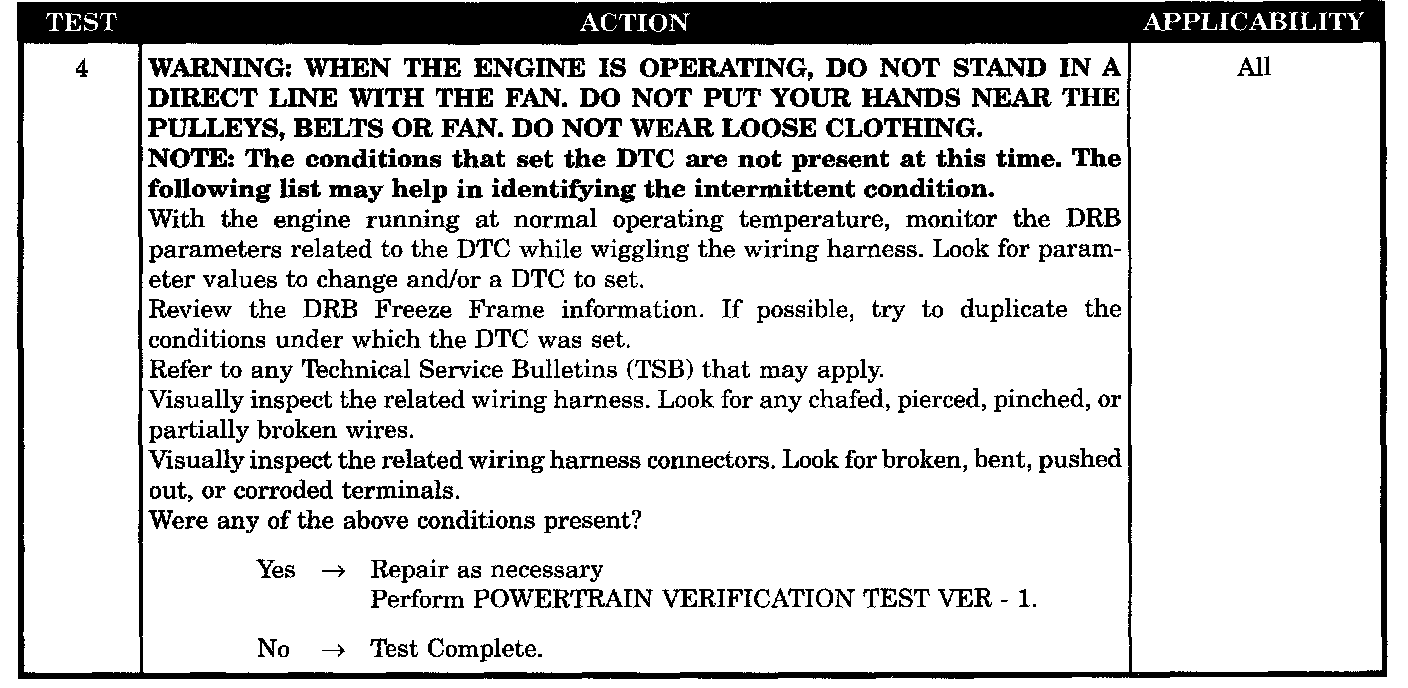

Test 4:

SYMPTOM
P1695-NO CCD/J185O MESSAGE FROM BODY CONTROL MODULE

WHEN MONITORED
With the ignition ON. Battery voltage greater than 10.0 volts.

SET CONDITION
No BUS messages recieved from the BCM for 20 seconds.

POSSIBLE CAUSES
- Intermittent Condition
- Communicate With BCM
- PCI Bus Circuit Open
- PCM
