P1594

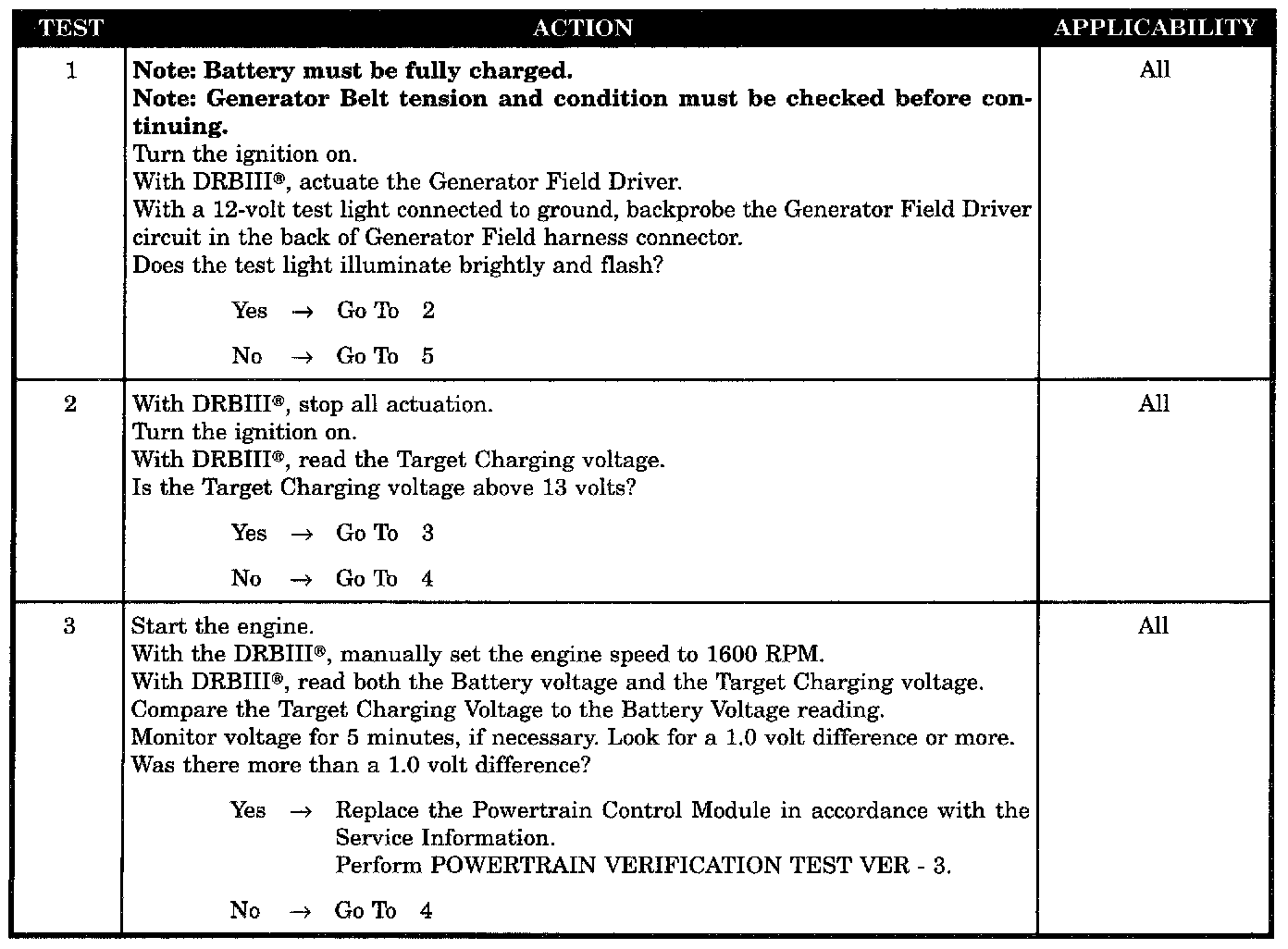

Tests 1 - 3:

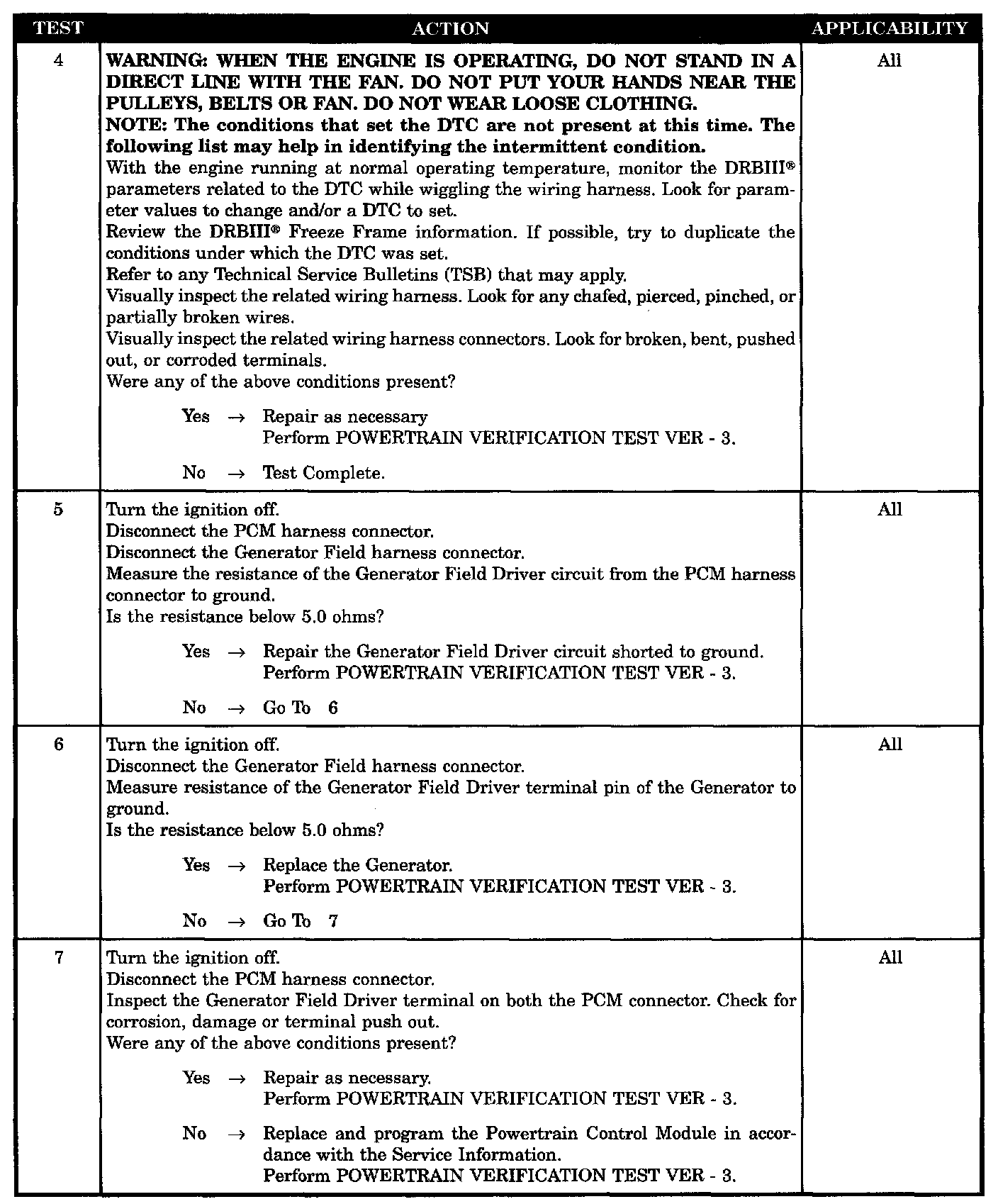

Tests 4 - 7:

SYMPTOM
P1594-CHARGING SYSTEM VOLTAGE TOO HIGH

WHEN MONITORED
The engine running. The engine speed greater than 380 RPM.

SET CONDITION
Battery voltage is 1 volt greater than desired system voltage.

POSSIBLE CAUSES
- Target Voltage Differs From Battery Voltage
- Intermittent Condition
- Generator Field Driver Circuit Shorted To Ground
- Generator Field
- Powertrain Control Module
- PCM Terminal Condition
