P1496

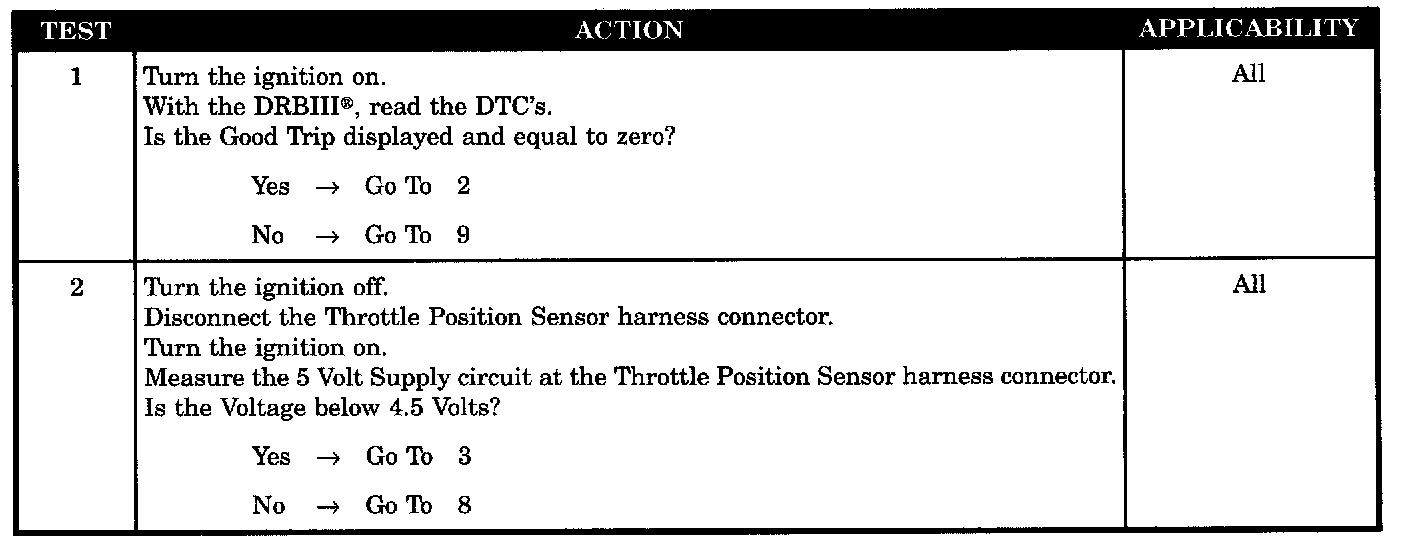

Tests 1 - 2:

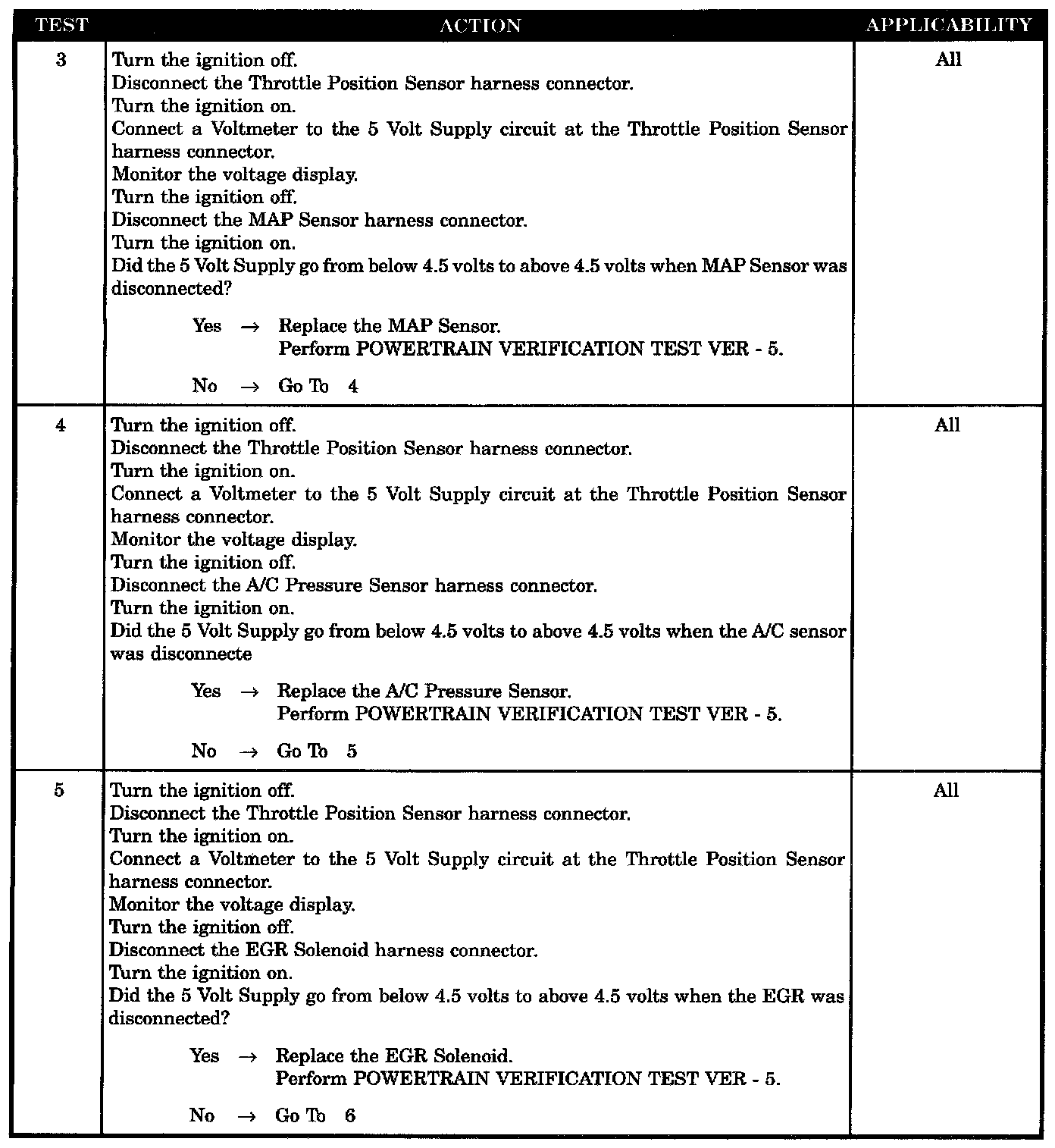

Tests 3 - 5:

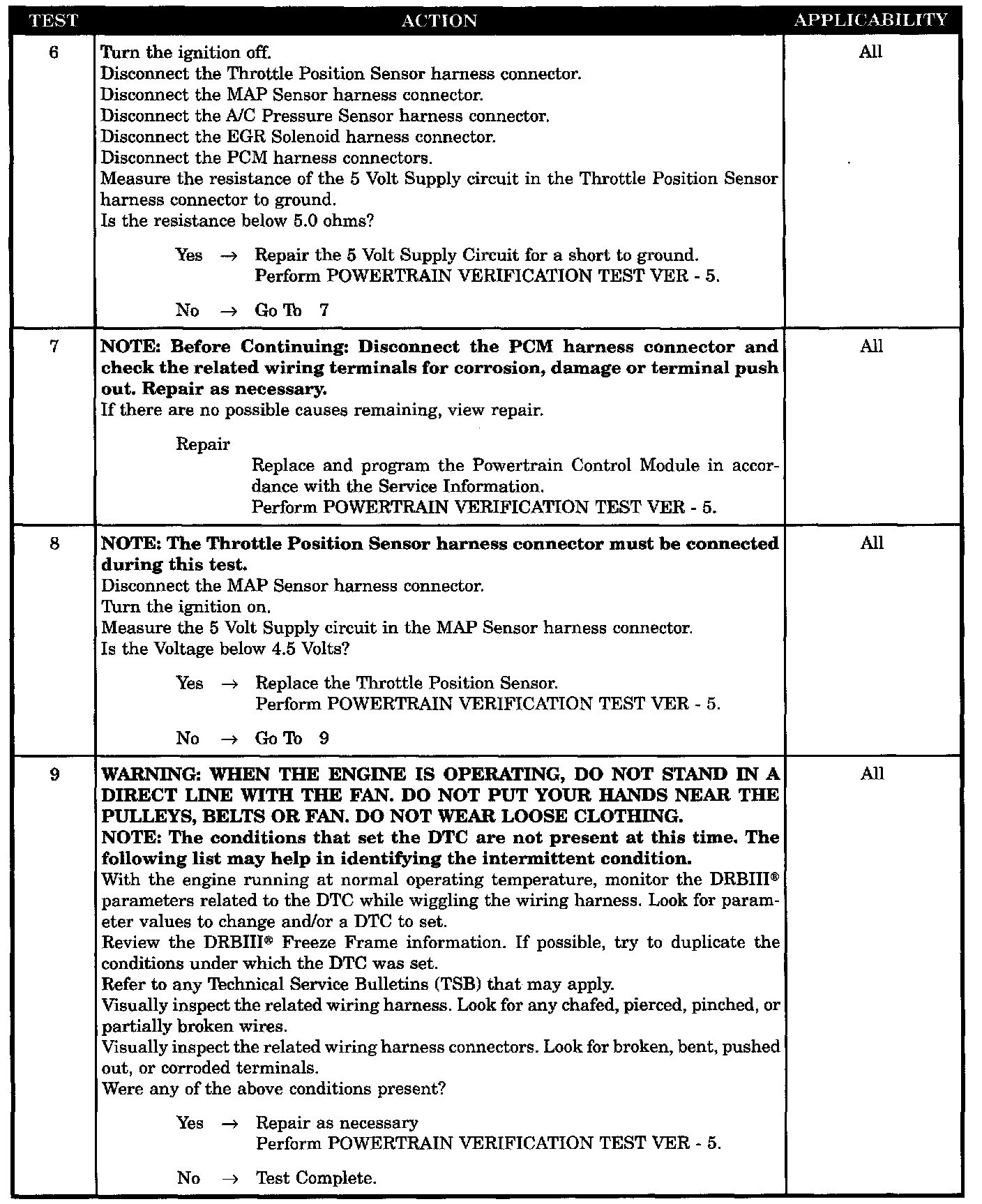

Tests 6 - 9:

SYMPTOM
P1496-5 VOLT SUPPLY, OUTPUT TOO LOW

WHEN MONITORED
With the ignition ON.

SET CONDITION
The 5-volt supply to the sensors is below 3.5 volts for 4 seconds.

POSSIBLE CAUSES
- Intermittent Condition
- Throttle Position Sensor
- MAP Sensor
- A/C Pressure Sensor
- EGR SOLENOID
- 5 Volt Supply Shorted To Ground
- PCM
