P1282

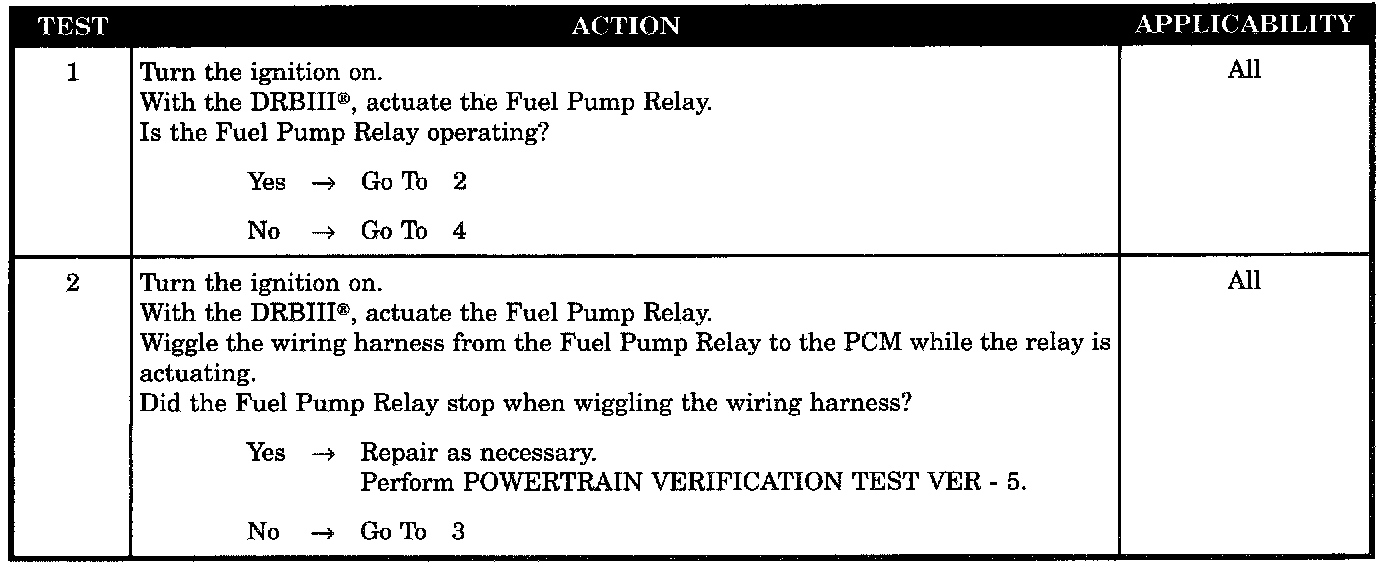

Tests 1 - 2:

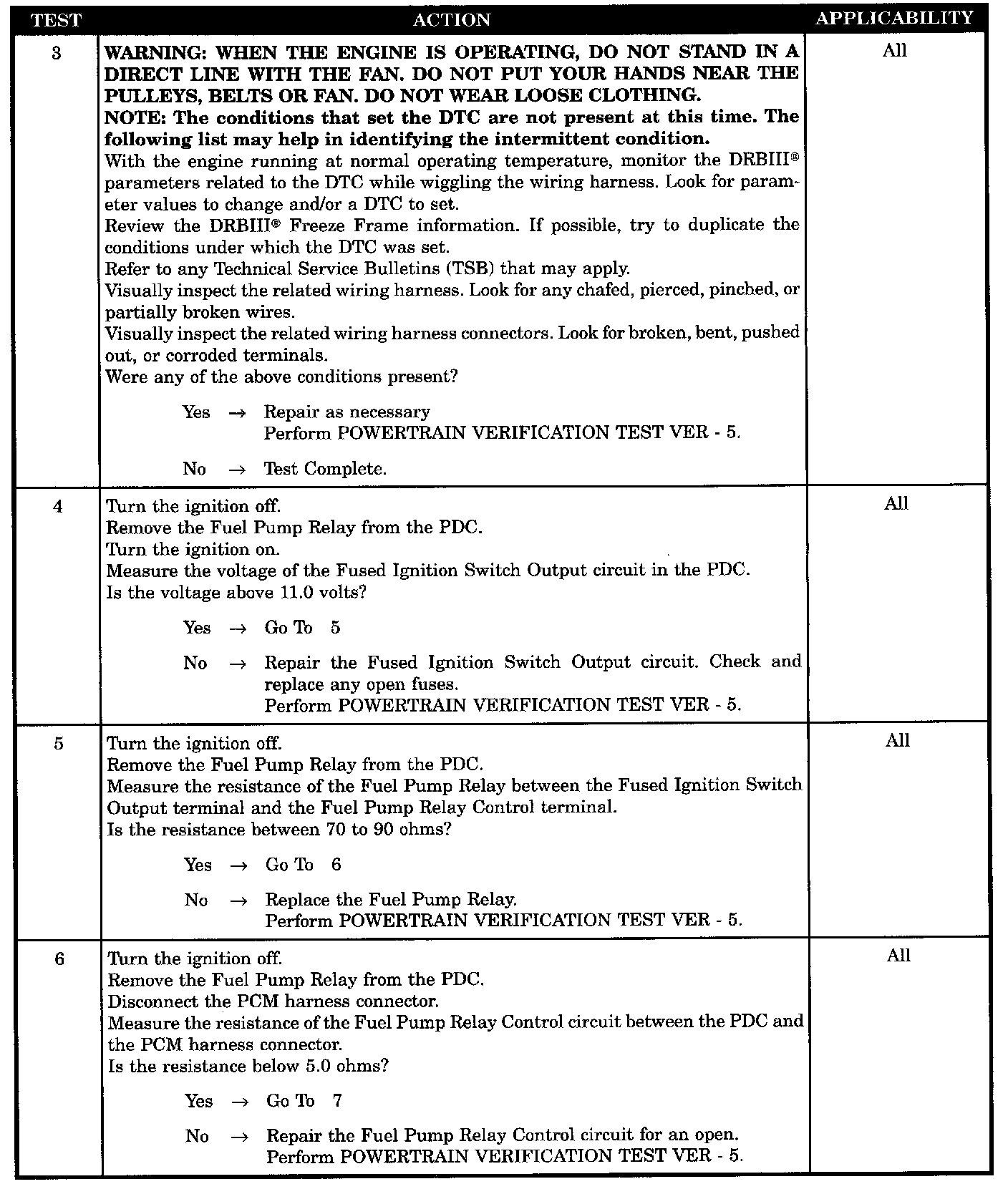

Tests 3 - 6:

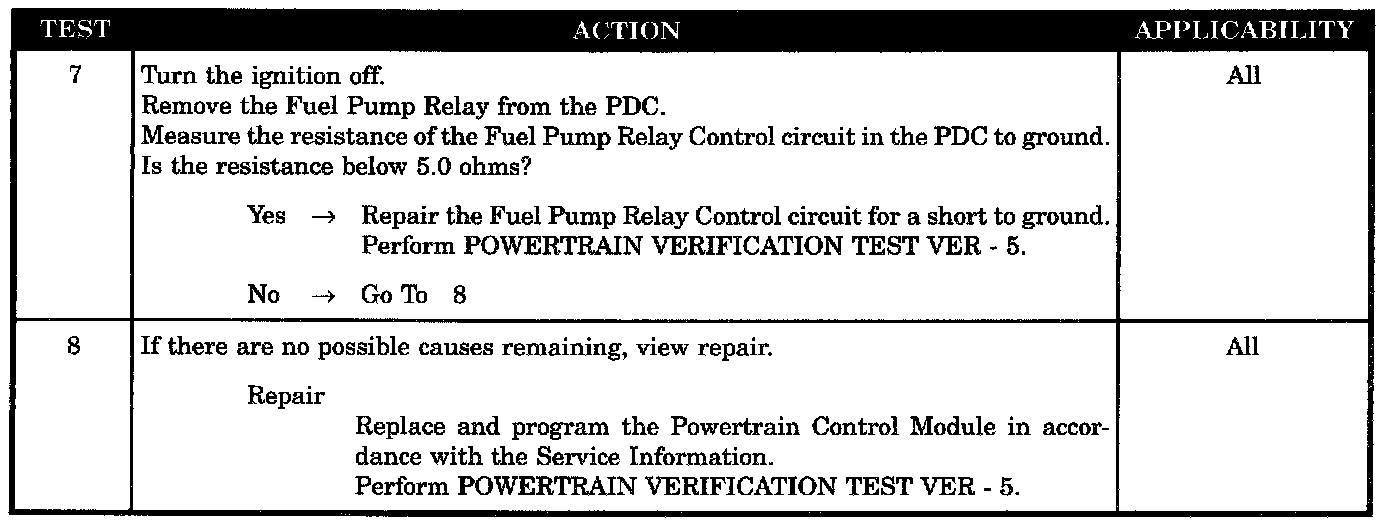

Tests 7 - 8:

SYMPTOM
P1282-FUEL PUMP RELAY CONTROL CIRCUIT

WHEN MONITORED
With the ignition ON. Battery voltage greater than 10.4 volts.

SET CONDITION
An open or shorted condition is detected in the fuel pump relay control circuit.

POSSIBLE CAUSES
- Fuel Pump Relay Intermittent Operation
- Intermittent Condition
- Fused Ignition Switch Output Circuit
- Fuel Pump Relay Resistance
- Fuel Pump Relay Control Circuit Open
- Fuel Pump Relay Control Circuit Short To Ground
- PCM
