P0703

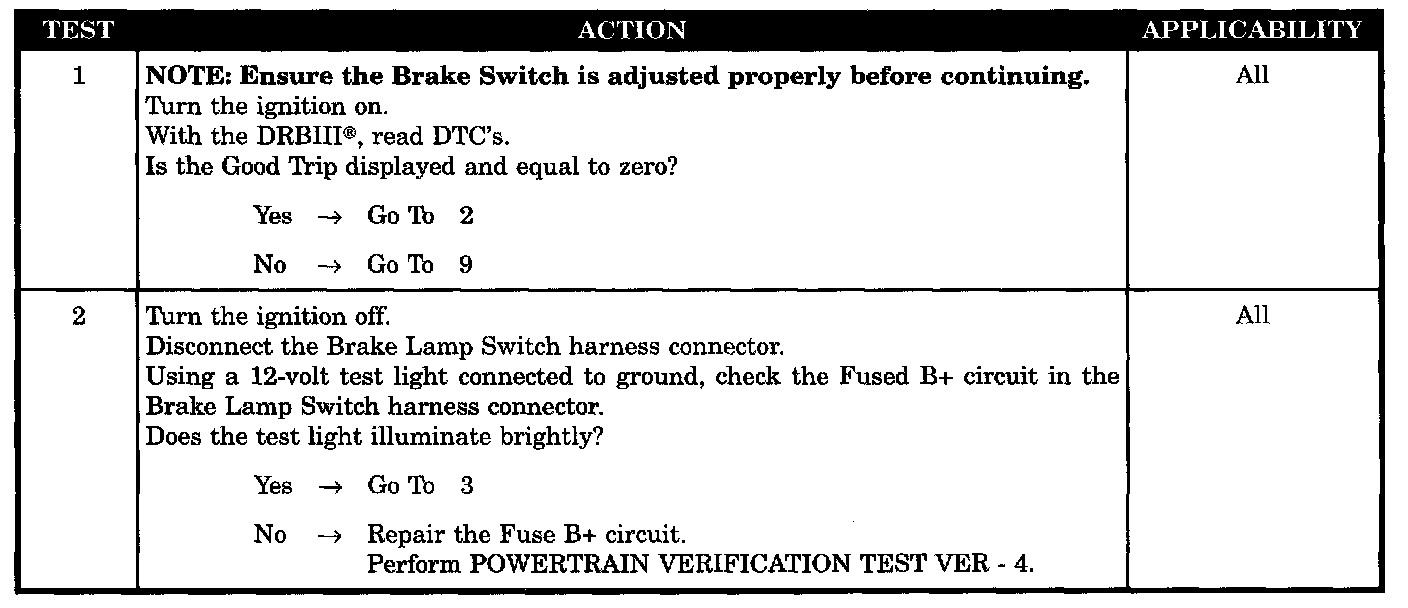

Tests 1 - 2:

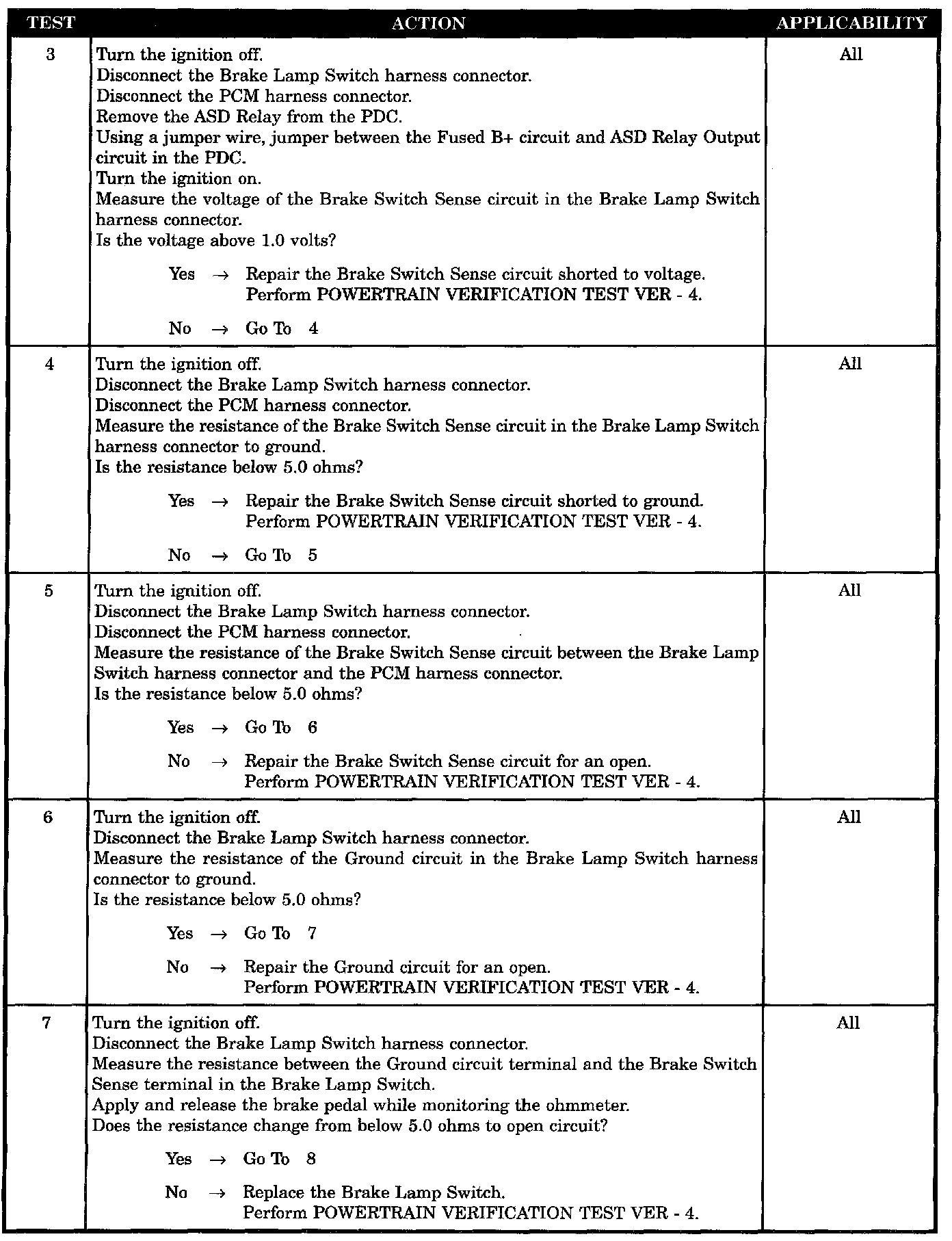

Tests 3 - 7:

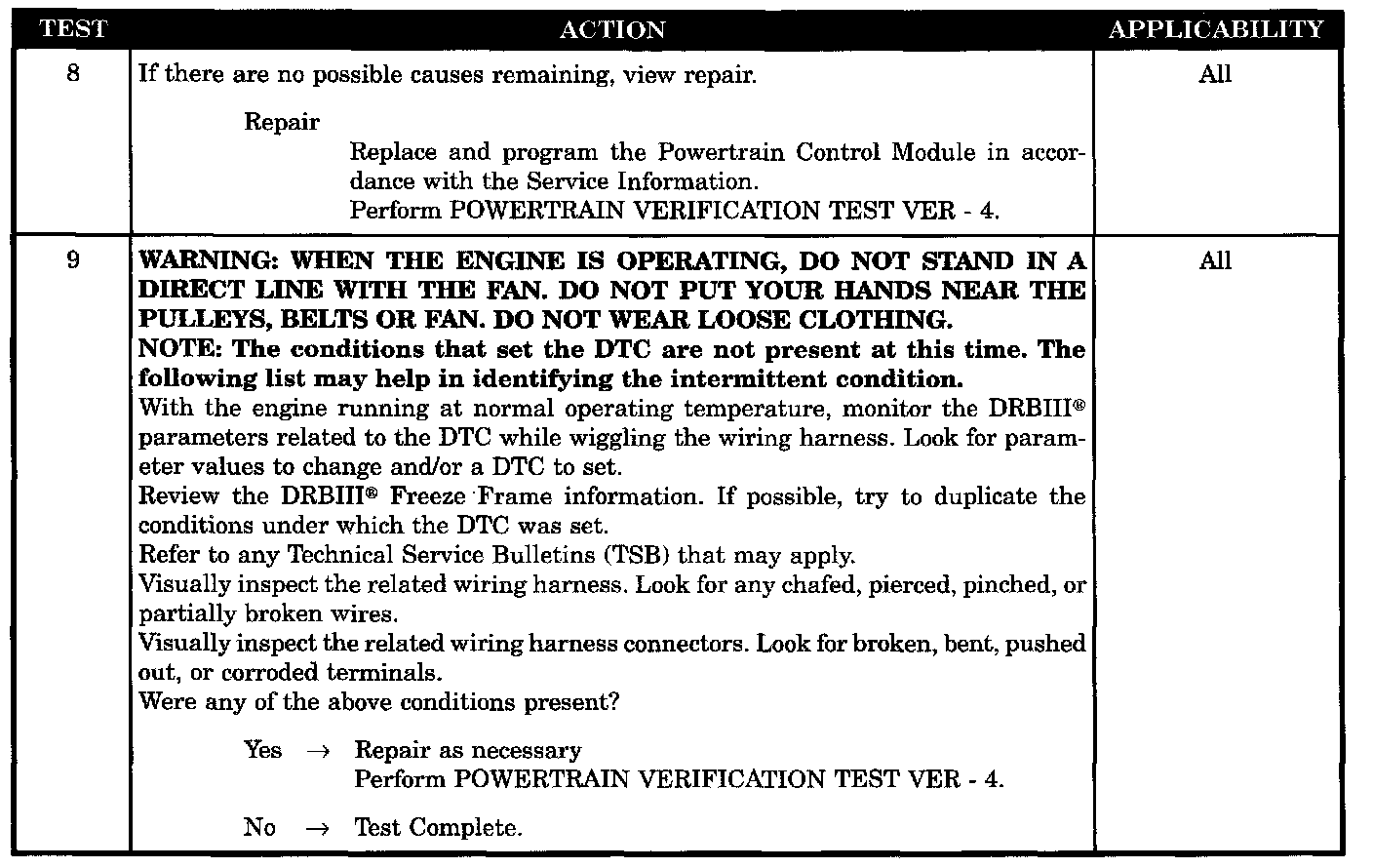

Tests 8 - 9:

SYMPTOM
P0703-BRAKE SWITCH SENSE CIRCUIT

WHEN MONITORED
TEST #1: Vehicle speed greater than 17 MPH to enable. TEST #2: Speed must be 0 and brake switch indicates ON.

SET CONDITION
TEST #1: If vehicle speed goes to 0 MPH without brake input. Condition must be repeated 9 times to set fault. Two trip fault. TEST #2: If vehicle speed go above 17 MHP for more than 6.4 seconds without a change in brake state. Condition must be repeat 9 times to set fault.

POSSIBLE CAUSES
- Intermittent Condition
- Fused B+ Circuit
- Brake Switch Sense Circuit Shorted To Voltage
- Brake Switch Sense Shorted To Ground
- Brake Switch Sense Circuit Open
- Ground Circuit Open
- Brake Lamp Switch Operation
- PCM
