P0645

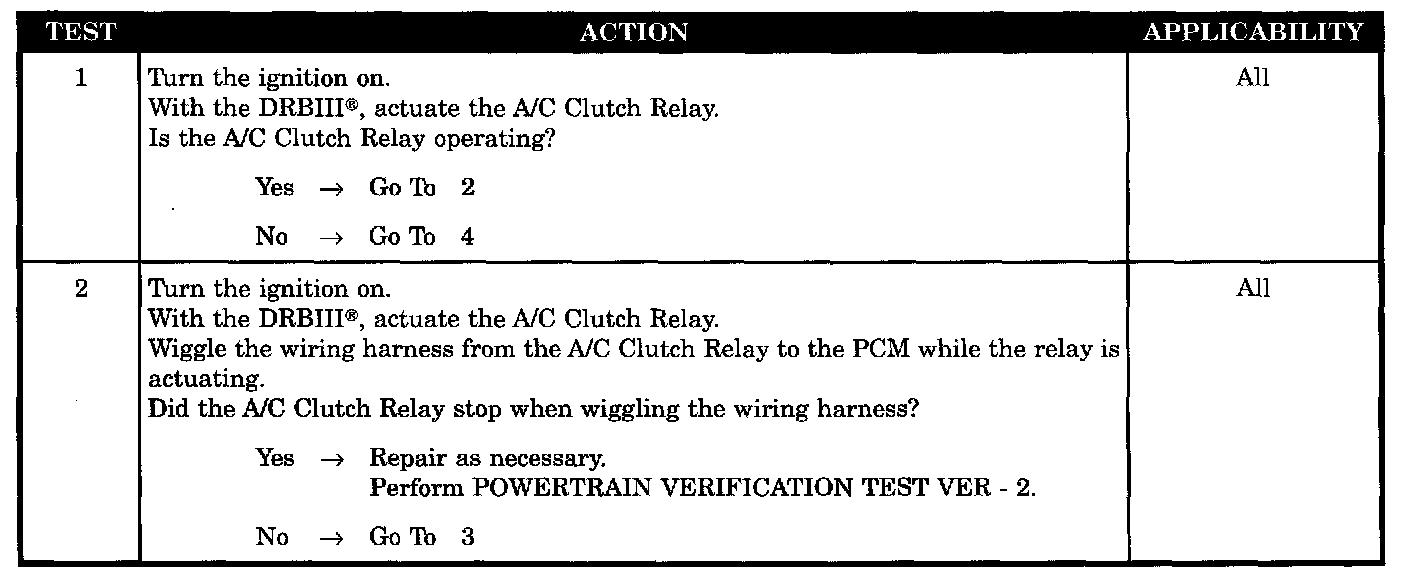

Tests 1 - 2:

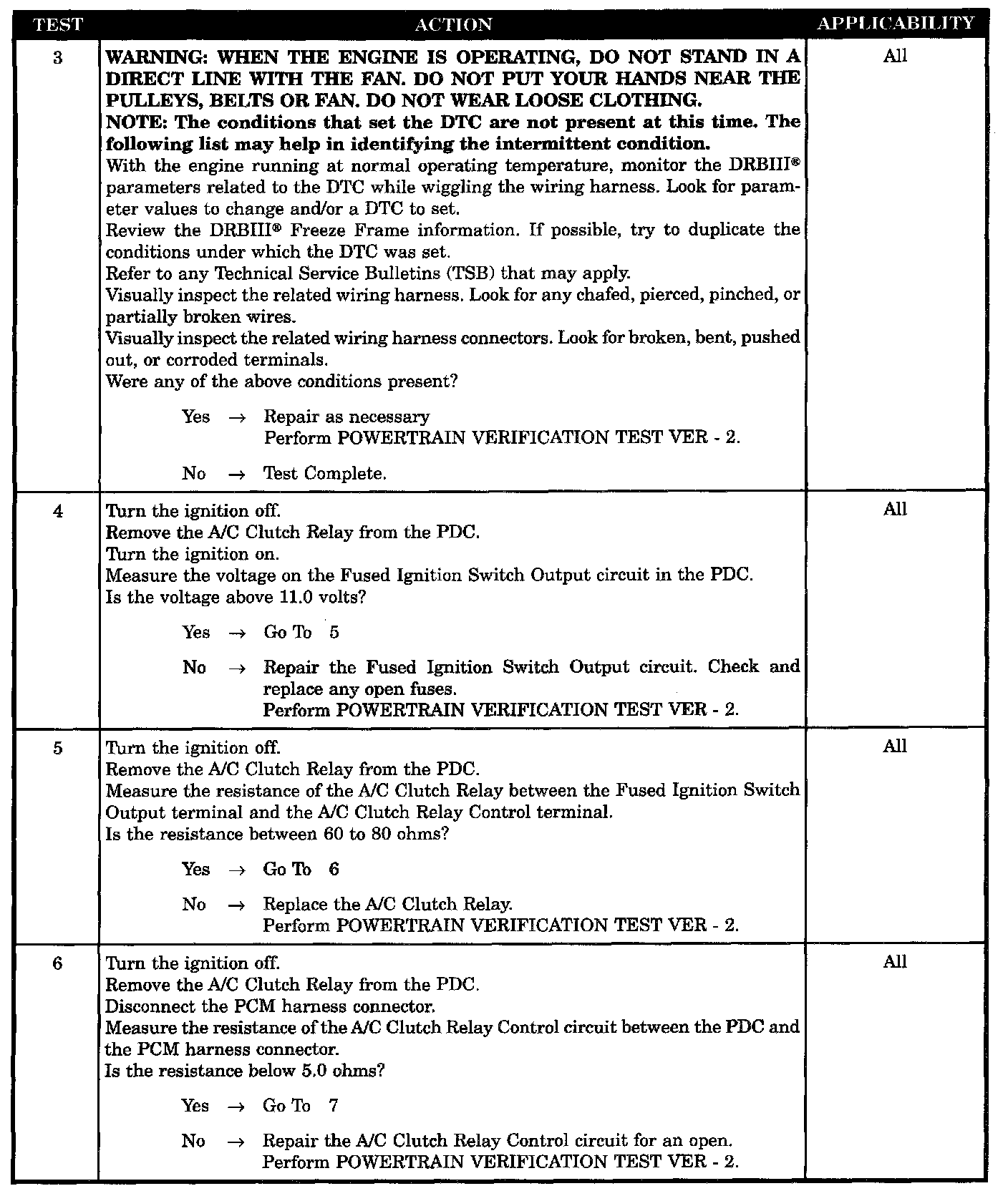

Tests 3 - 6:

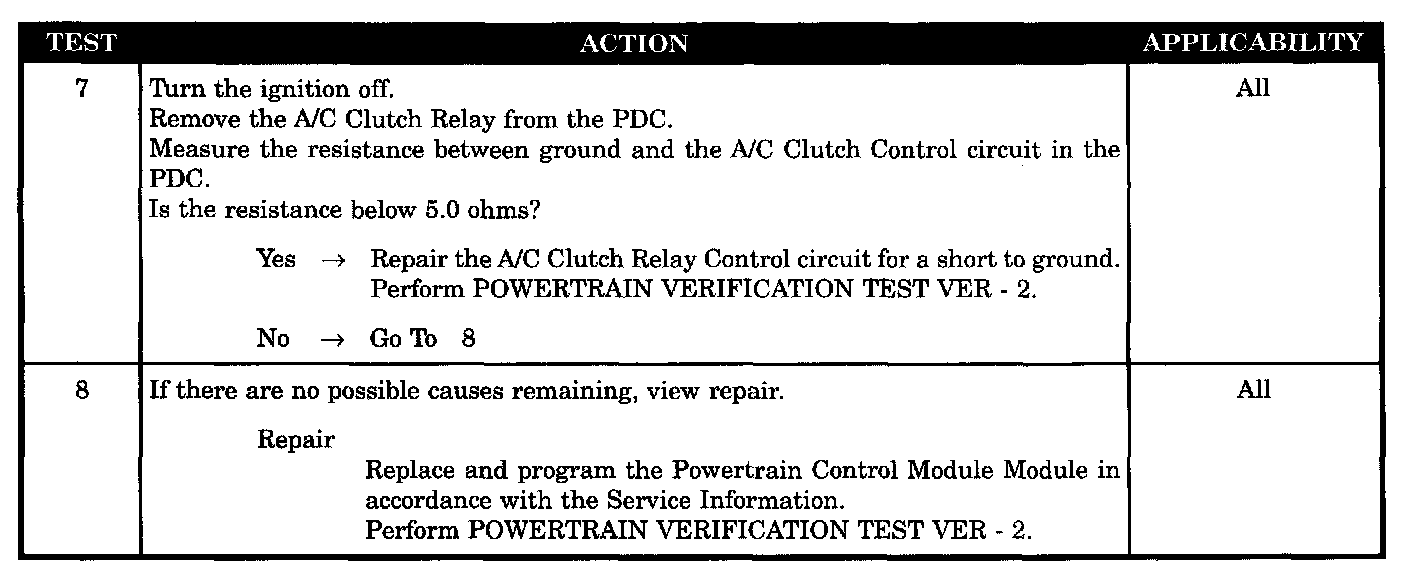

Tests 7 - 8:

SYMPTOM
P0645-A/C CLUTCH RELAY CKT

WHEN MONITORED
With the ignition ON. Battery voltage greater than 10 volts. A/C Switch ON.

SET CONDITION
An open or shorted condition is detected in the A/C clutch relay control circuit.

POSSIBLE CAUSES
- A/C Clutch Relay Intermittent Operation
- Intermittent Condition
- Fused Ignition Switch Output Circuit
- A/C Clutch Relay Resistance
- A/C Clutch Relay Control Circuit Open
- A/C Clutch Relay Control Circuit Short To Ground
- PCM
