P0122

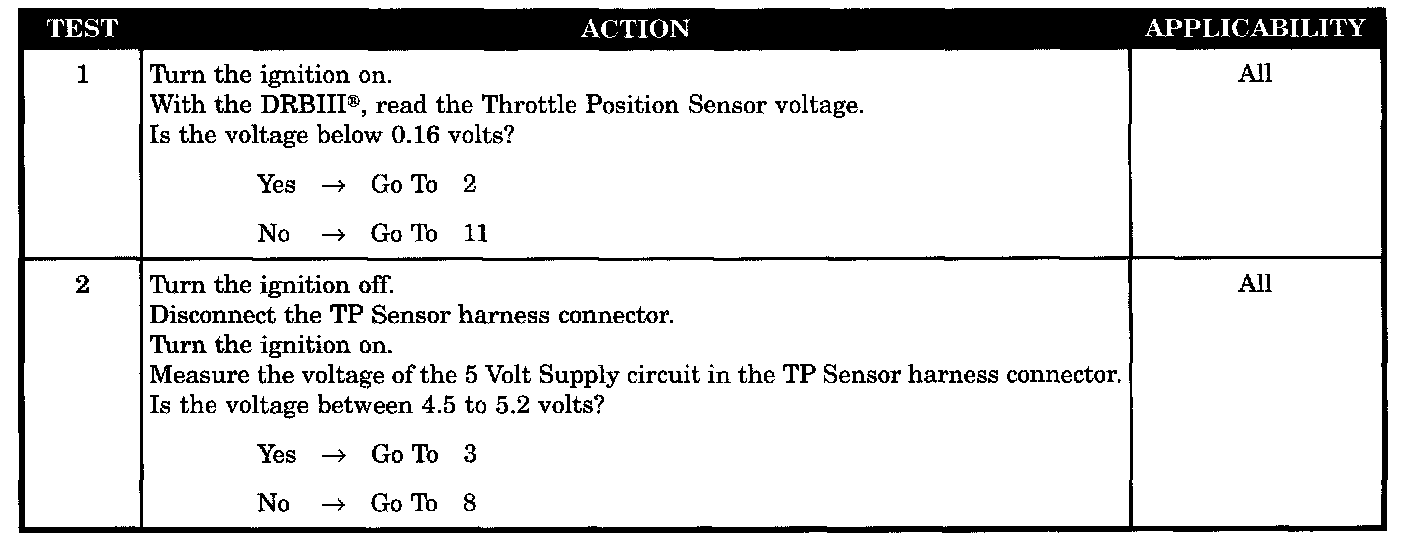

Tests 1 - 2:

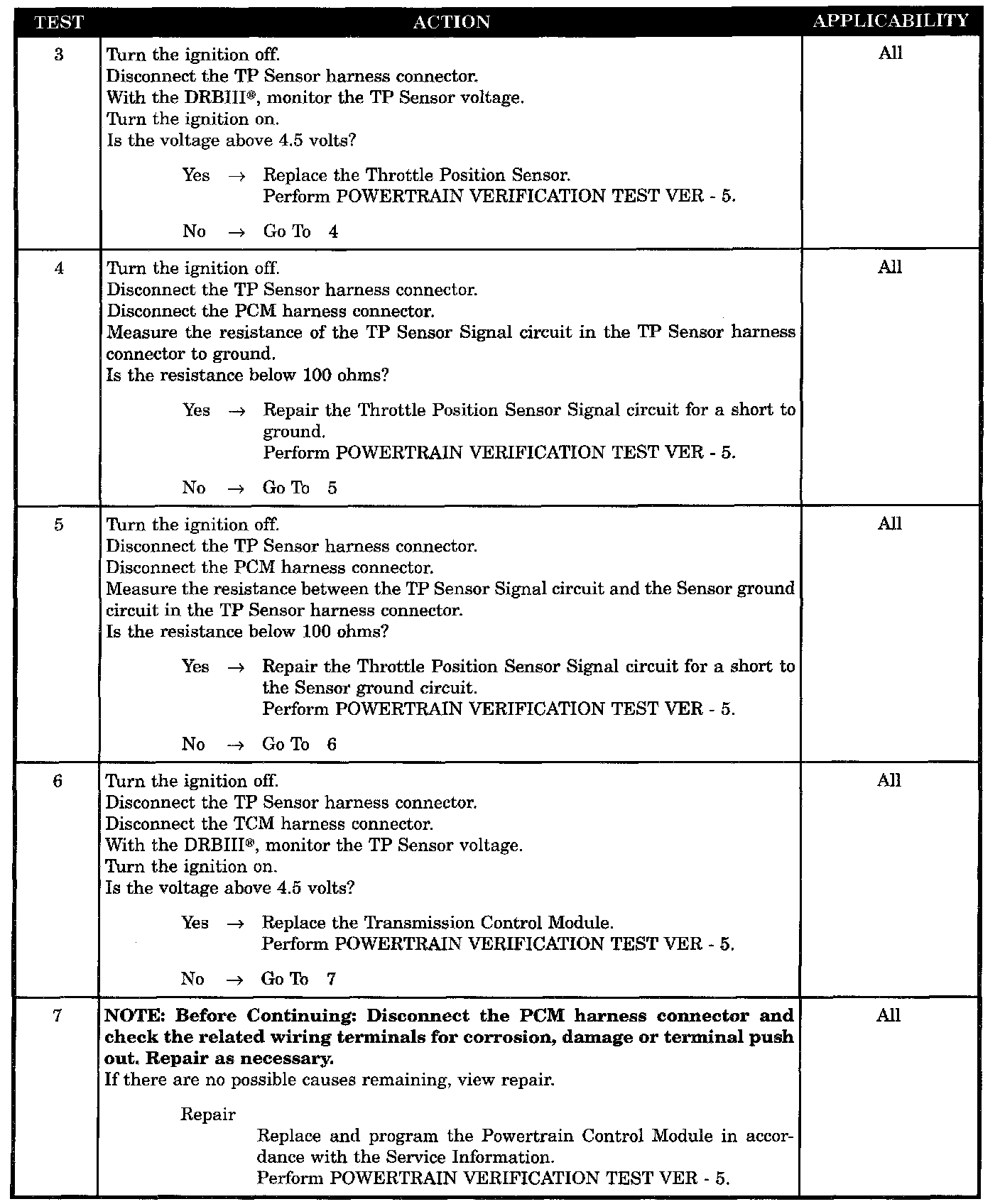

Tests 3 - 7:

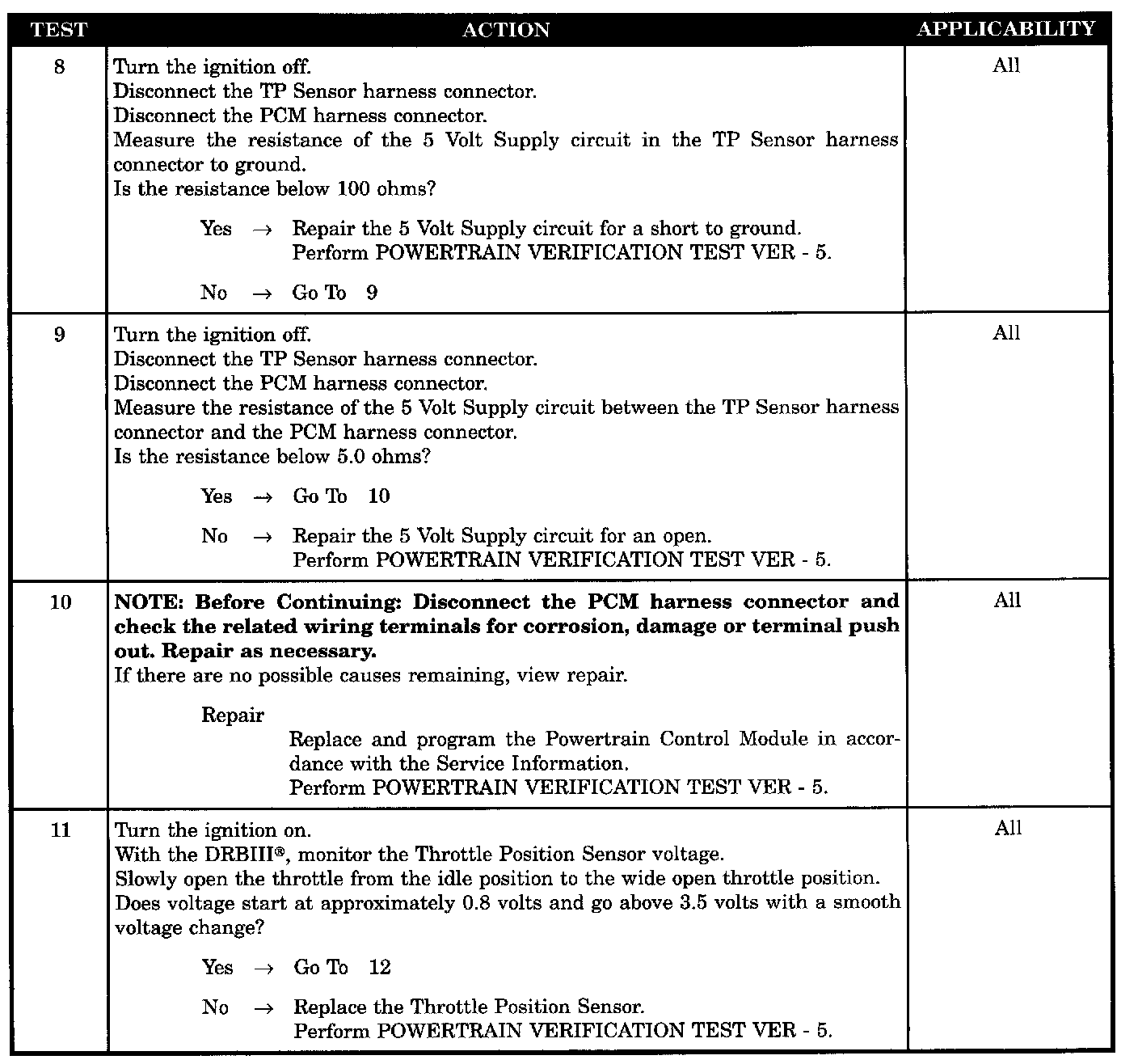

Tests 8 - 11:

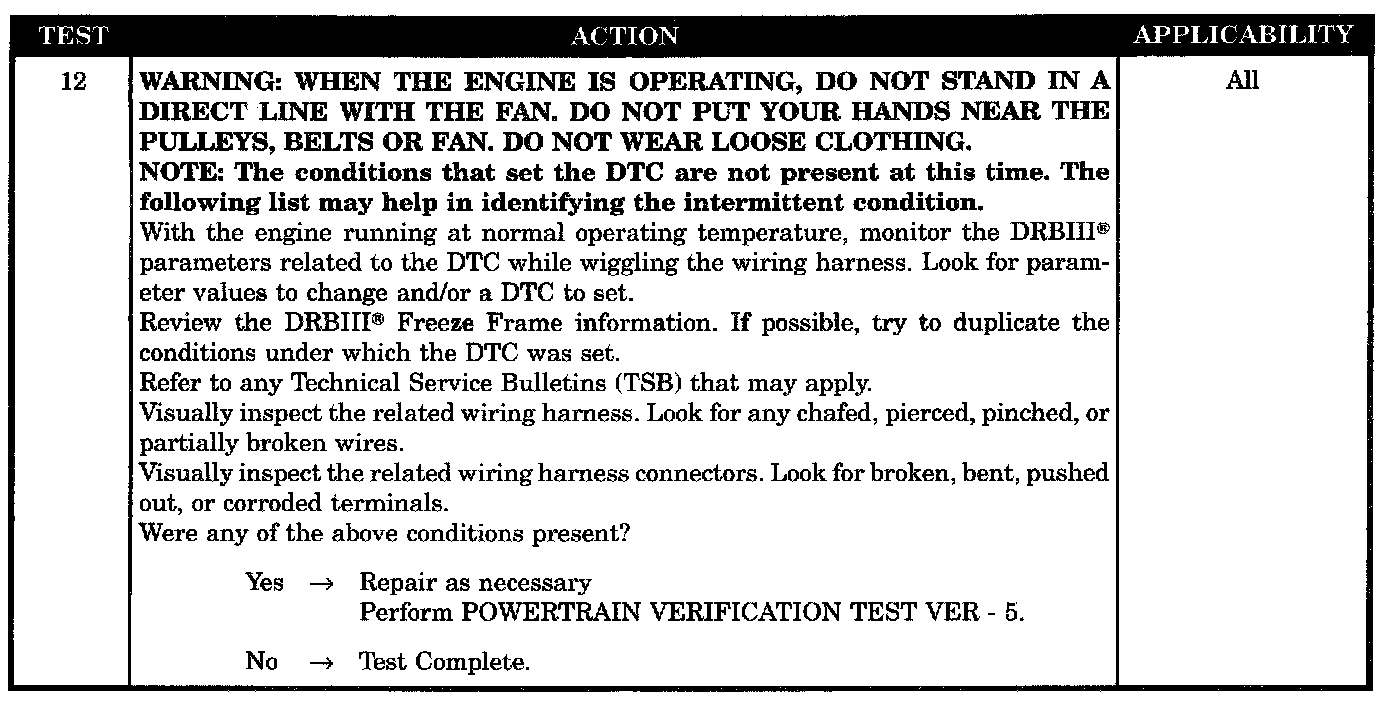

Test 12:

SYMPTOM
P0122-THROTTLE POSITION SENSOR VOLTAGE LOW

WHEN MONITORED
With the ignition ON. Battery voltage greater than 10 volts

SET CONDITION
Throttle Position Sensor voltage at the PCM is less than 0.16 volt for 0.7 seconds.

POSSIBLE CAUSES
- Throttle Position Sensor Sweep
- Intermittent Condition
- 5 Volt Supply Circuit Shorted To Ground
- 5 Volt Supply Circuit Open
- TP Sensor Internal Failure
- Throttle Position Sensor Signal Circuit Shorted To Ground
- Throttle Position Sensor Signal Circuit Shorted To Sensor Ground Circuit
- TCM Internally Shorted TP Signal Circuit
- PCM 5 Volt Supply Circuit
- PCM TP Sensor Signal
