P0111

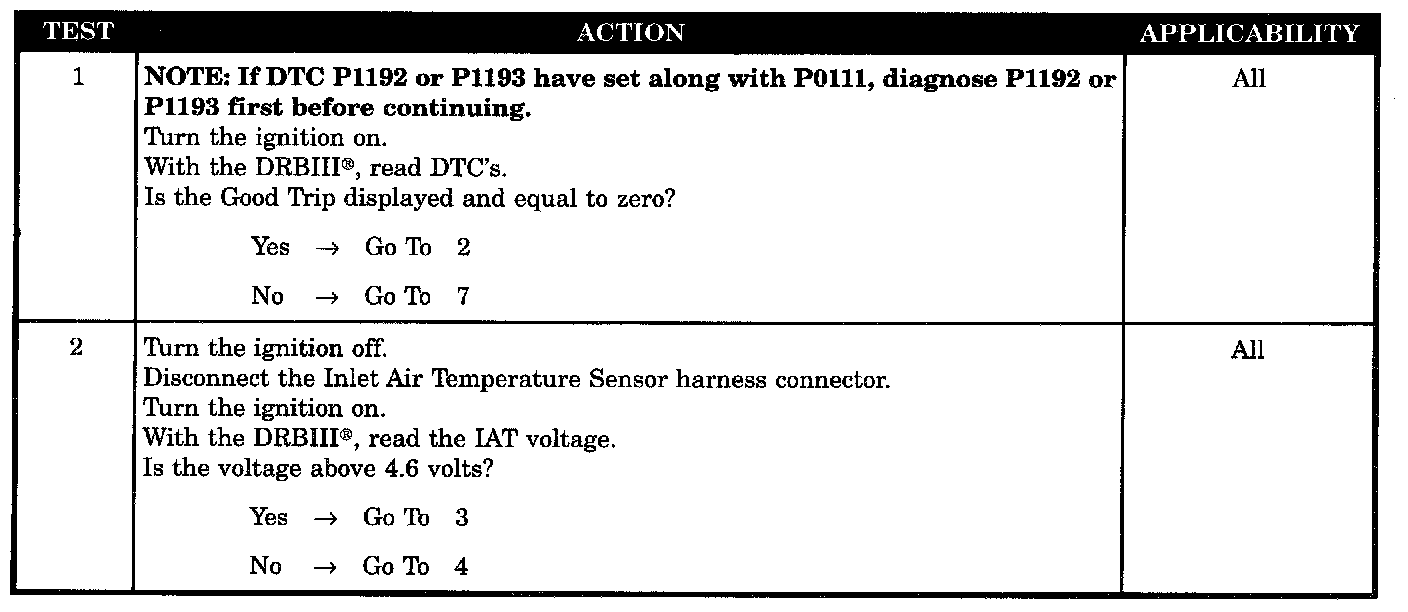

Tests 1 - 2:

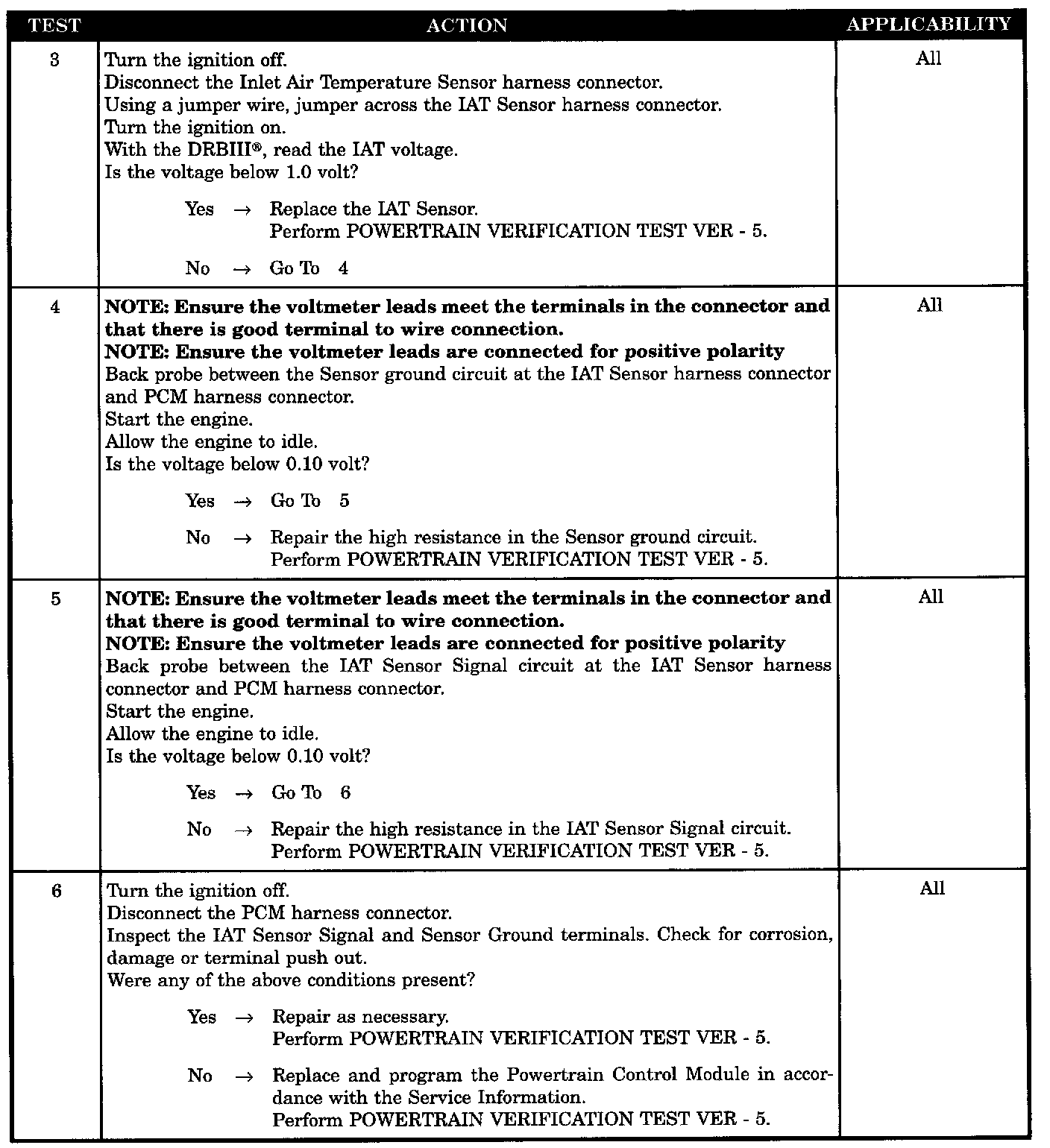

Tests 3 - 6:

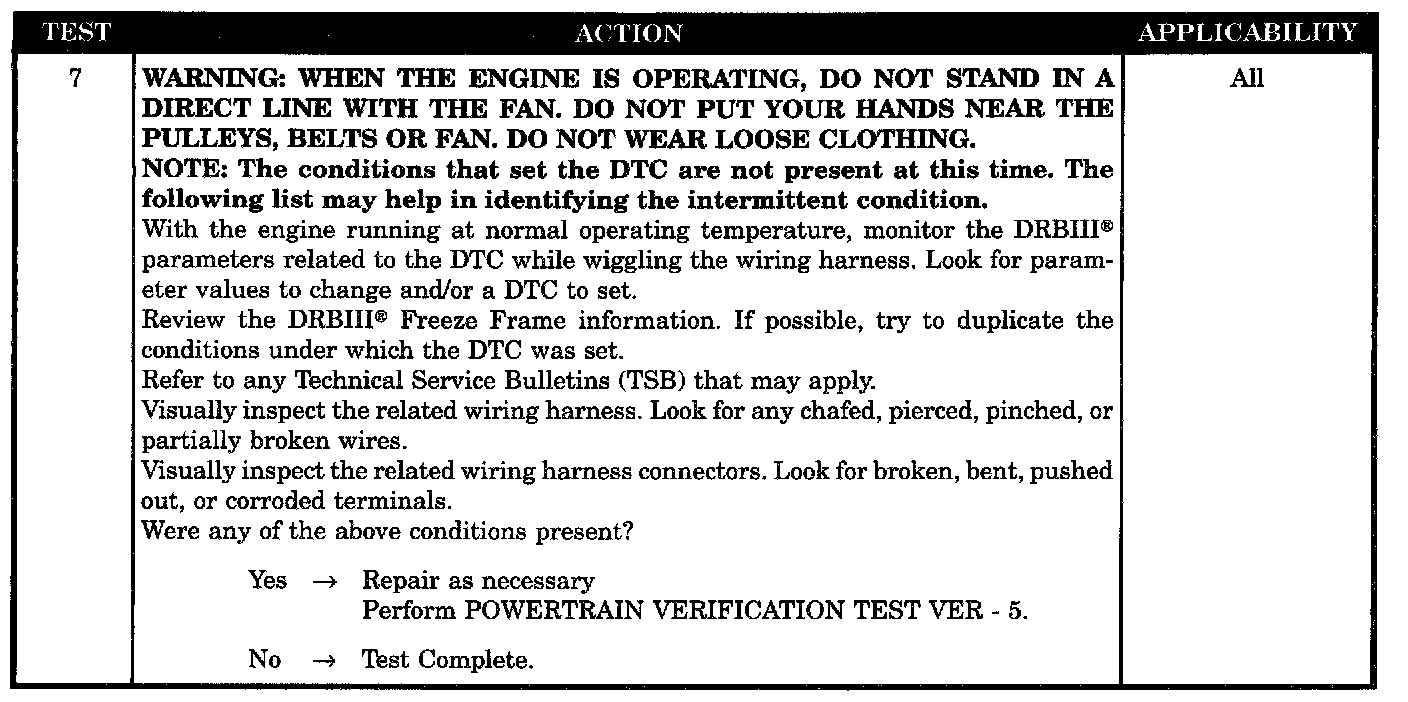

Test 7:

SYMPTOM
P0111-INTAKE AIR TEMP SENSOR PERFORMANCE

WHEN MONITORED
With the ignition ON. Coolant Temperature greater than 71 °C (160 °F) No Inlet Air Temperature Sensor Faults present (P1192 and P1193).

SET CONDITION
After 5 warm cycles have occurred (coolant increases from greater than 4.4 °C (40 °F) to a minimum of 71 °C (160 °F) and the odometer mileage has increased 196.6 miles and the Inlet Air Temperature has increased less than 3 °C (5.4 °F). Two trip fault.

POSSIBLE CAUSES
- Intermittent Condition
- IAT Sensor Voltage Below 1.0 Volts
- Sensor Ground Circuit Voltage Drop
- IAT Sensor Signal Circuit Voltage Drop
- PCM Terminal Condition
- PCM
