P0106

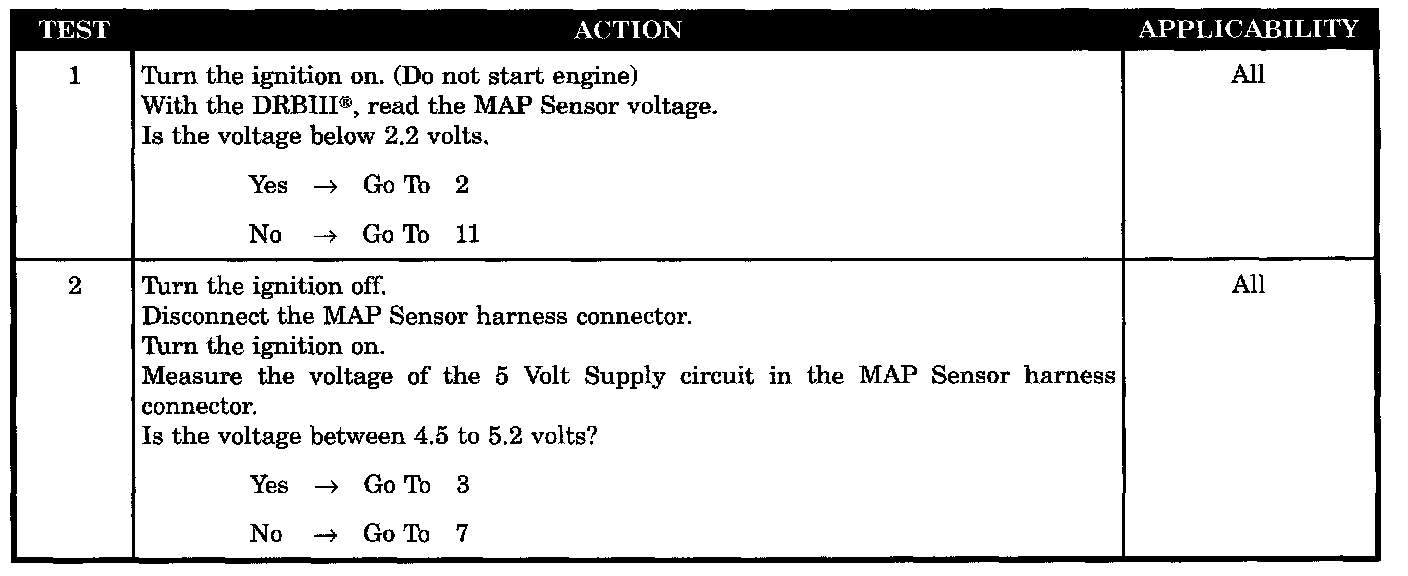

Tests 1 - 2:

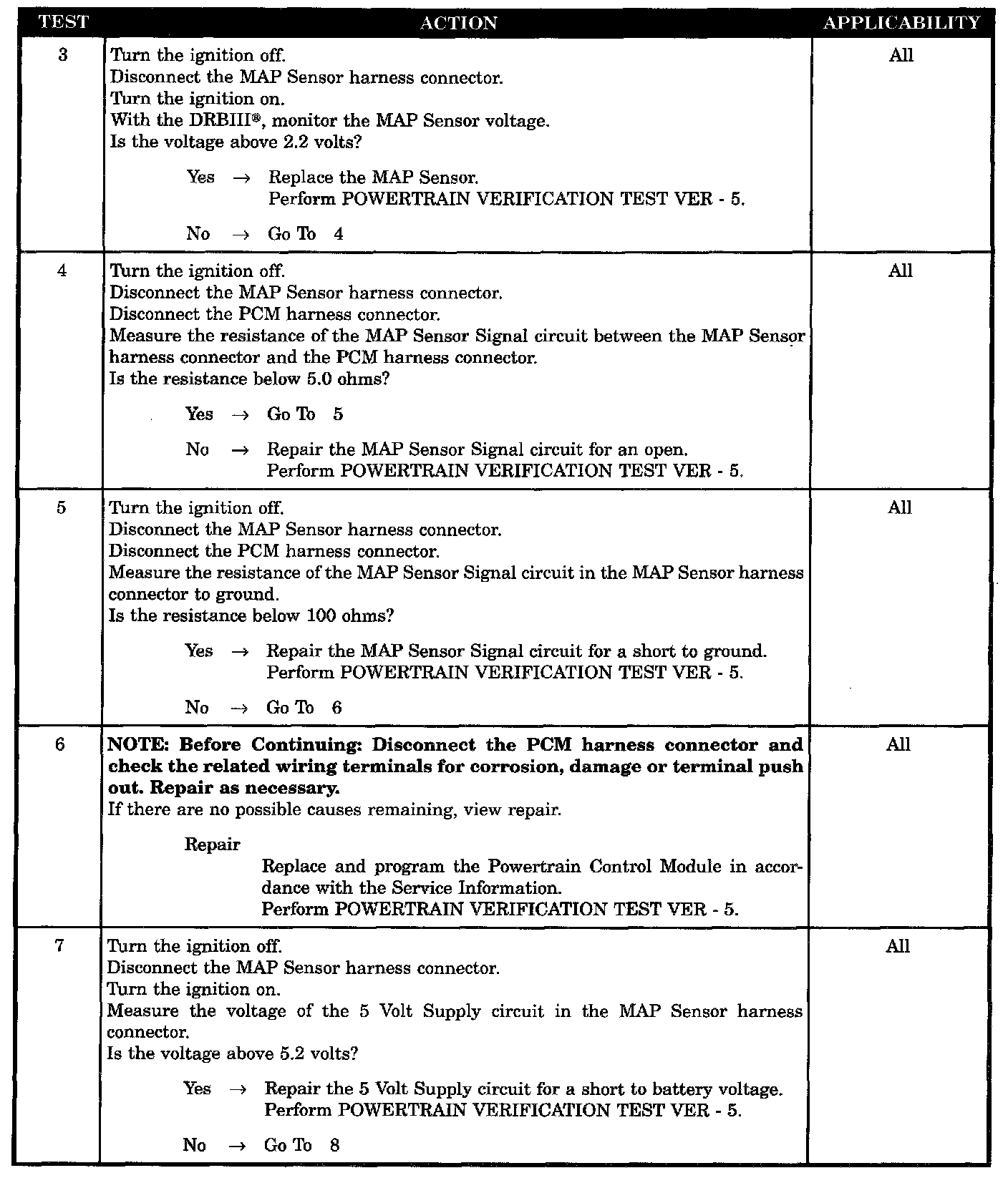

Tests 3 - 7:

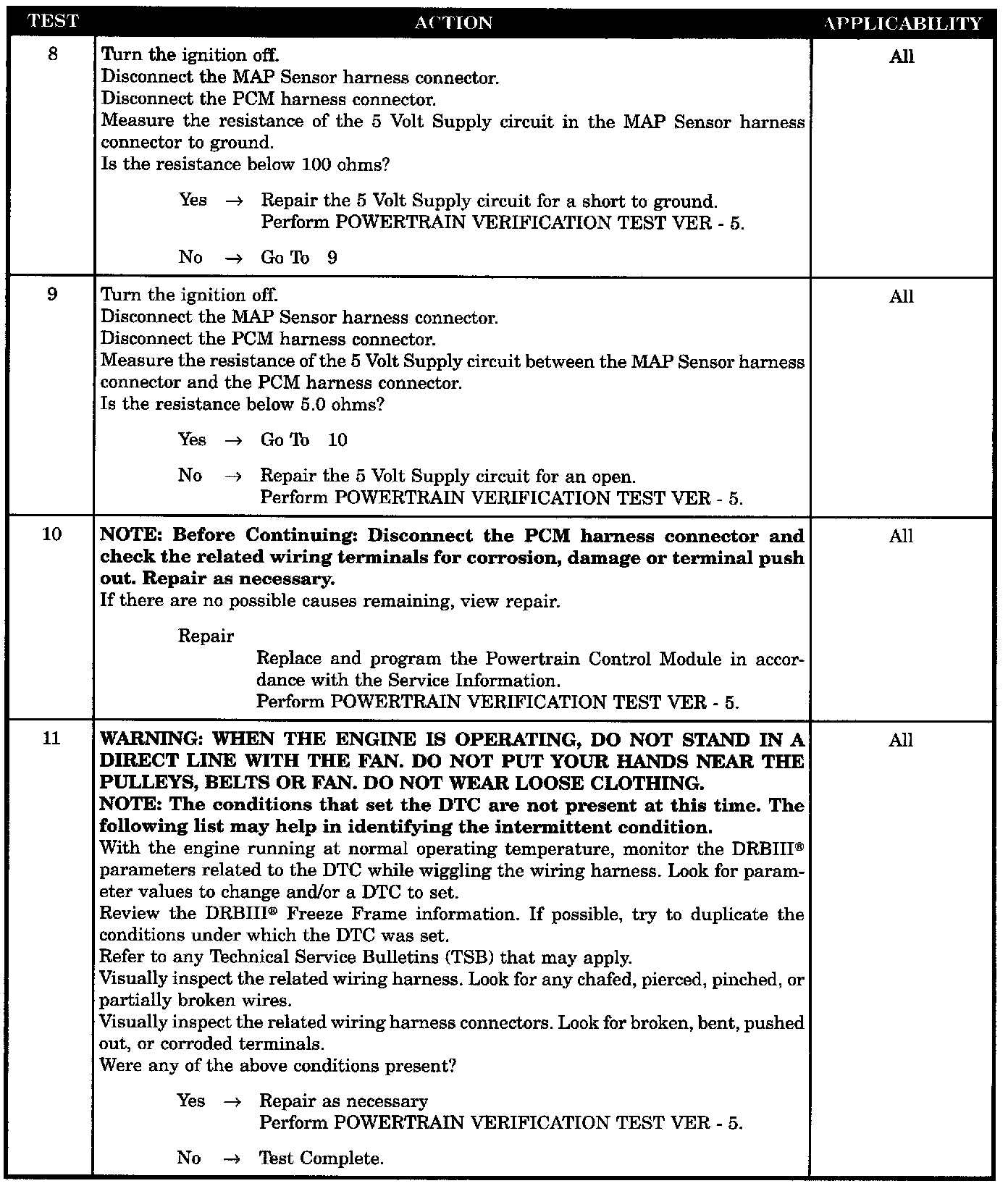

Tests 8 - 11:

SYMPTOM
P0106-BAROMETRIC PRESSURE OUT OF RANGE

WHEN MONITORED
With the ignition key ON. No Cam or Crank signal within 75 ms. Engine speed at less than 250 RPM.

SET CONDITION
The PCM senses the voltage from the MAP sensor to be less than 2.196 volts but above 0.0392 volts for 300 milliseconds.

POSSIBLE CAUSES
- Intermittent Condition
- 5 Volt Supply Circuit Shorted To Voltage
- 5 Volt Supply Circuit Shorted To Ground
- 5 Volt Supply Circuit Open
- MAP Sensor Internal Failure
- MAP Sensor Signal Circuit Open
- MAP Sensor Signal Circuit Shorted To Ground
- PCM 5 Volt Supply Circuit
- PCM MAP Sensor Signal
