Passenger Squib 2 Shorted to Ground

Test 1 - 2:

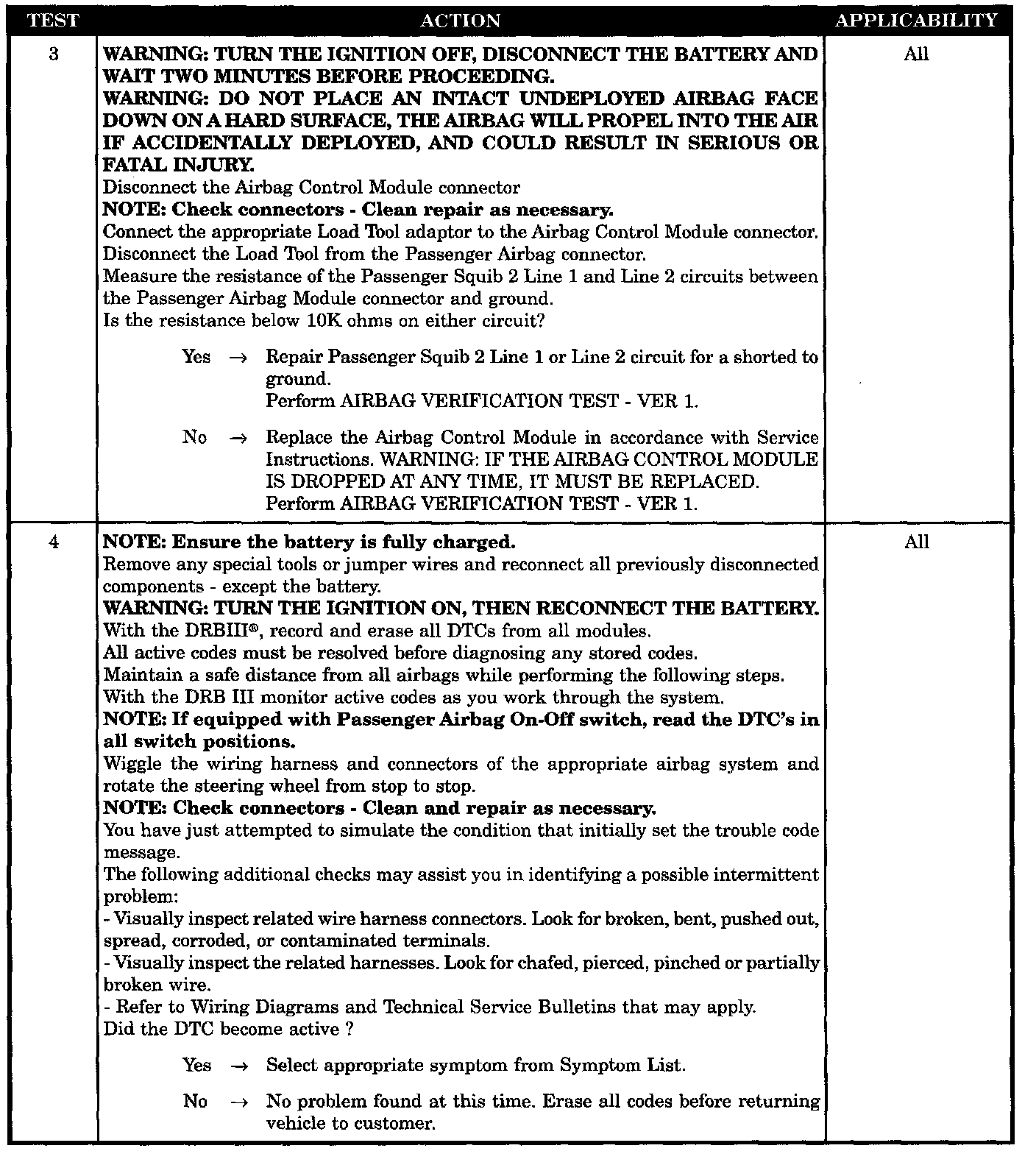

Test 3 - 4:

SYMPTOM
PASSENGER SQUIB 2 SHORT TO GROUND

WHEN MONITORED
When the ignition is on, the ACM monitors the resistance of the Passenger Squib 2 circuits for low resistance.

SET CONDITION
The ACM has detected a short to ground in the Passenger Squib 2 circuits.

POSSIBLE CAUSES
- Passenger airbag circuit shorted to ground
- Passenger squib 2 line 1 or line 2 short to ground
- ACM, passenger squib 2 circuit short to ground
- Stored code or intermittent condition
- Active code present
