Passenger Squib 2 Circuit Shorted

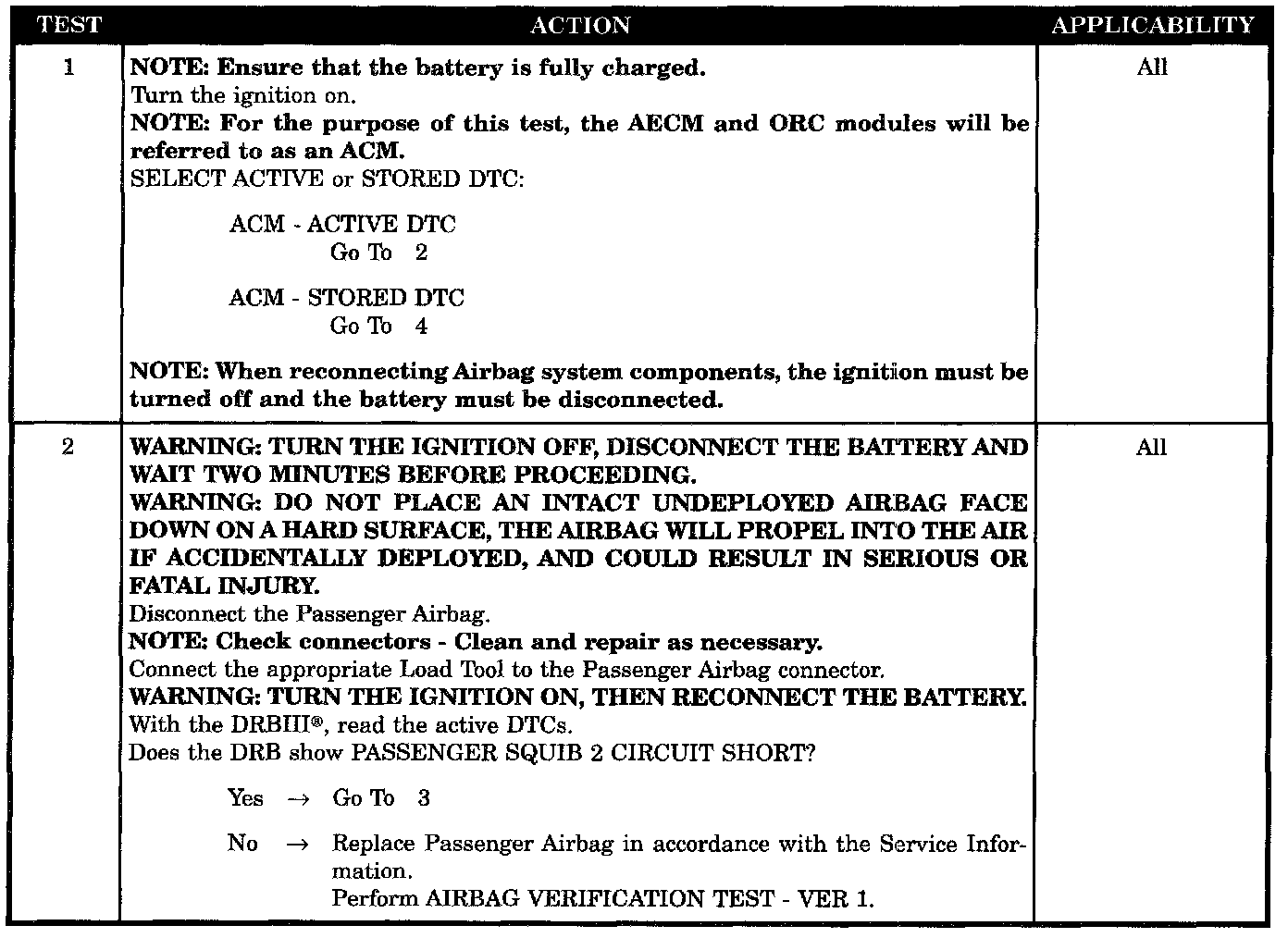

Test 1 - 2:

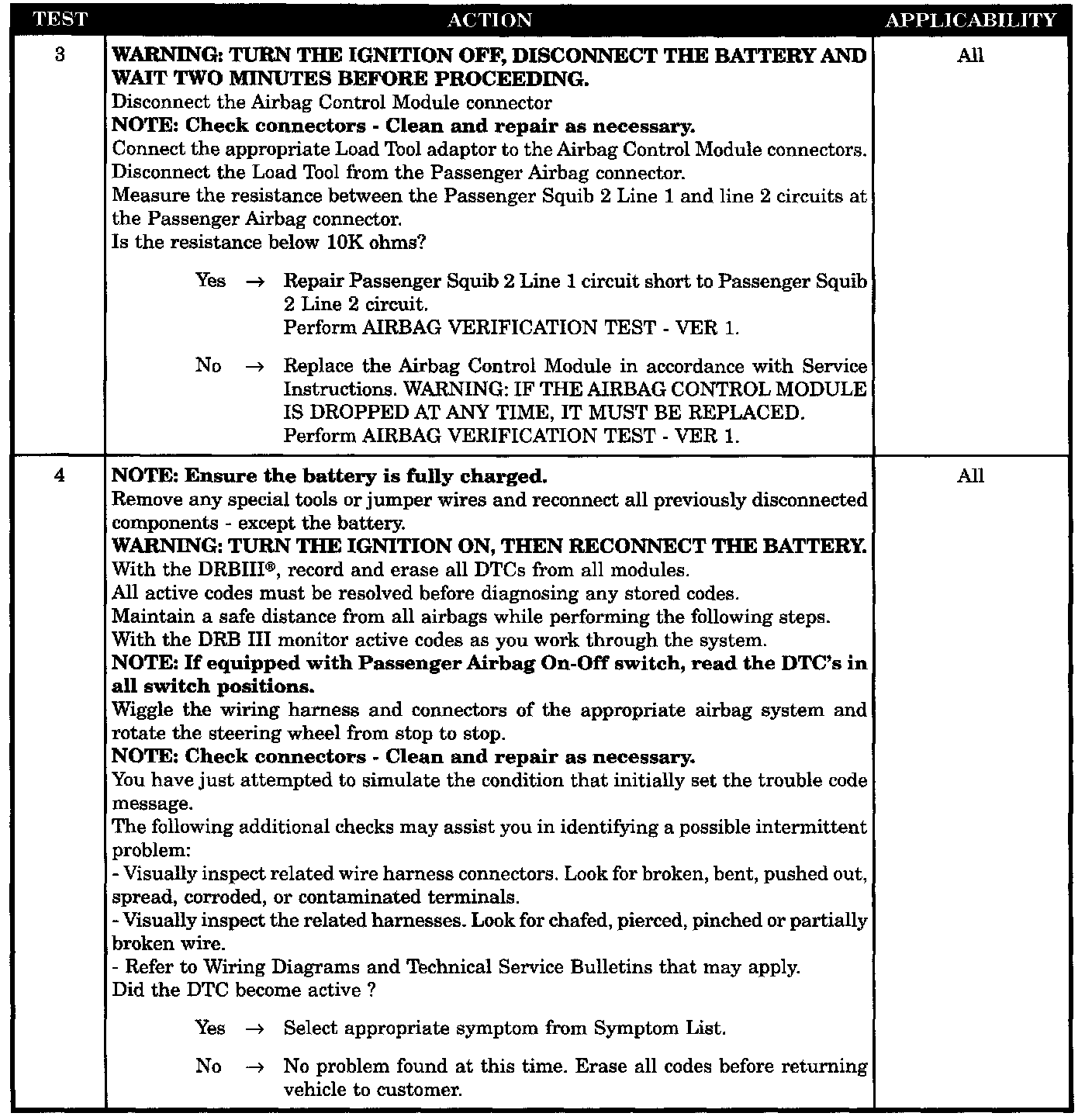

Test 3 - 4:

SYMPTOM
PASSENGER SQUIB 2 CIRCUIT SHORT

WHEN MONITORED
When the ignition is on, the ACM monitors the resistance of the Passenger Squib 2 circuits.

SET CONDITION
The ACM has detected low resistance in the Passenger Squib 2 circuits.

POSSIBLE CAUSES
- Passenger airbag circuit short
- Passenger squib 1 line 1 short to line 2
- Stored code or intermittent condition
- ACM, passenger squib 2 circuit short
- Active code present
