Passenger Squib 1 Shorted to Ground

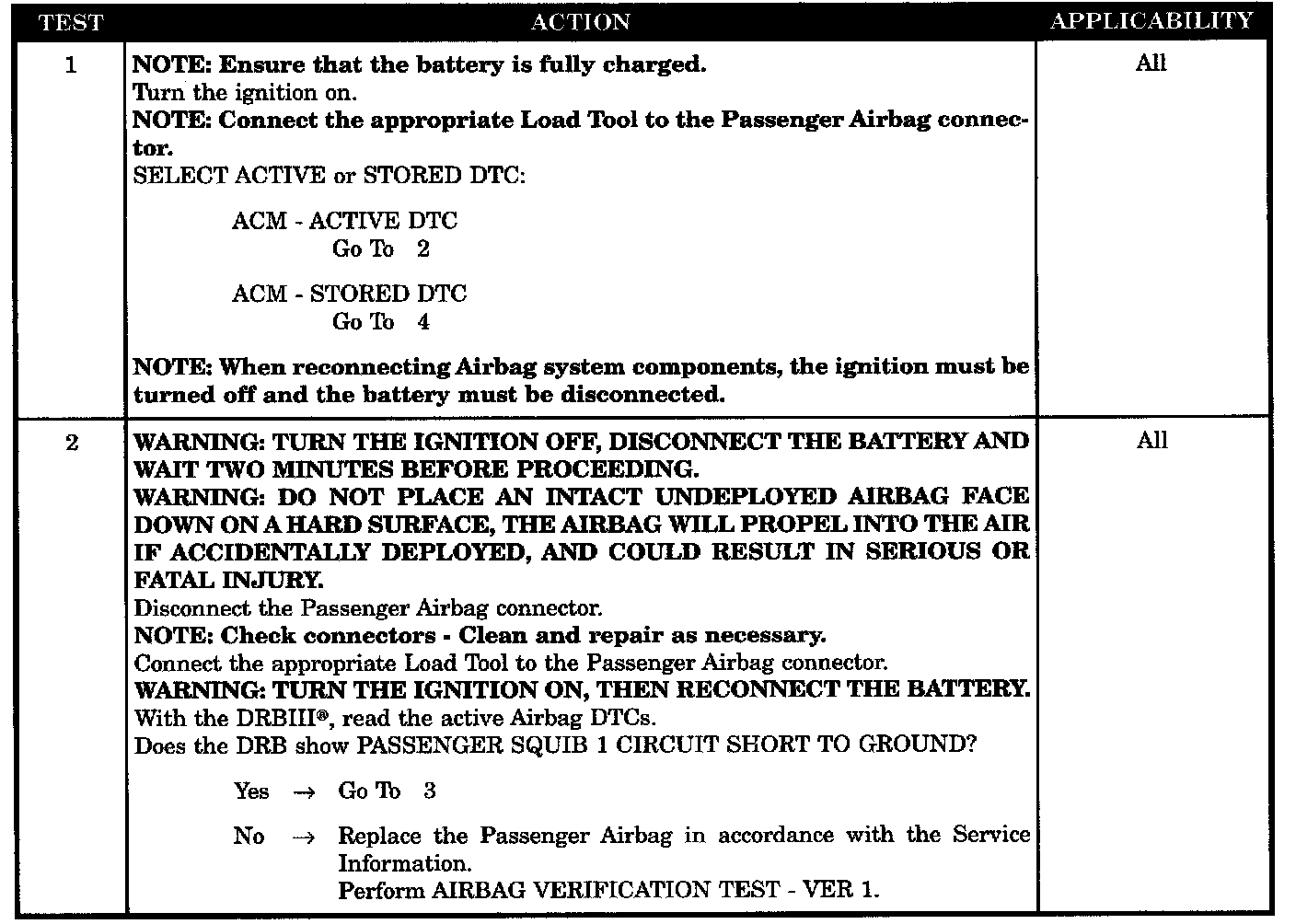

Test 1 - 2:

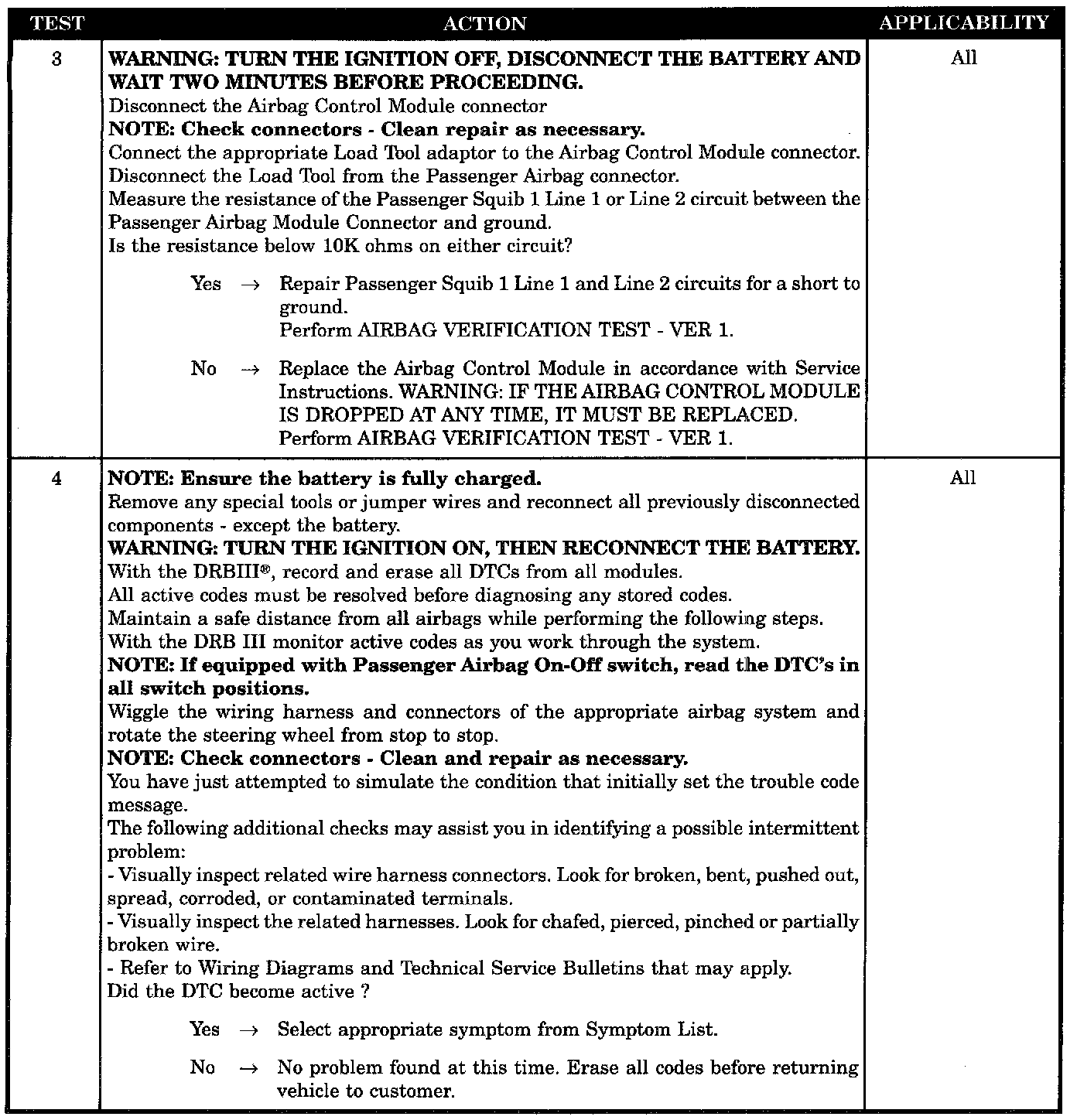

Test 3 - 4:

SYMPTOM
PASSENGER SQUIB 1SHORT TO GROUND

WHEN MONITORED
When the ignition is on, the ACM monitors the resistance of the Passenger Squib 1 circuits for low resistance.

SET CONDITION
The ACM has detected a short to ground in the Passenger Squib 1 circuits.

POSSIBLE CAUSES
- Passenger airbag circuit short to ground
- passenger squib 1 line 1 and line 2 short to ground
- Stored code or intermittent condition
- ACM, passenger squib 1 circuit short to ground
- Active code present
