Passenger Seat Belt Tensioner Shorted to Ground

Test 1 - 2:

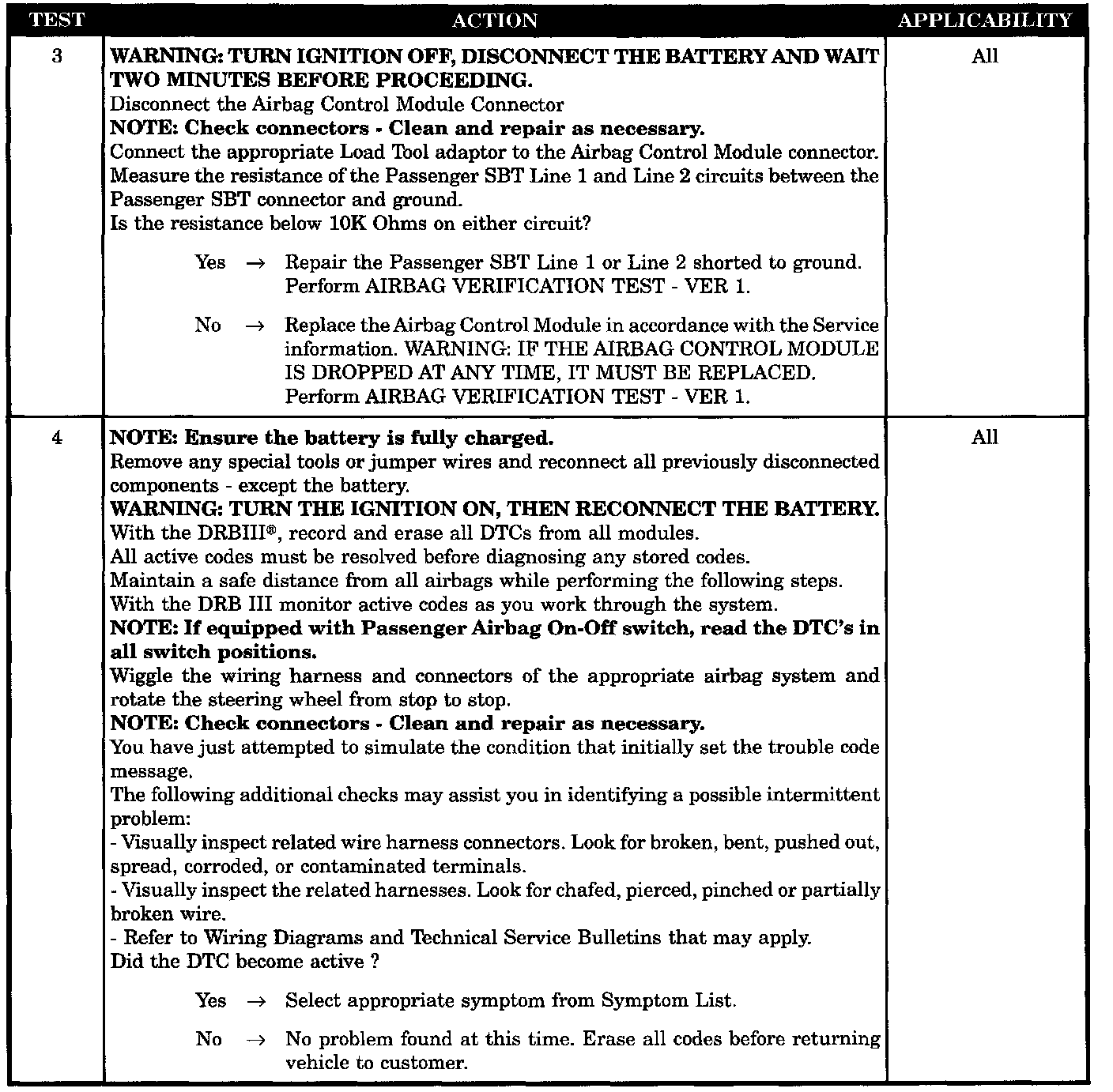

Test 3 - 4:

SYMPTOM
PASSENGER SEAT BELT TENSIONER SHORT TO GROUND

WHEN MONITORED
When the ignition is on, the ACM monitors the voltage of the Passenger Seat Belt Tensioner circuits.

SET CONDITION
The ACM has detected a short to ground in the Passenger Seat Belt Tensioner circuits.

POSSIBLE CAUSES
- PAS seat belt tensioner short to ground
- Passenger seat belt tensioner line 1 or line 2 shorted to ground
- ACM, passenger SBT short to ground
- Stored code or intermittent condition
- Active code present
