Passenger Seat Belt Tensioner Shorted to Battery

Test 1 - 2:

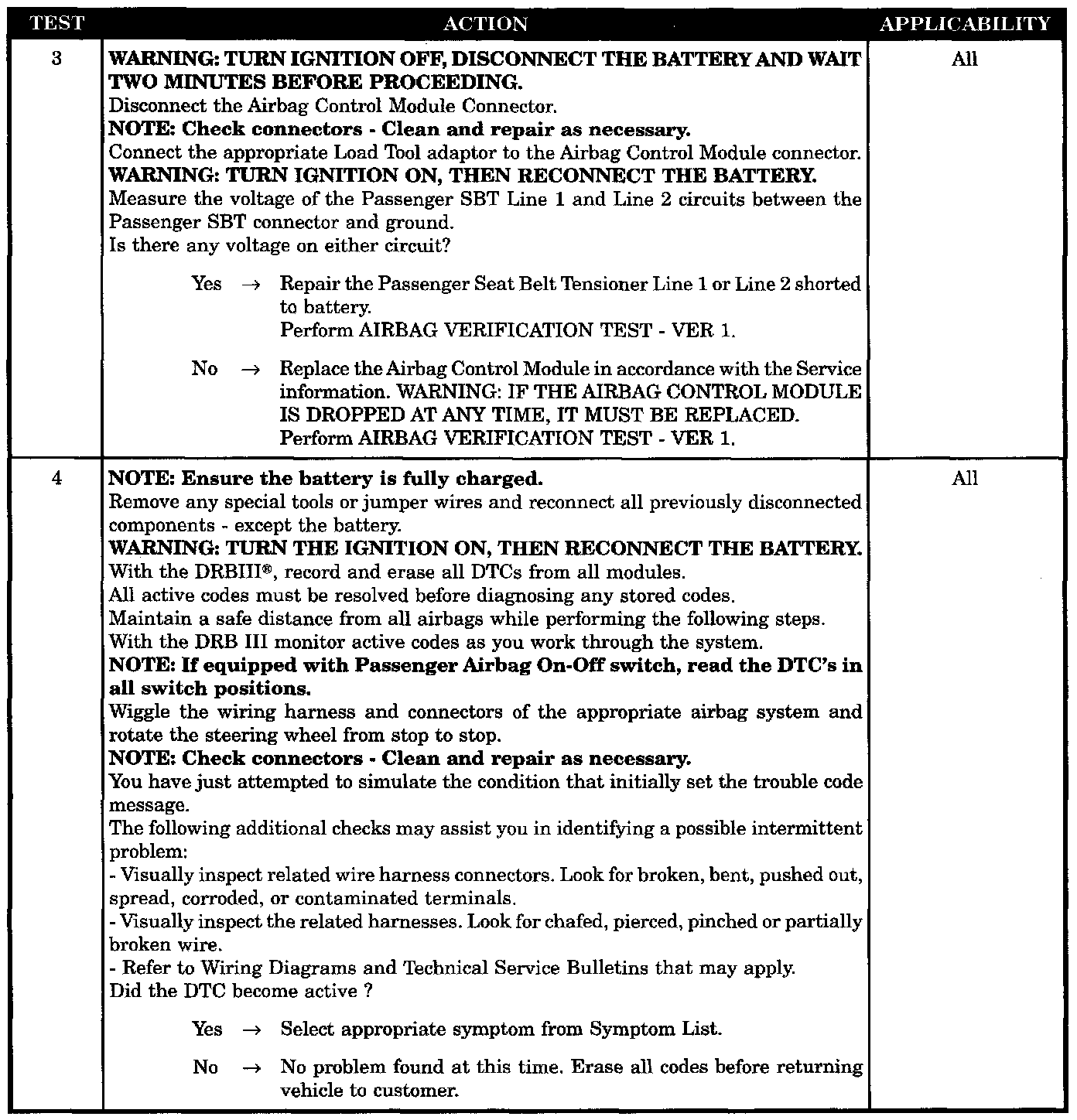

Test 3 - 4:

SYMPTOM
PASSENGER SEAT BELT TENSIONER SHORT TO BATTERY

WHEN MONITORED
When the ignition is on, the ACM monitors the voltage of the Passenger Seat Belt Tensioner circuits.

SET CONDITION
The ACM has detected high voltage on the Passenger Seat Belt Tensioner circuits.

POSSIBLE CAUSES
- Passenger SBT circuits short to battery
- Passenger seat belt tensioner line 1 or line 2 shorted to battery
- ACM, passenger SBT short to battery
- Stored code or intermittent condition
- Active code present
