Passenger Seat Belt Tensioner Circuit Shorted

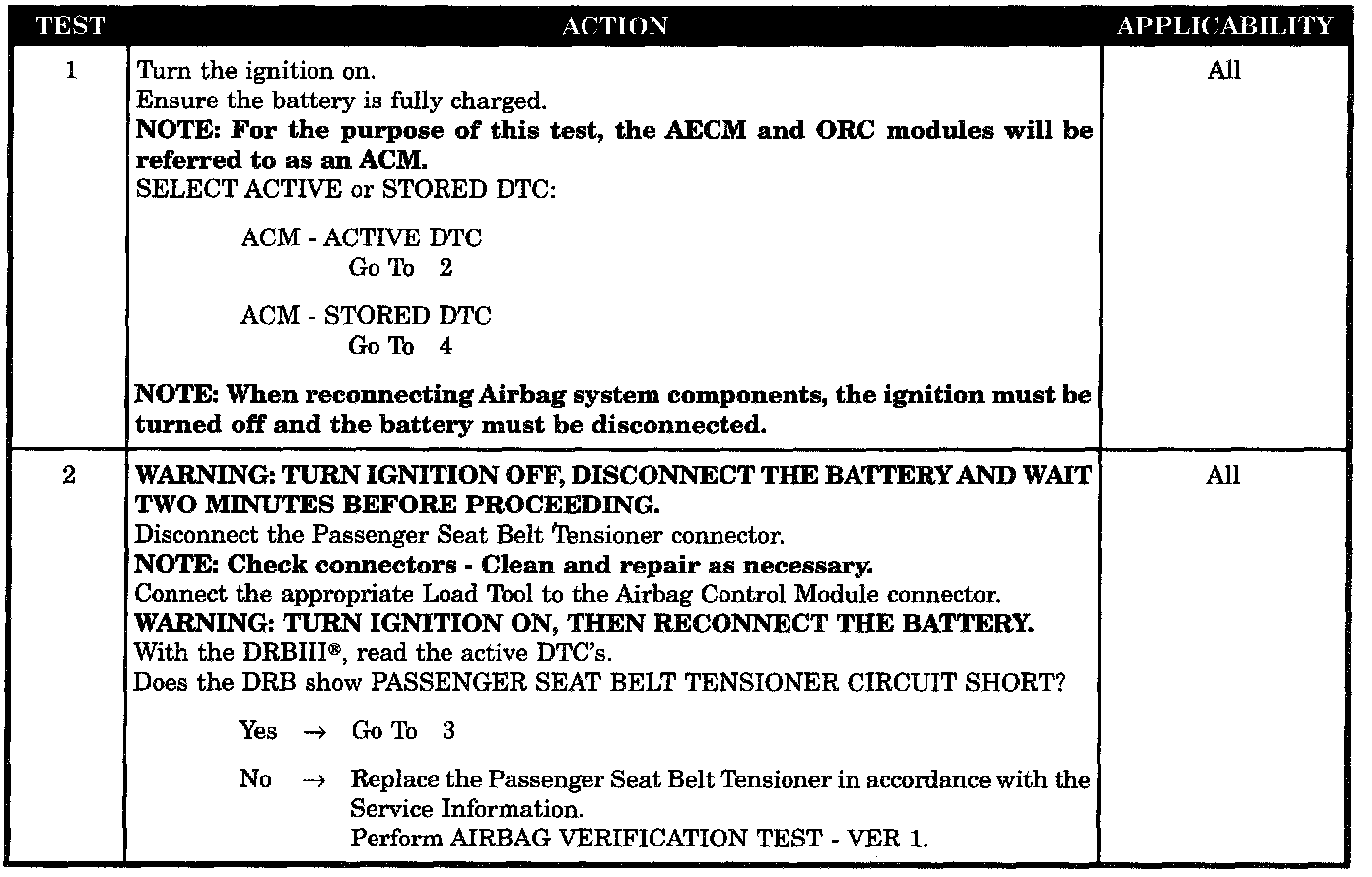

Test 1 - 2:

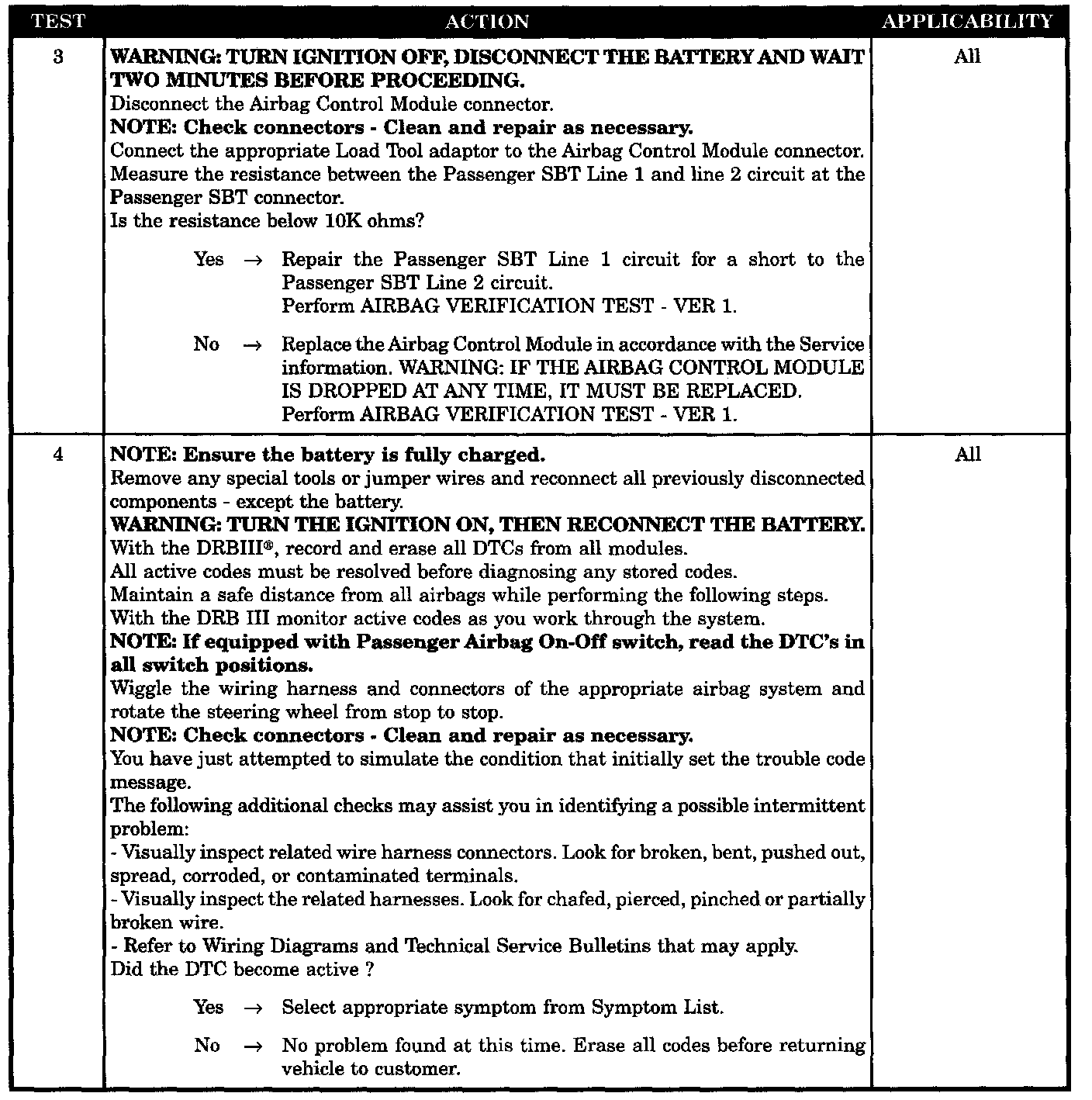

Test 3 - 4:

SYMPTOM
PASSENGER SEAT BELT TENSIONER CIRCUIT SHORT

WHEN MONITORED
When the ignition is on, the ACM monitors the resistance of the Passenger Seat Belt Tensioner circuits.

SET CONDITION
The ACM has detected low resistance in the Passenger Seat Belt Tensioner circuits.

POSSIBLE CAUSES
- Passenger seat belt tensioner line 1 short to line 2
- Passenger seat belt tensioner circuits short
- ACM, passenger seat belt tensioner circuit short
- Stored code or intermittent condition
- Active code present
