No Right SIACM Messages

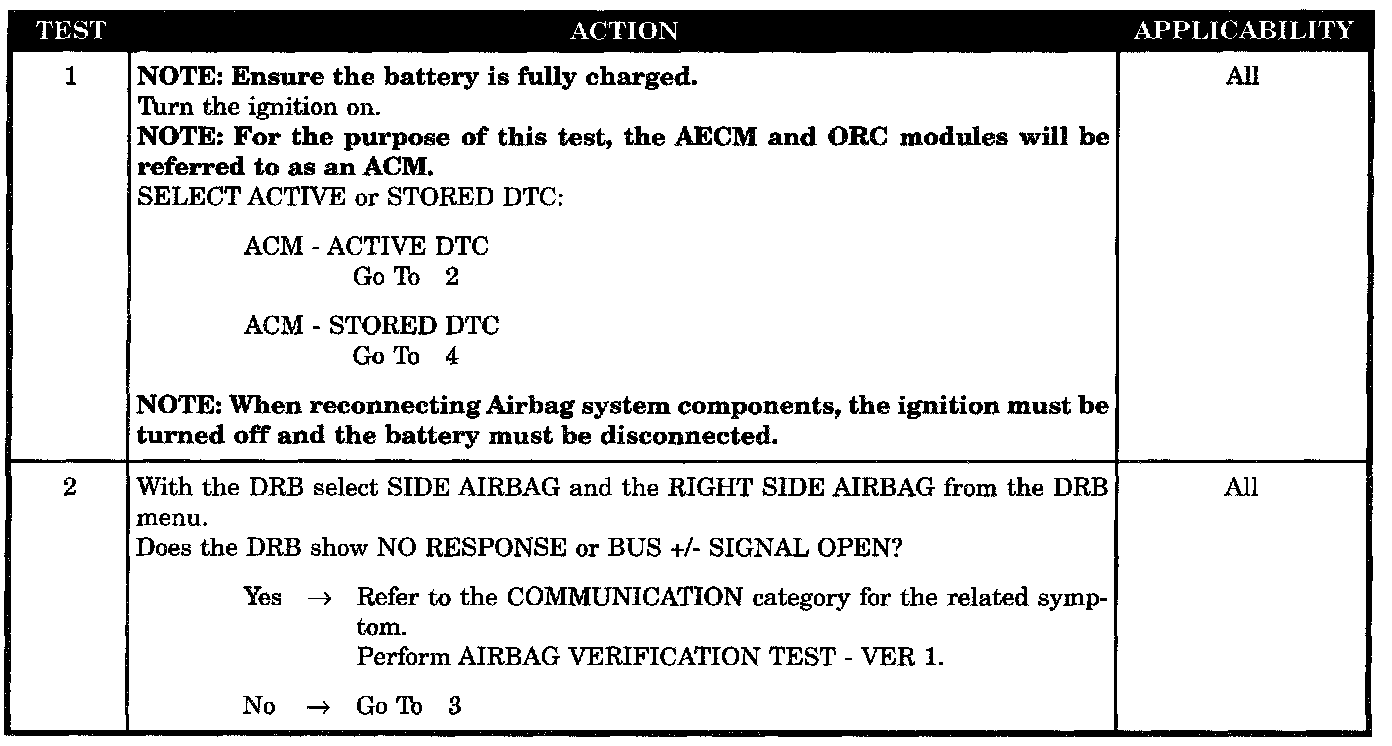

Test 1 - 2:

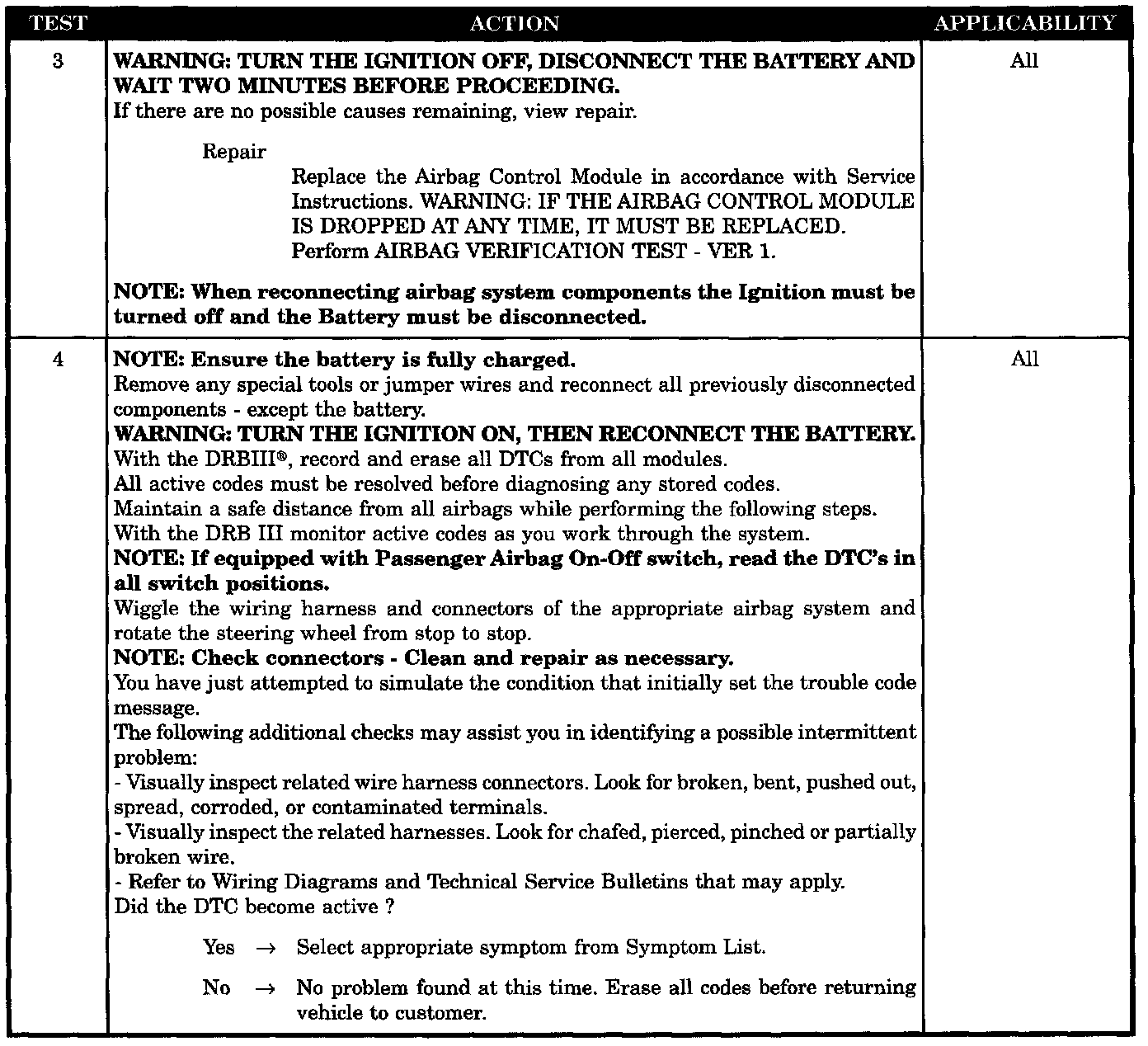

Test 3 - 4:

SYMPTOM
NO RIGHT SIACM MESSAGE

WHEN MONITORED
With ignition on, the ACM monitors the PCI Bus for the Right Side Impact Airbag Control Module status message. The Right SIACM transmits the status message to the ACM at 1 - second intervals.

SET CONDITION
If the ACM fails to see the Right SIACM status message on the PCI Bus for 10 seconds the code will set.

POSSIBLE CAUSES
- No right SIACM message
- ACM, no right SIACM message
- Stored code or intermittent condition
- Active code present
