Loss of Ignition Run - Start

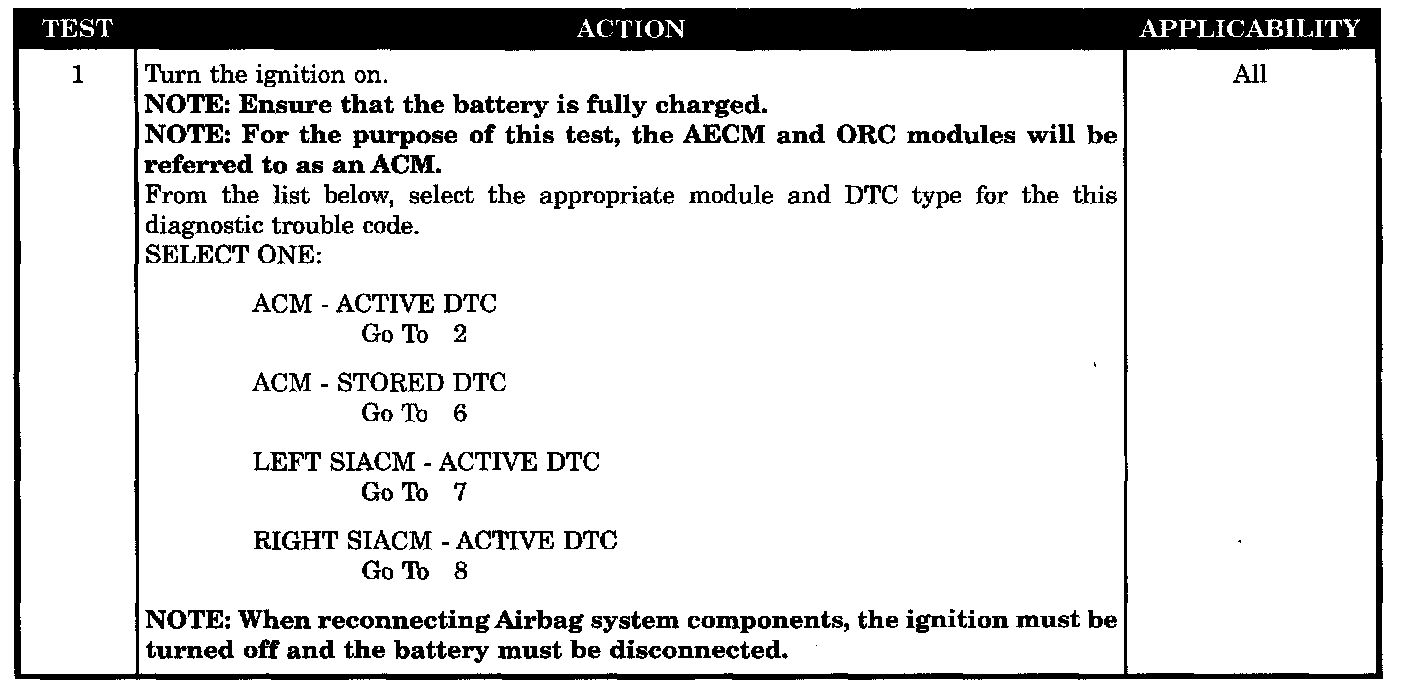

Test 1:

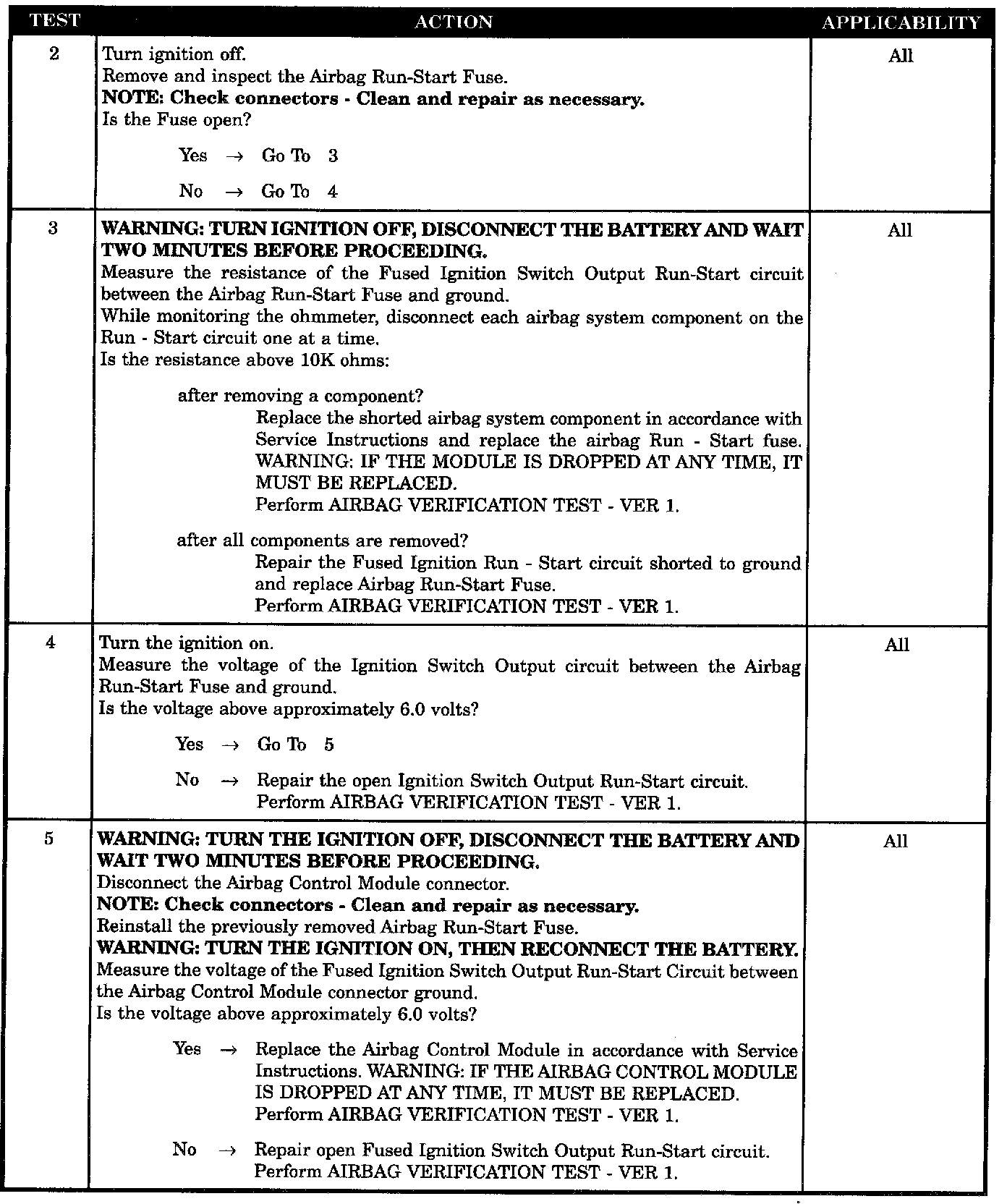

Test 2 - 5:

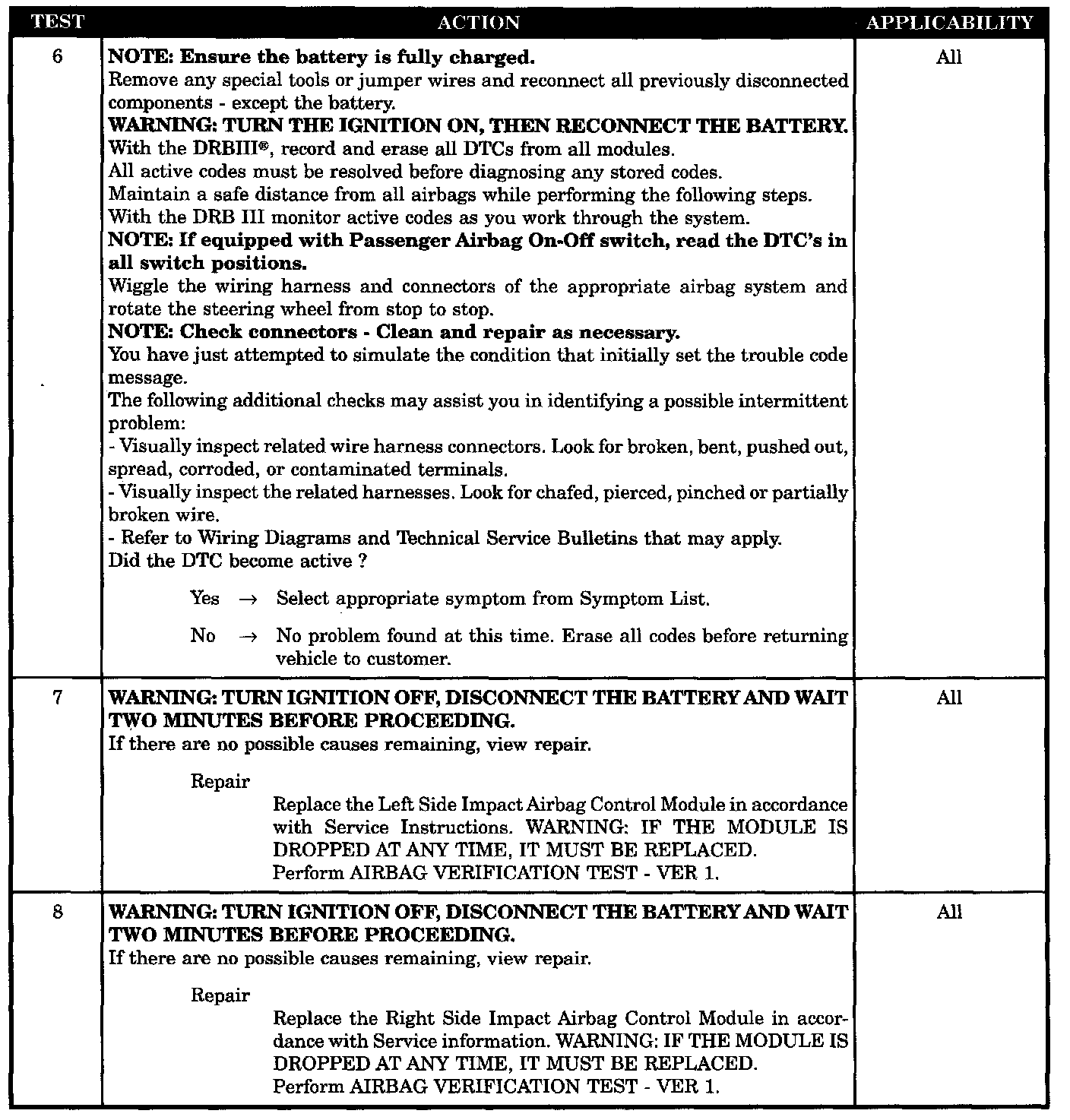

Test 6 - 8:

SYMPTOM
LOSS OF IGNITION RUN - START

WHEN MONITORED
With the ignition in the Run or Start position the module monitors the Run - Start circuit for proper system voltage.

SET CONDITION
The code will set, if the voltage on the Run - Start circuit drops below approximately 6.0 volts for the ACM or 6.7 volts for the SIACM.

POSSIBLE CAUSES
- Airbag system component shorted to ground
- Ignition switch run-start circuit open
- Fused ignition switch output run-start circuit open
- ACM, fused ignition output run-start circuit open
- Module run - start shorted to ground
- RSIACM, low ignition run - start voltage
- LSIACM - low ignition run - start voltage
- Stored code or intermittent condition
- Active code present
