Driver Squib 2 Circuit Open

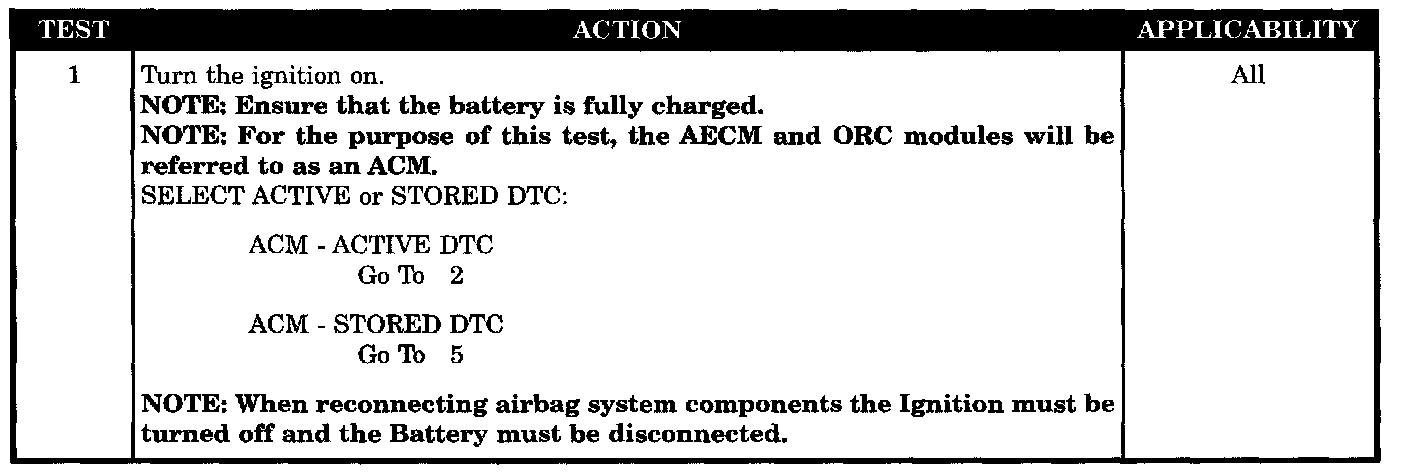

Test 1:

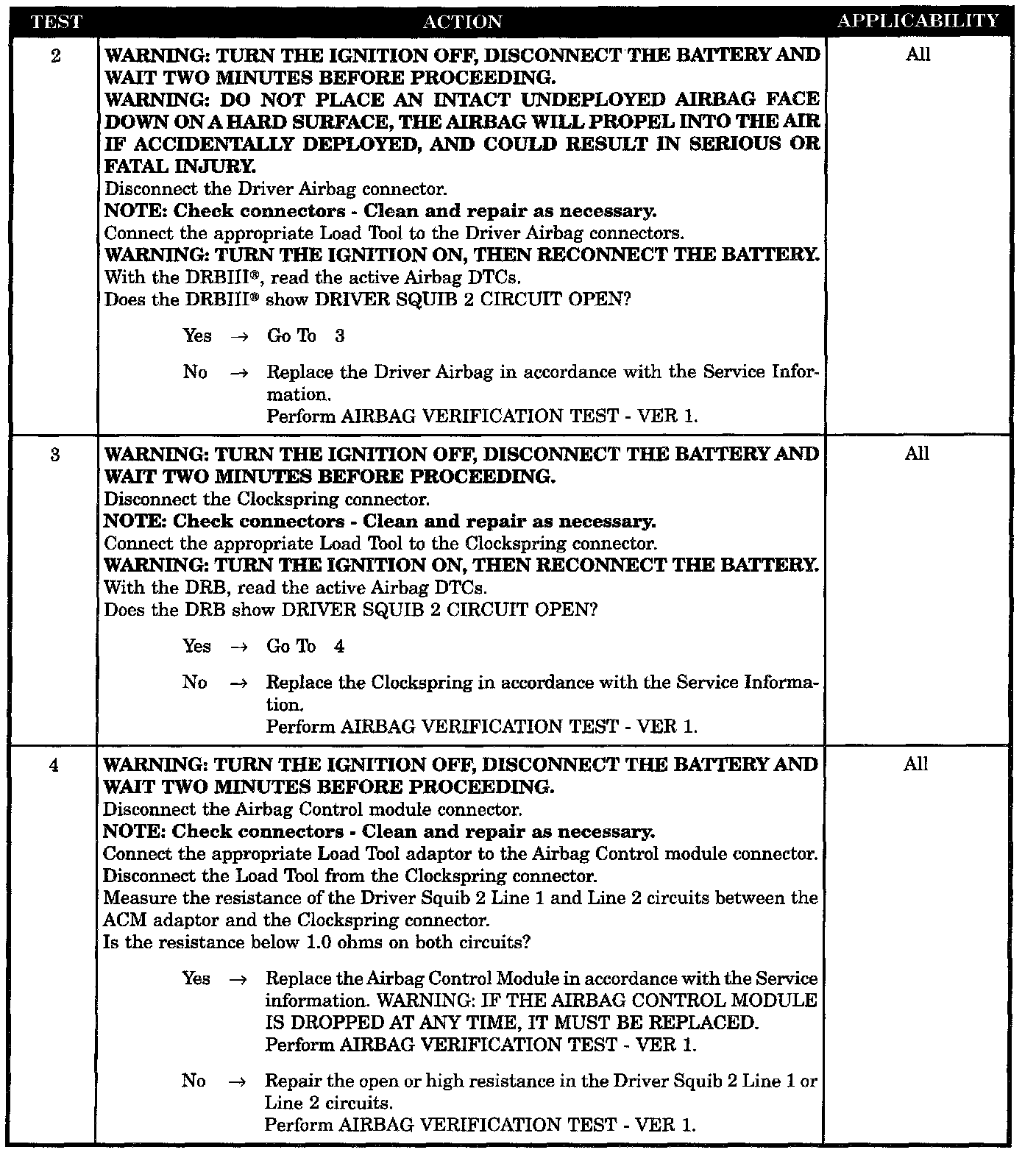

Test 2 - 4:

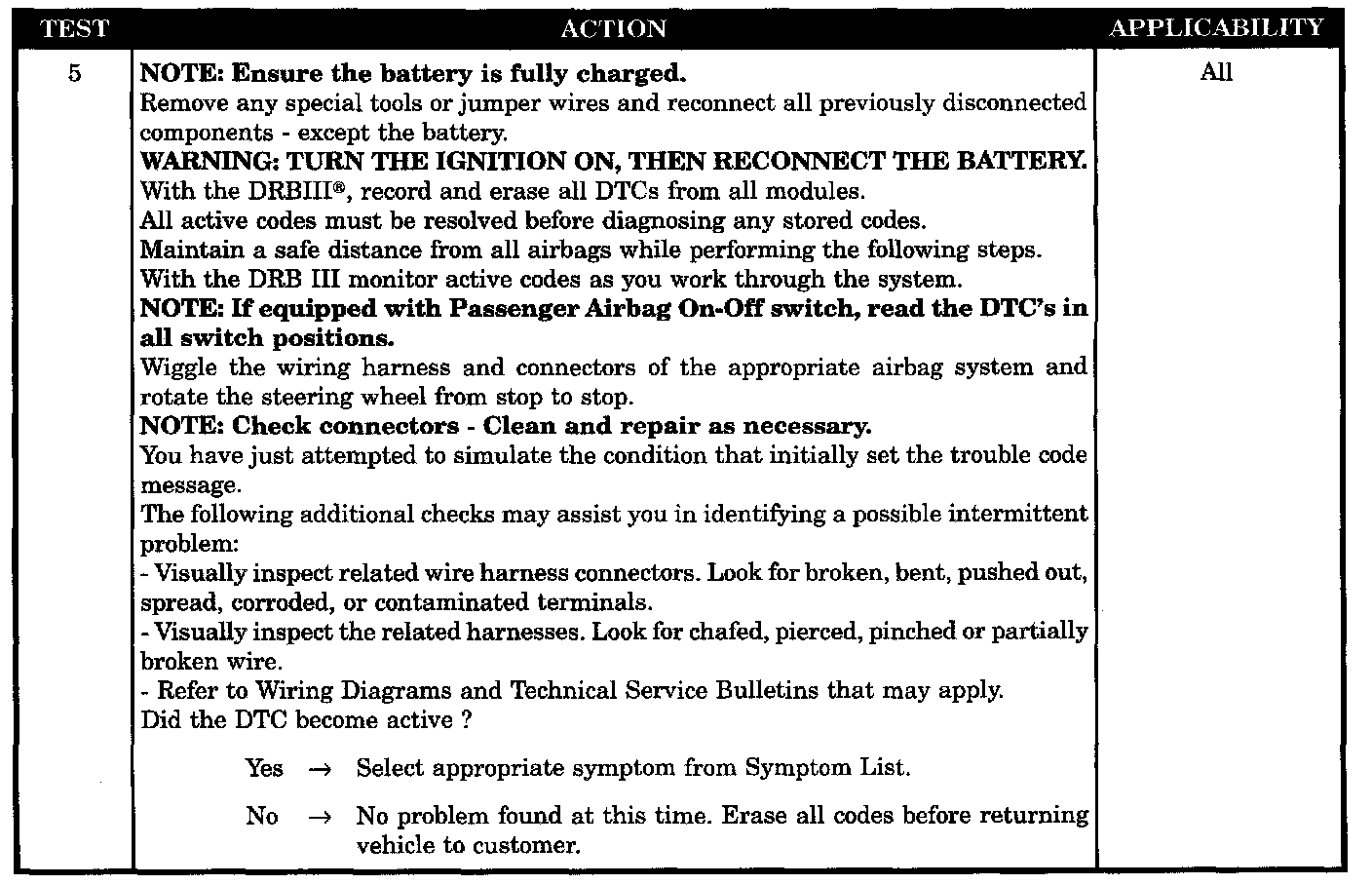

Test 5:

SYMPTOM
DRIVER SQUIB 2 CIRCUIT OPEN

WHEN MONITORED
With the ignition on the ACM monitors the resistance of the Driver Squib 2 circuits.

SET CONDITION
The ACM has detected an open circuit or high resistance in the Driver Squib 2 circuits.

POSSIBLE CAUSES
- Driver airbag circuit open
- Clockspring, driver squib 2 circuit open
- Driver squib 2 line 1 or line 2 circuit open
- ACM, driver squib 2 circuit open
- Stored code or intermittent condition
- Active code present
