Driver Seat Belt Tensioner Shorted to Ground

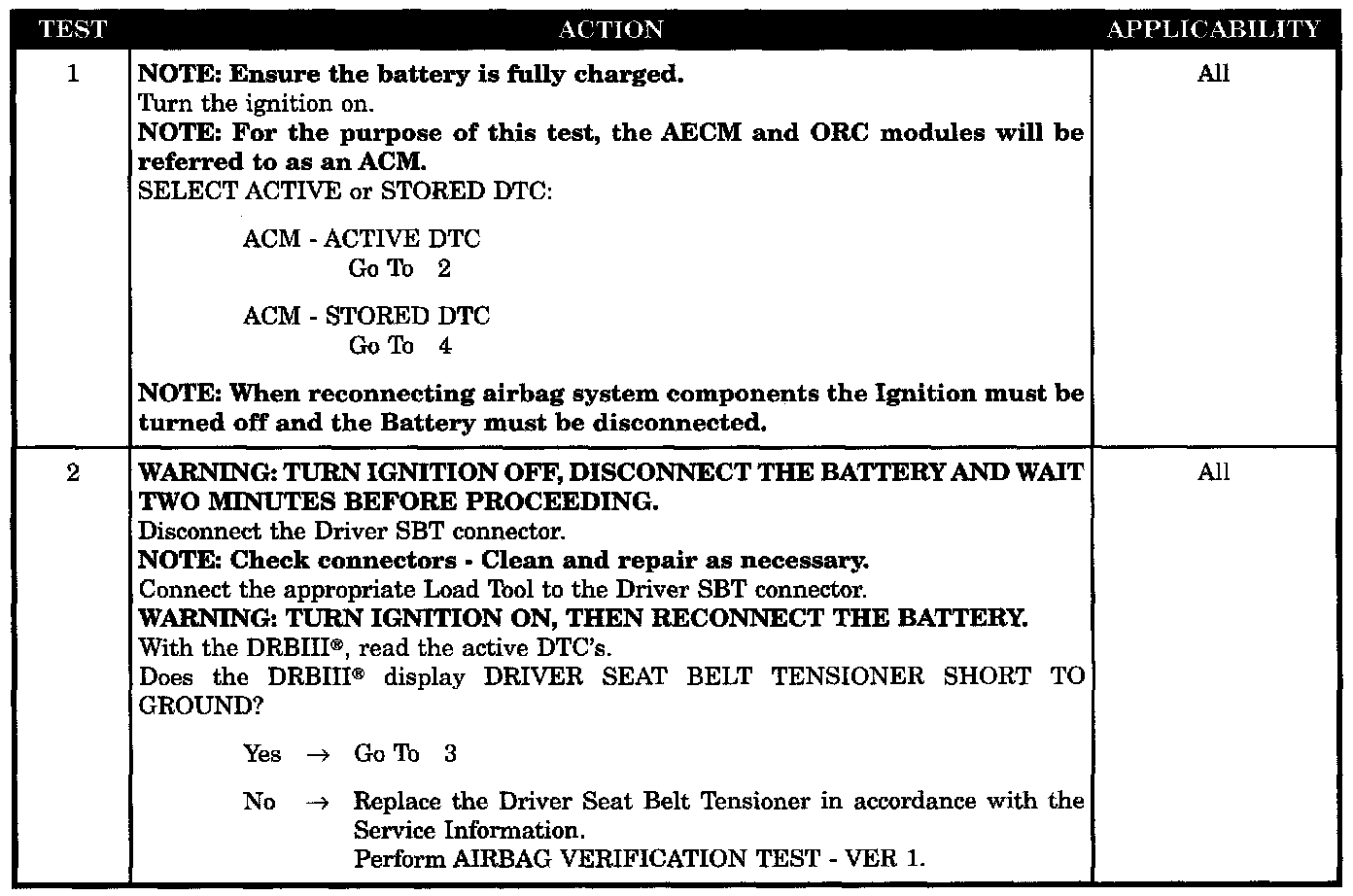

Test 1 - 2:

Test 3 - 4:

SYMPTOM
DRIVER SEAT BELT TENSIONER SHORT TO GROUND

WHEN MONITORED
With the ignition on the ACM monitors the voltage of the Driver Seat Belt Tensioner circuits.

SET CONDITION
The ACM has detected a short to ground in the Driver Seat Belt Tensioner circuits.

POSSIBLE CAUSES
- Driver seat belt tensioner short to ground
- Driver seat belt line 1 or line 2 short to ground
- ACM, driver seat belt tensioner circuits short to ground
- Stored code or intermittent condition
- Active code present
