Driver Seat Belt Tensioner Shorted to Battery

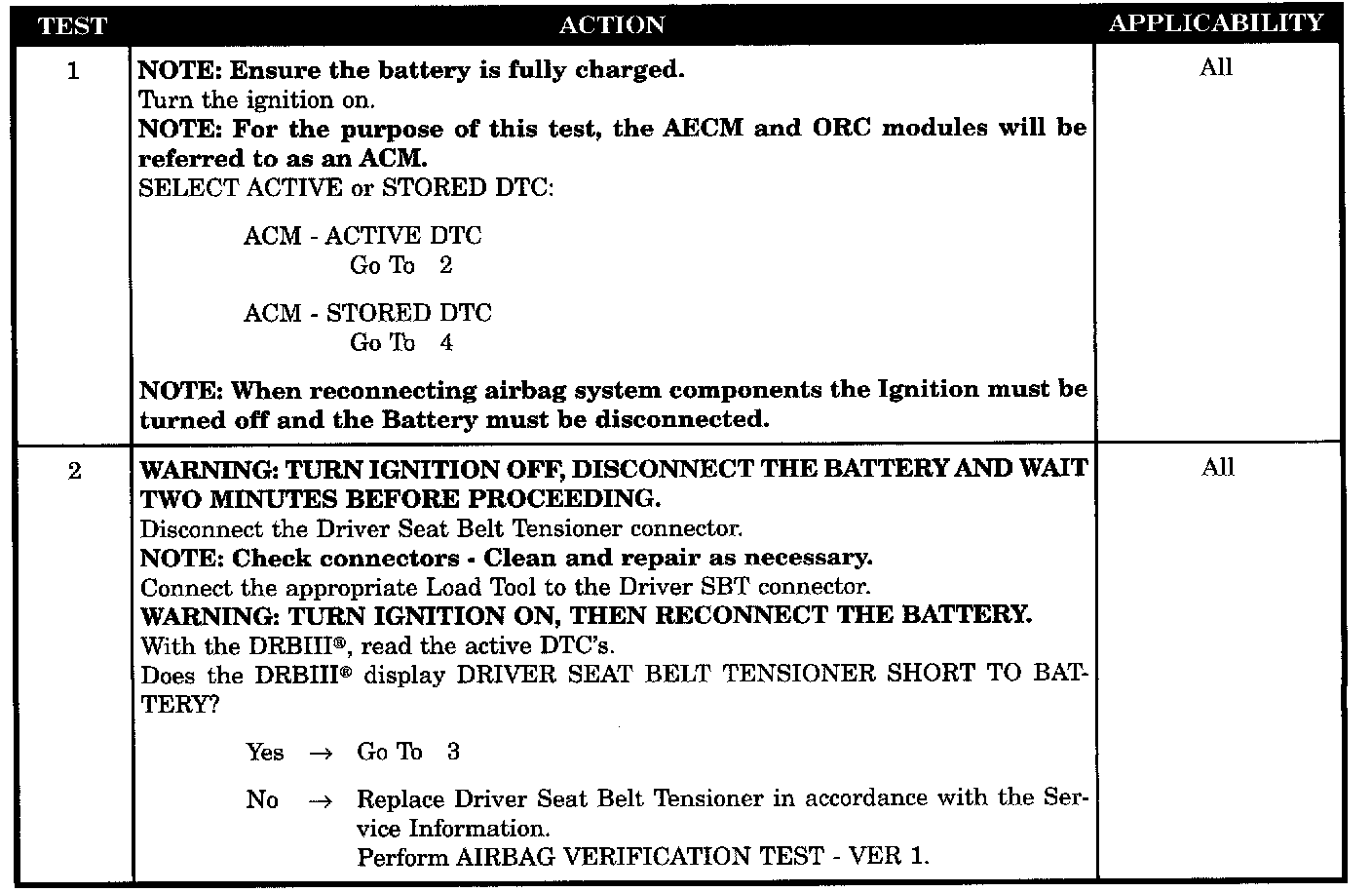

Test 1 - 2:

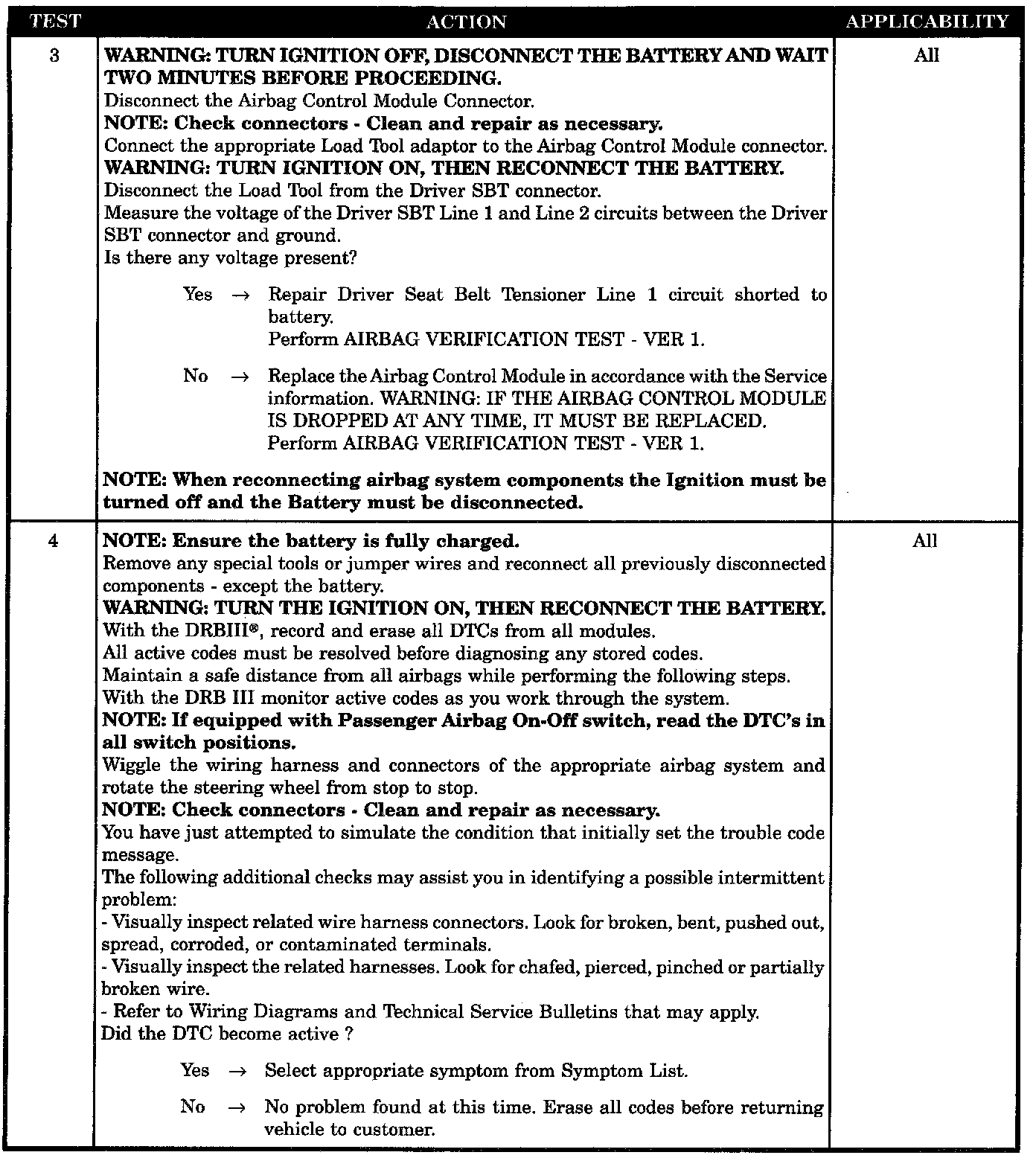

Test 3 - 4:

SYMPTOM
DRIVER SEAT BELT TENSIONER SHORT TO BATTERY

WHEN MONITORED
With the ignition on the ACM monitors the voltage of the Driver Seat Belt Tensioner circuits.

SET CONDITION
The ACM has detected high voltage on the Driver Seat Belt Tensioner circuits.

POSSIBLE CAUSES
- Driver seat belt tensioner short to battery
- Driver SBT line 1 short to battery
- ACM, driver seat belt tensioner circuits short to battery
- Stored code or intermittent condition
- Active code present
