Driver Seat Belt Tensioner Circuit Open

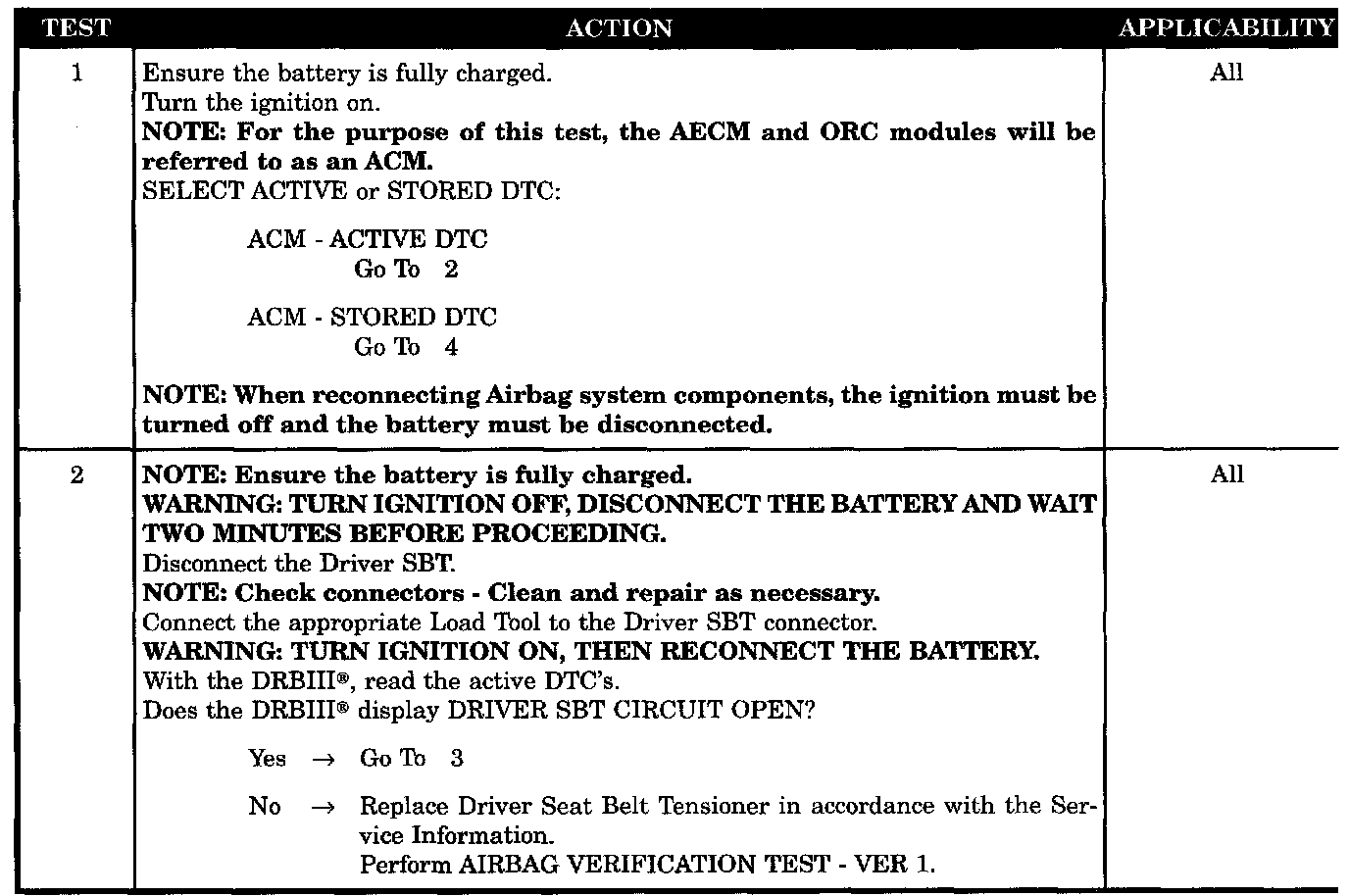

Test 1 - 2:

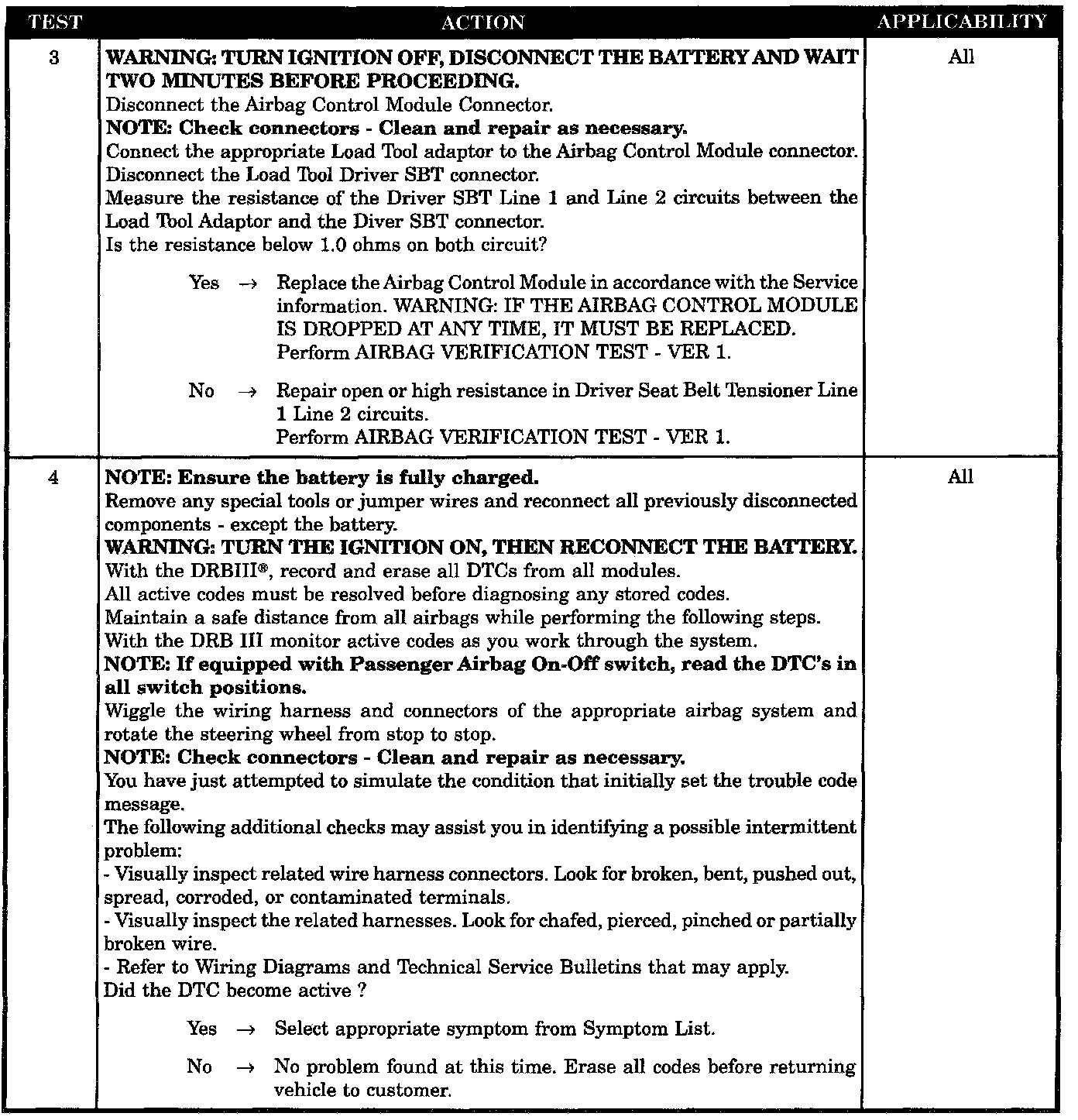

Test 3 - 4:

SYMPTOM
DRIVER SEAT BELT TENSIONER CIRCUIT OPEN

WHEN MONITORED
With the ignition on the ACM monitors the resistance of the Driver Seat Belt Tensioner circuits.

SET CONDITION
The ACM has detected an open circuit or high resistance on the Driver Seat Belt Tensioner circuits.

POSSIBLE CAUSES
- Driver SBT circuits open
- Driver seat belt tensioner line 1 or line 2 circuits open
- ACM, driver seat belt tensioner circuits open
- Stored code or intermittent condition
- Active code present
