Curtain Squib Shorted to Battery

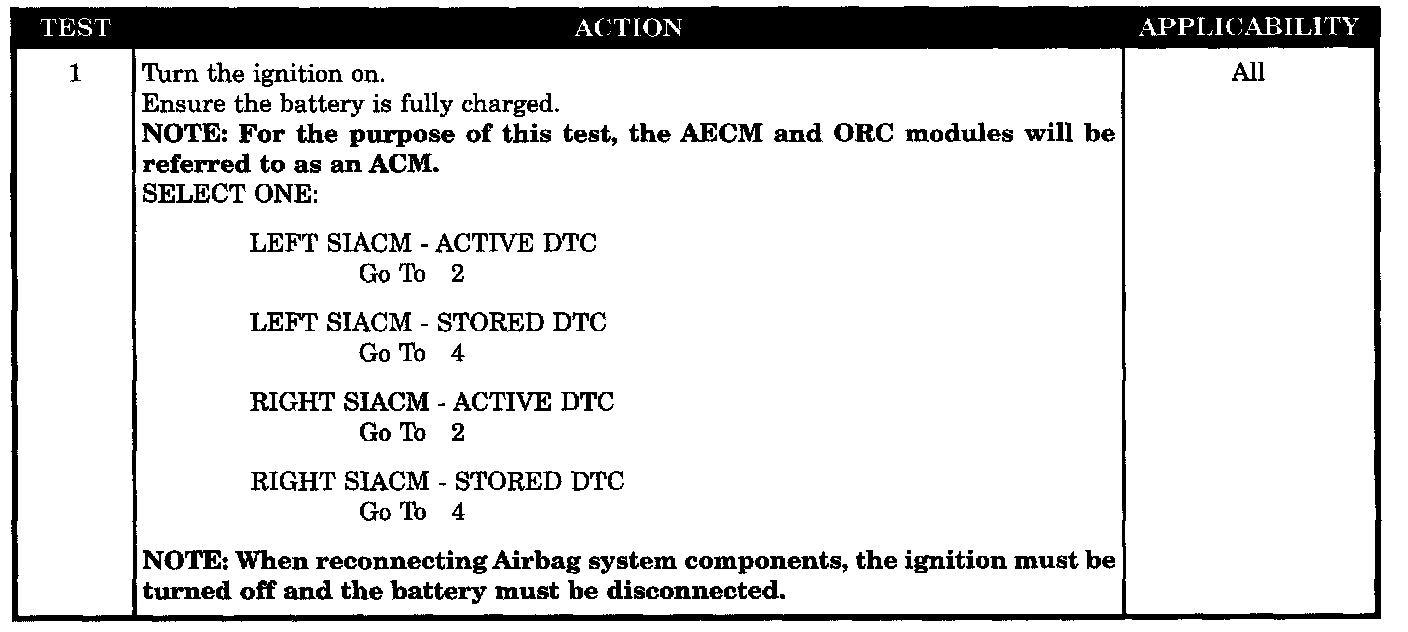

Test 1:

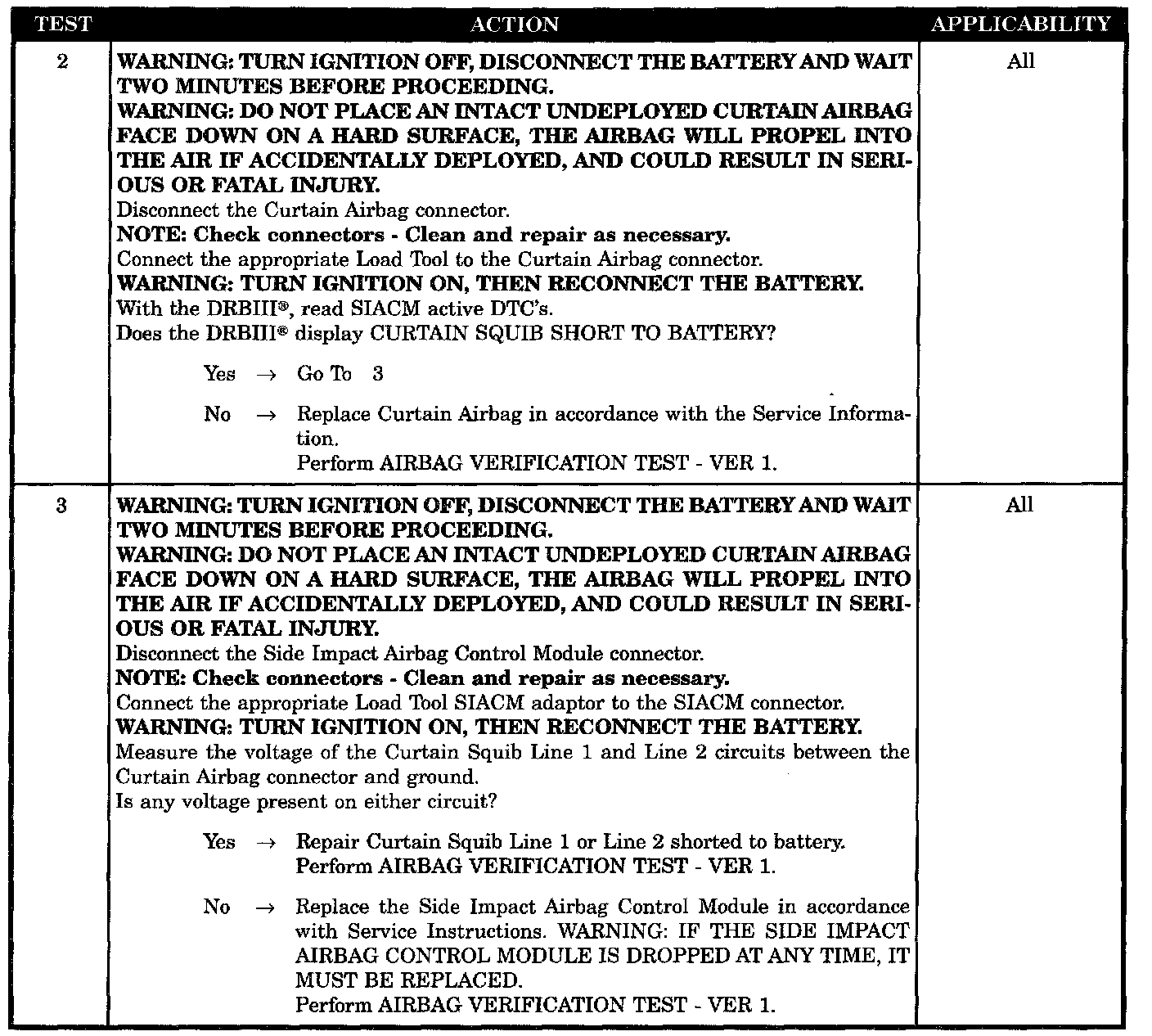

Test 2 - 3:

Test 4:

SYMPTOM
CURTAIN SQUIB SHORT TO BATTERY

WHEN MONITORED
When the ignition is on, the SIACM monitors the voltage of the Curtain Squib circuits.

SET CONDITION
When the SIACM detects high voltage on the Curtain Squib circuits.

POSSIBLE CAUSES
- Curtain airbag short to battery
- Curtain squib line 1 or line 2 shorted to battery
- SIACM, curtain squib short to battery
- Stored code or intermittent condition
- Active code present
