Configuration Error

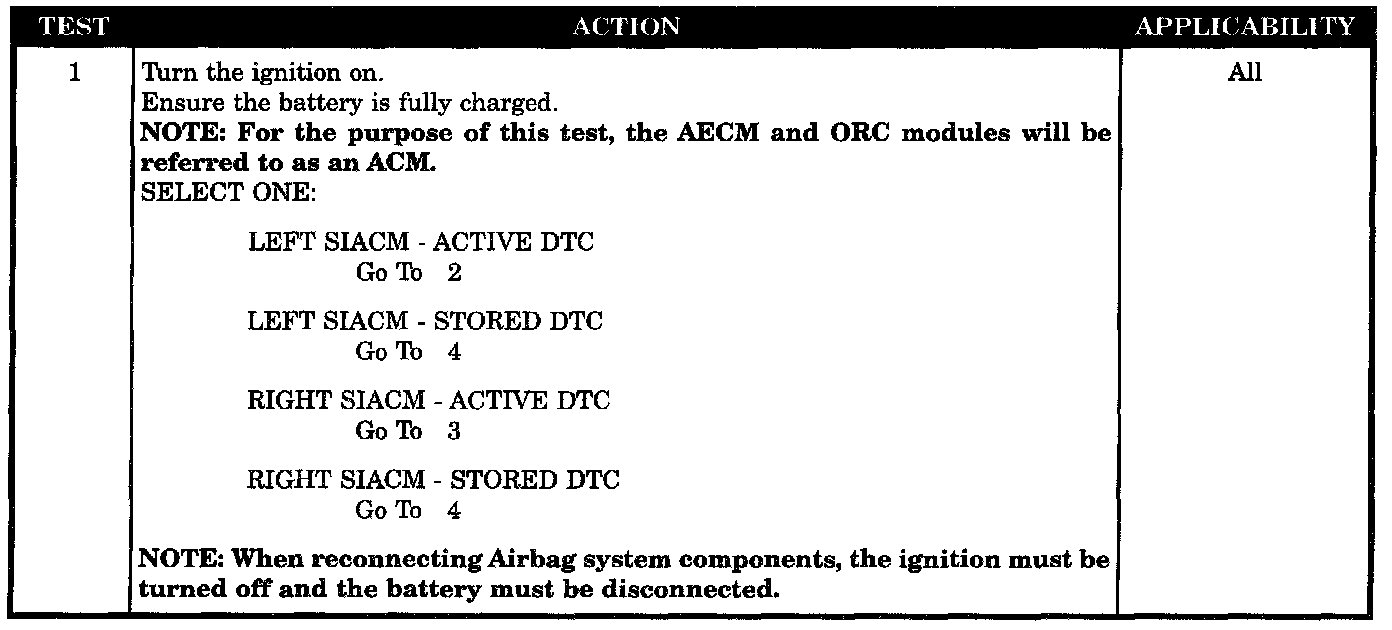

Test 1:

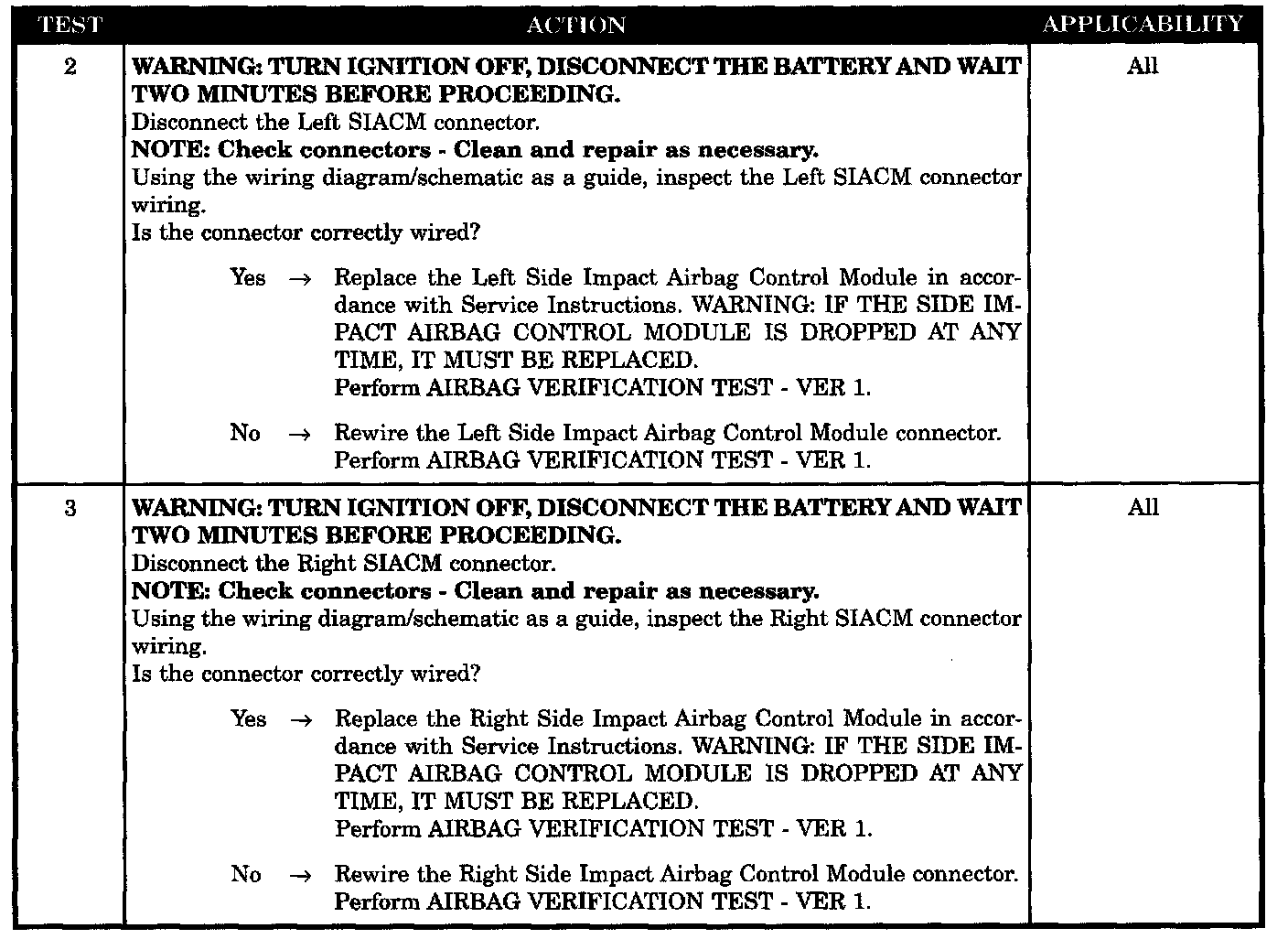

Test 2 - 3:

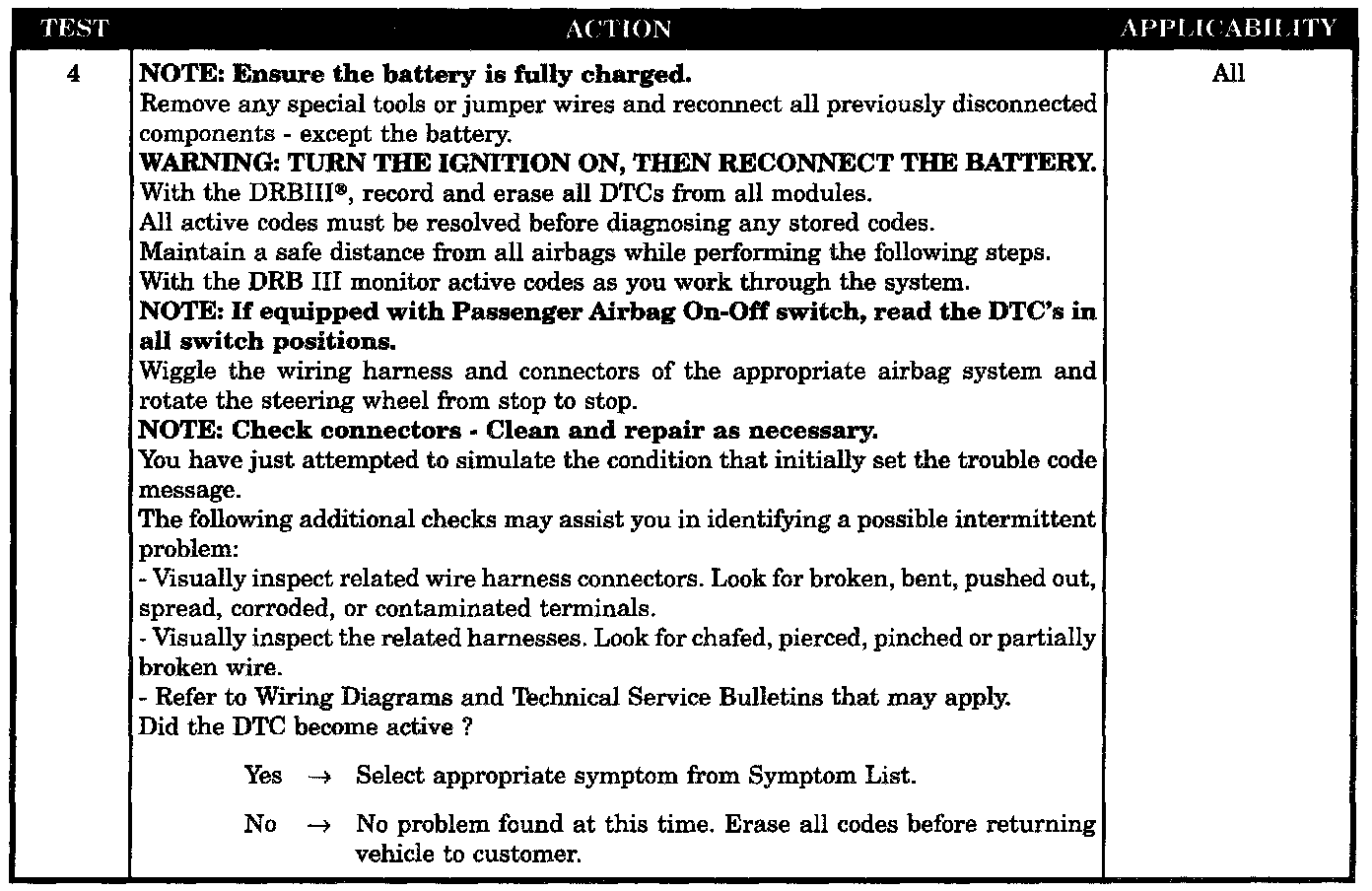

Test 4:

SYMPTOM
CONFIGURATION ERROR

WHEN MONITORED
With ignition on the Side Impact Airbag Control Module monitors the unused squib terminals for the a valid squib circuit resistance.

SET CONDITION
When the SIACM detects a valid squib circuit resistance across the unused terminals.

POSSIBLE CAUSES
- Select module reporting DTC
- Miss wired left SIACM connector
- Miss wired right SIACM connector
- Left side impact airbag control module - LSIACM
- Right side impact airbag control module - LSIACM
- Stored code or intermittent condition
- Active code present
